4 . Connect structured cables from port marked [Port 1], [Port 2] . . . on NetWaySP board to PoE compliant
cameras/edge devices (Fig. 5-8, pg. 7-8) .
Note: All interconnected devices must be UL Listed .
5 . Insert SFP module into port(s) marked [SFP], then connect cable to the SFP module on NetWaySP board
to the corresponding input of an SFP switch (Fig. 5-8, pg. 7-8) .
6 . Battery Backup (if desired): Connect one (1) 12V LiFePO 4
(Lithium Iron Phosphate) battery to terminals marked [+ BAT –]
(Fig. 3, pg. 5), carefully observing polarity .
Use Altronix BTL125 12V/4 .5AH Lithium Iron Phosphate battery .
Note: When battery is not used, a loss of AC will result in the
loss of output voltage .
CAUTION: Do not use lead acid or gel type batteries .
7 . Please ensure that the cover is secured with security bolt .
Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily
usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates .
P1MM - For use with Multi-Mode Fiber for distances up to 550m .
P1SM10 - For use with Single-Mode Fiber for distances up to 10km .
P1AB2K - For use with Single Strand Single-Mode Fiber for distances up to 2km .
P1GCE - For use with CAT5e or better for distances up to 100m .
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Factory Default Settings

• IP Address: 192 .168 .168 .168
• User Name: admin
• Password: admin
1 . Set the static IP address for the laptop to be used for programming to the same network IP address as the
NetwaySP . The default address of the NetwaySP is 192 .168 .168 .168, E .I . 192 .168 .168 .200 .
2 . Connect one end of the network cable to the network jack on the NetwaySP and the other to the network
connection of the laptop .
3 . Open a browser on the computer and enter "192 .168 .168 .168" into the address bar .
A dialog box Authentication Required will appear requesting both user name and password .
Enter the default values here . Click on the button labeled Log In .
4 . The status page of the NetWaySP will appear . Click on the tab labeled Network Settings .
This will open the Network Setting screen . In this screen the MAC Address of the NetWaySP module
will be found along with the Network Settings and Email Settings .

Network Settings:

In the IP Address Method field select the method that the IP Address for the NetWaySP will be obtained
(STATIC or DHCP), then follow the appropriate steps .

Static:

A . IP Address: Enter the IP address assigned to the NetWaySP by the network administrator .
B . Subnet Mask: Enter the Subnet of the network .
C . Gateway: Enter the TCP/IP gateway of the network access point (router) being used .
Gateway configuration is required to properly receive emails from the device .
D . HTTP Port: Enter the HTTP port number assigned to the NetWaySP module by the network
administrator to allow remote access and monitoring . The default inbound port setting is 80 . HTTP is not
encrypted and unsecure . Even though HTTP can be used for remote access, it is recommended primarily
for use with LAN connections .
E . HTTPS Port: Enter the HTTPS port number assigned to the NetWaySP module by the network
administrator to allow remote access and monitoring . The default inbound port setting is 443 .
Being encrypted and more secure, HTTPS is highly recommended for remote access .
F . Click the button labeled Submit Network Settings .
A dialog box will display "New network settings will take effect after the server is rebooted" . Click OK .
NetWaySPLWPX Series

Recommended Altronix SFP Modules:

Configuring Units for Network Connection

Please be sure to visit altronix.com for latest
firmware and installation instructions

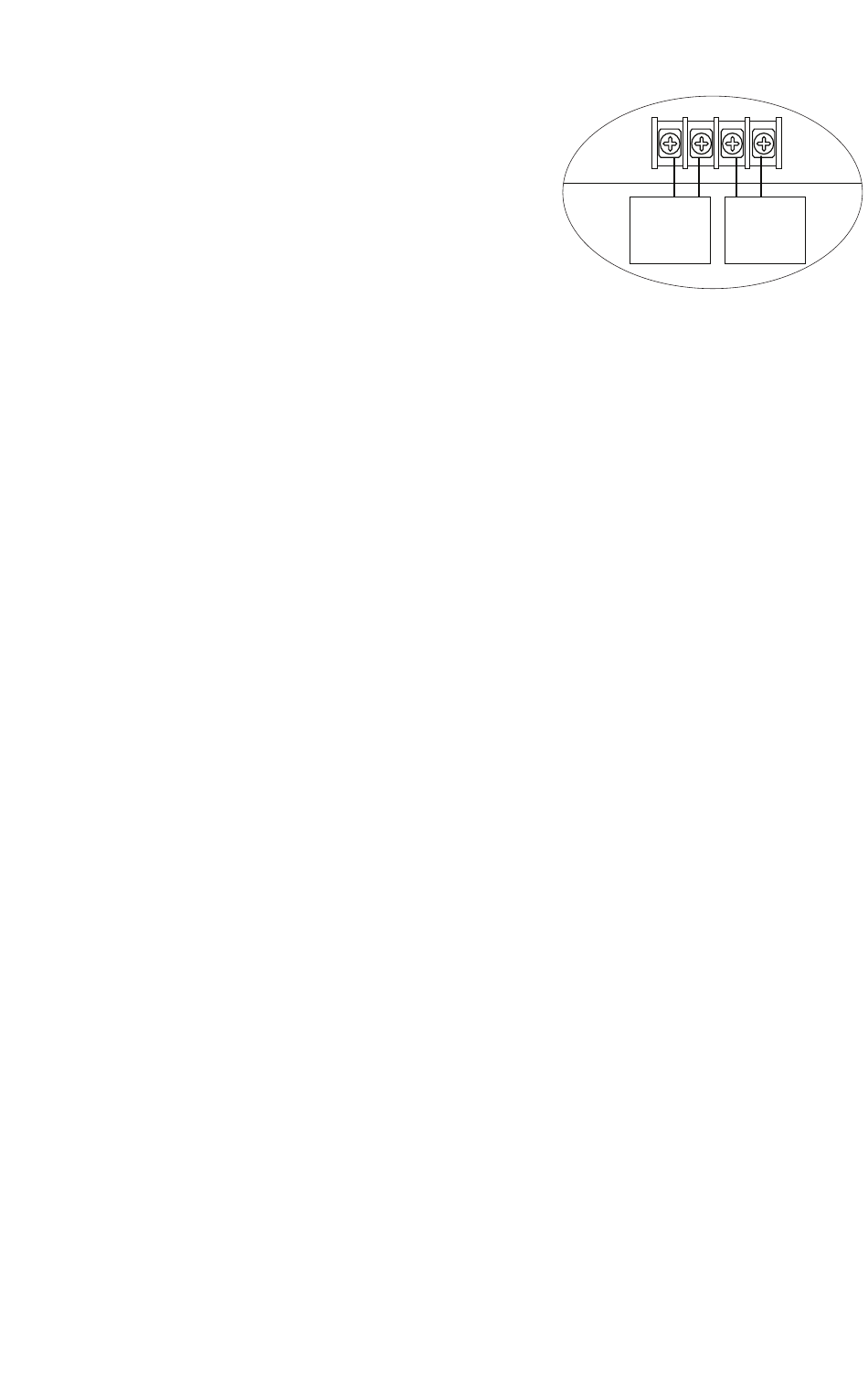

+ BAT – – DC +
To Switch
To Stand-by
Board
Battery
Fig. 3
- 5 -
