Altronix NetWay1 Installation Manual

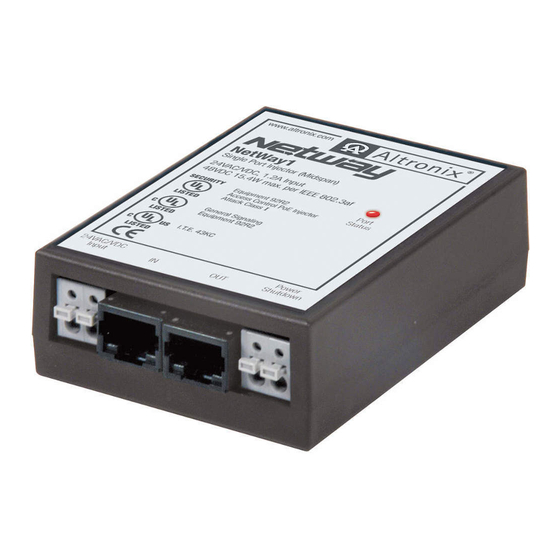

NetWay1
Single Port PoE Injector for Standard NetWork Infrastructure
NetWay1X
Single Port PoE/PoE+ Injector for Standard NetWork Infrastructure
Altronix NetWay1/NetWay1X are single port PoE/PoE+ injectors that provide power and pass data (e.g.
video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay1/NetWay1X.
To extend data distance for an additional 100m use NetWayXT/NetWayXTX repeater modules.
Agency Listings:
• NetWay1:
- UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
UL Listed for Access Control Systems
(UL294), Power over Ethernet (PoE) for
Access Control (UL294B).
- CUL Listed - CSA Standard C22.2
No.205-M1983, Signal Equipment.
- CE approved.
• NetWay1X:
- UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
- CUL Listed - CSA Standard C22.2
No.205-M1983, Signal Equipment.
- CE approved.
Input:
• NetWay1:
24VAC @ 1.2A or 24VDC @ 1.2A.
• NetWay1X:
24VAC @ 1.5A or 24VDC @ 1.5A.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all
local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire
suitable for the application.
Unit is intended to be used with a UL Listed Class 2 or LPS (limited power supply). NetWay1/NetWay1X
is not intended to be connected to outside plant leads and should be installed indoors within the protected
premises. NetWay1/NetWay1X is intended for indoor use only.
1. Mount NetWay1/NetWay1X in desired location utilizing the mounting hole (Figs. 1a and 2a, pg. 2).
Use a proper fastener and/or wall anchor when securing NetWay1/NetWay1X with screw
through its mounting hole to the wall.
2. Connect 24VAC/24VDC to terminals marked [24VAC/VDC Input] (Figs. 1b and 2b, pg. 2).
Use 22AWG-16AWG wire for this connection. Input power should be a UL Listed Access
Control power-limited power supply (for UL294 applications) or Class 2 rated transformer/power
supply (for UL60950-1 applications).
3. Connect structured cable from port marked [IN] on NetWay1/NetWay1X to the corresponding
input of a UL Listed ethernet switch or video server (Figs. 1b, 2b, pg. 2).
4. Connect structured cable from port marked [OUT] on the NetWay1/NetWay1X to PoE device
(Figs. 1b, 2b, pg. 2). All interconnected devices must be UL Listed.
5. Port status LED will illuminate indicating normal operation (Figs. 1c, 2b, pg. 2).
6. To initiate PoE shutdown connect 12VAC to 24VAC or 5VDC to 24VDC to the input terminals
marked [PoE Shutdown] on the NetWay1/NetWay1X (Figs. 1b, 2b, pg. 2). The PoE output voltage
may be shutdown by manually applying voltage in the rated range (PoE Shutdown Voltage Range
in Specifications). Upon applying voltage the output will drop to zero volts. Removal of voltage
from the shutdown terminals or applying zero volts to the shutdown terminals will allow the PoE
output to operate normally to supply power to PoE compliant devices.
Overview:
Features:

Installation Instructions:

®

Installation Guide

PoE/PoE+:
• NetWay1: IEEE 802.3af (15W) compliant.
• NetWay1X: IEEE 802.3at (30W) and
IEEE 802.3af (15W) compliant.
Features:
• Port status LED.
• PoE manual shutdown (For UL 60950-1
applications only)
(see Technical Specifications table pg. 4).
• Auto detection and protection of legacy
non-PoE cameras/devices.
• Data rate: 10/100 BASE-T compliant.
• Compact insulated housing.
Dimensions (W x L x H approx.):
NetWay1:
2.5" x 3.8" x 1"
(63.5mm x 96.5mm x 25.4mm).
NetWay1X:
3.5" x 3.5" x 1"
(88.9mm x 88.9mm x 25.4mm).
Rev. 062814
