Voltage Trip Section
The Hot Line Tag profile has settings for multiple Voltage Trip elements. See Figure 55.

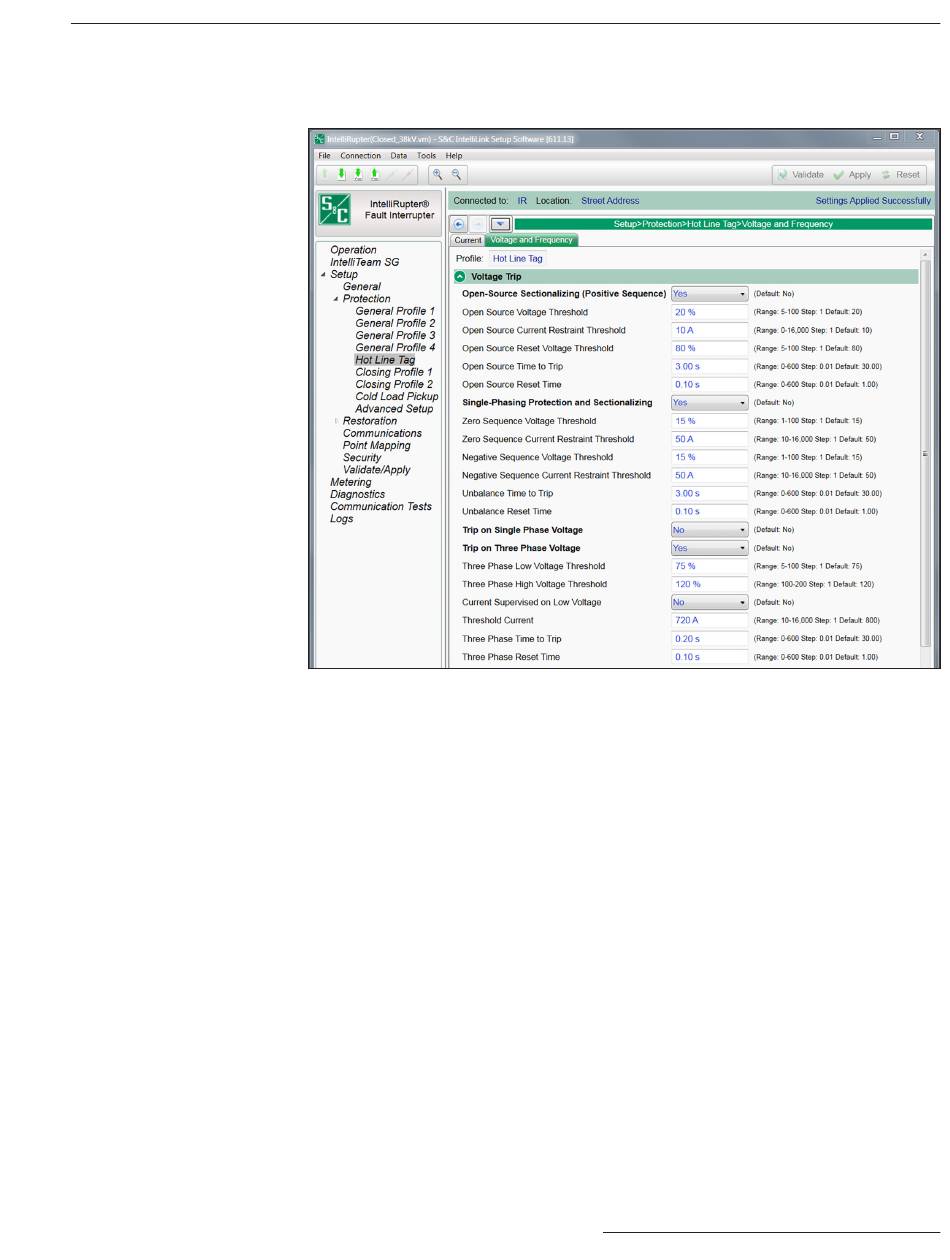

Figure 55. The Setup>Protection>Hot Line Tag>Voltage and Frequency>Voltage Trip screen.
Open-Source Sectionalizing (Positive Sequence)
Specify the Yes, No (default), IntelliTeam SG, or Loops Only option. The IntelliTeam
SG setting causes this element to be active only when the IntelliTeam SG system is in
the Ready state.
Open-Source Voltage Threshold
This is the percentage of system voltage below which a Trip operation will occur.
(Range: 5-100; Step: 1; Default: 20)
Open-Source Current Restraint Threshold
This is the current (in primary amperes) above which a Trip operation is prevented.
(Range: 0-16,000; Step: 1; Default: 10) The stated maximum is for 15-kV IntelliRupter fault
interrupters; 27-kV and 38-kV models are limited to 12,500 amps maximum.
