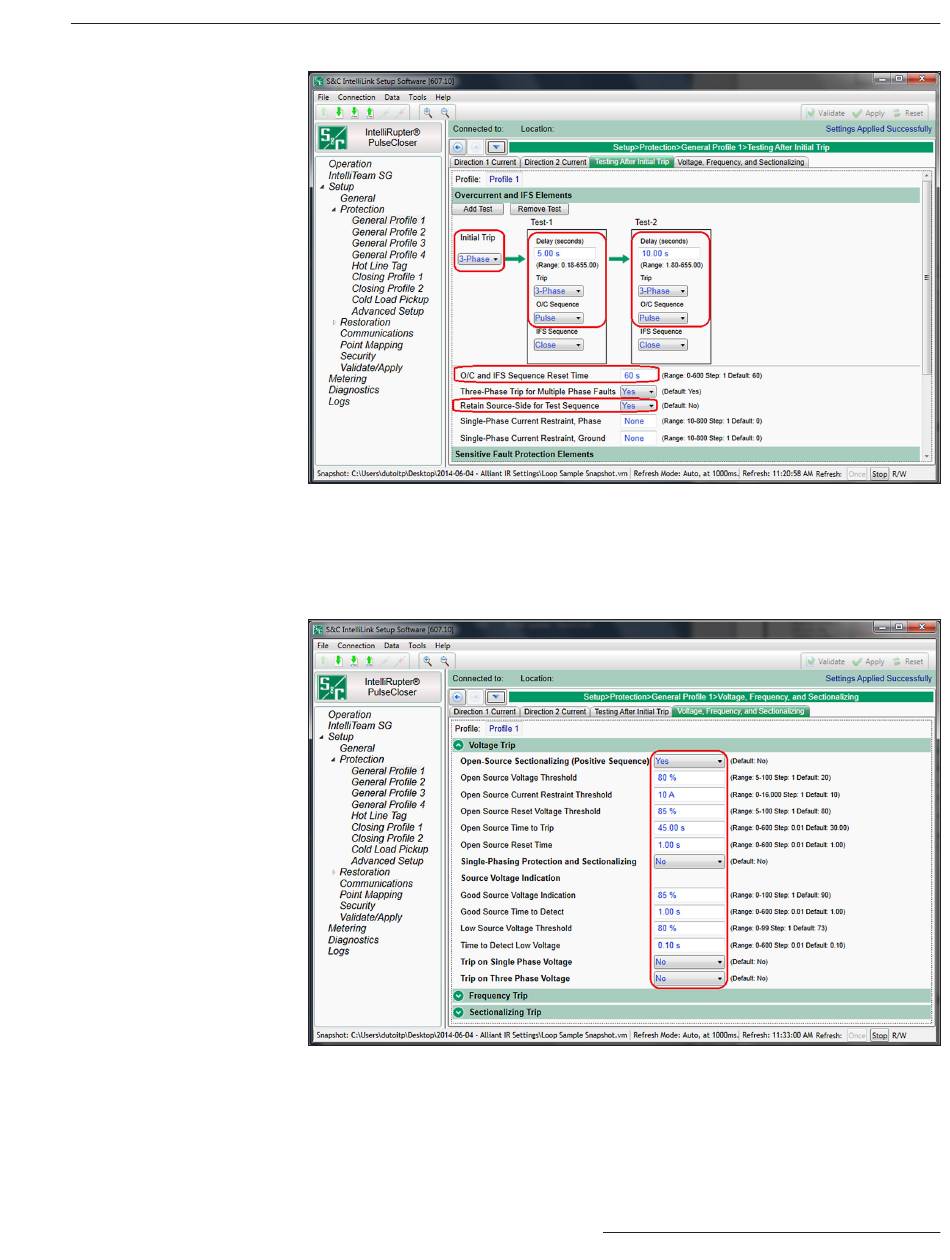

Figure 74. The Setup>Protection>General Profile 1>Testing After Initial Trip>Overcurrent
and IFS Elements screen.
Adjust the Voltage Trip elements on the Setup>Protection>General
STEP 10.
Profile 1>Voltage, Frequency, and Sectionalizing>Voltage Trip screen. See
Figure 75.
Figure 75. The S etup>Prote ction>G eneral Profile 1>Voltage, Fre quency, and
Sectionalizing>Voltage Trip screen.
Loop Restoration
S&C Instruction Sheet 766-530
131
