The screen shown in Figure 112 configures the filter settings for viewing log screens.
The Admin login is required to execute any of the log-control functions.

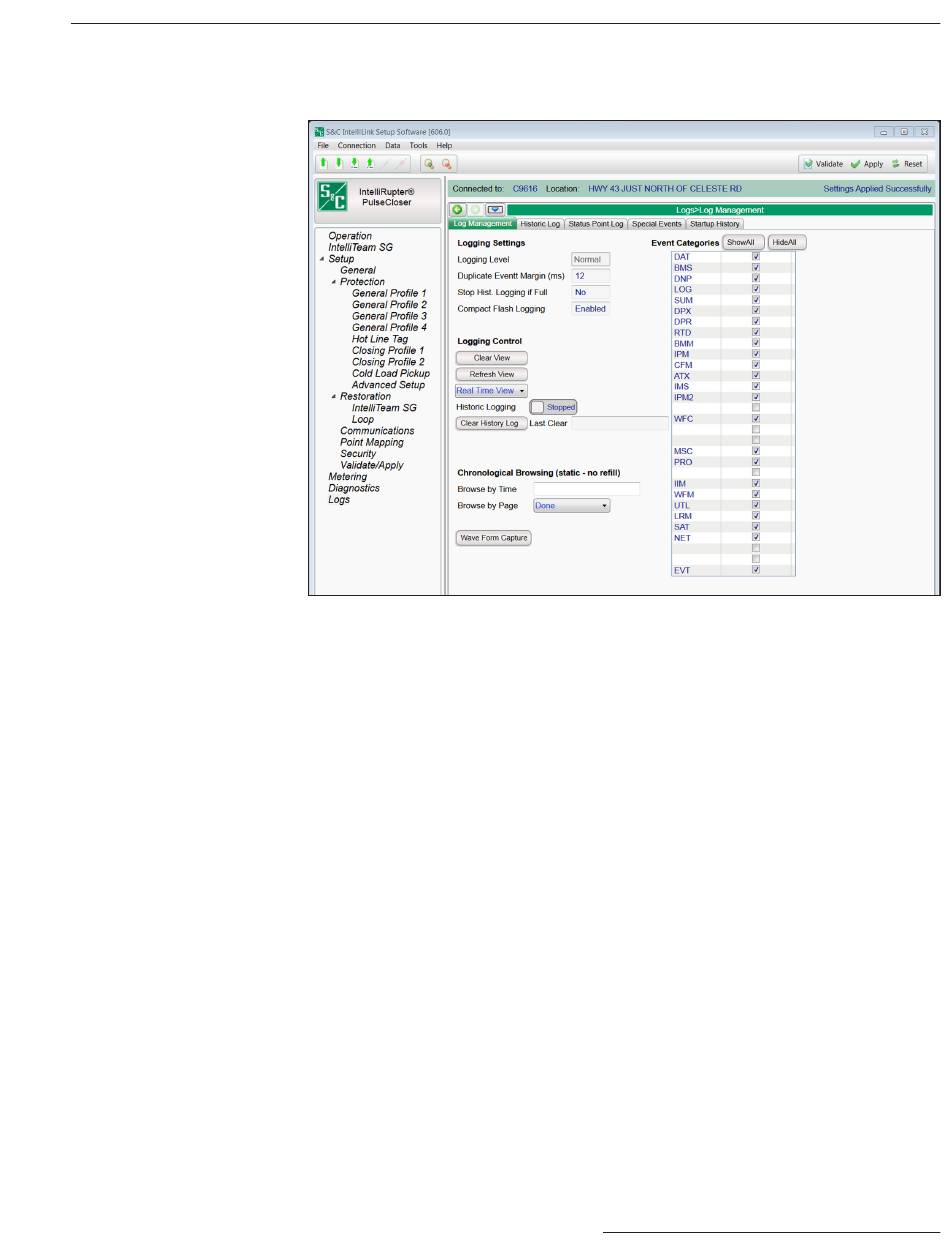

Figure 112. The Setup>Logs>Log Management screen.
Logging Settings
Logging Level
The logging level selected determines the type of data-log messages captured in the
base memory module and is displayed on the Logs>Historic Log screen. Every data-log
message is assigned a specific log level:
Normal—User information
Extended—User information and internal status
All—User information, internal status, and internal trace/debugging information
Duplicate Event Margin (milliseconds)
Storing identical events in a short time period can flood internal memory and does not
provide useful diagnostic information. By configuring the time between duplicate-event
log entries, this set point determines which data will be stored in the internal memory
and be displayed on the Logs>Historic Log screen. It has no effect on an alternating
sequence of events.
Two events are considered duplicates when ever y element of their event
record s m a t ch , such a s when t he D up l i c at e E ve nt M a r g i n s et t i n g i s
10 ms. and the sequence of events ABABAB (where A and B are different) has every event
occur 1 ms after the previous one. The identical events occur within 2 ms, well within
the value of the set point, but all events will be logged because events are alternating.
(Range: 0-30; Increment: 1.)
