Wi-Fi Settings

The Wi-Fi module is a separate computer to send Wi-Fi communication information to the
MCU computer in the control over a serial port. The Wi-Fi module must have the control
serial number registered to initiate Wi-Fi communication with a computer at the site.
When the Wi-Fi module cannot obtain a serial number from the control, it uses the
universal serial number: 00-0000000. See Figure 92.

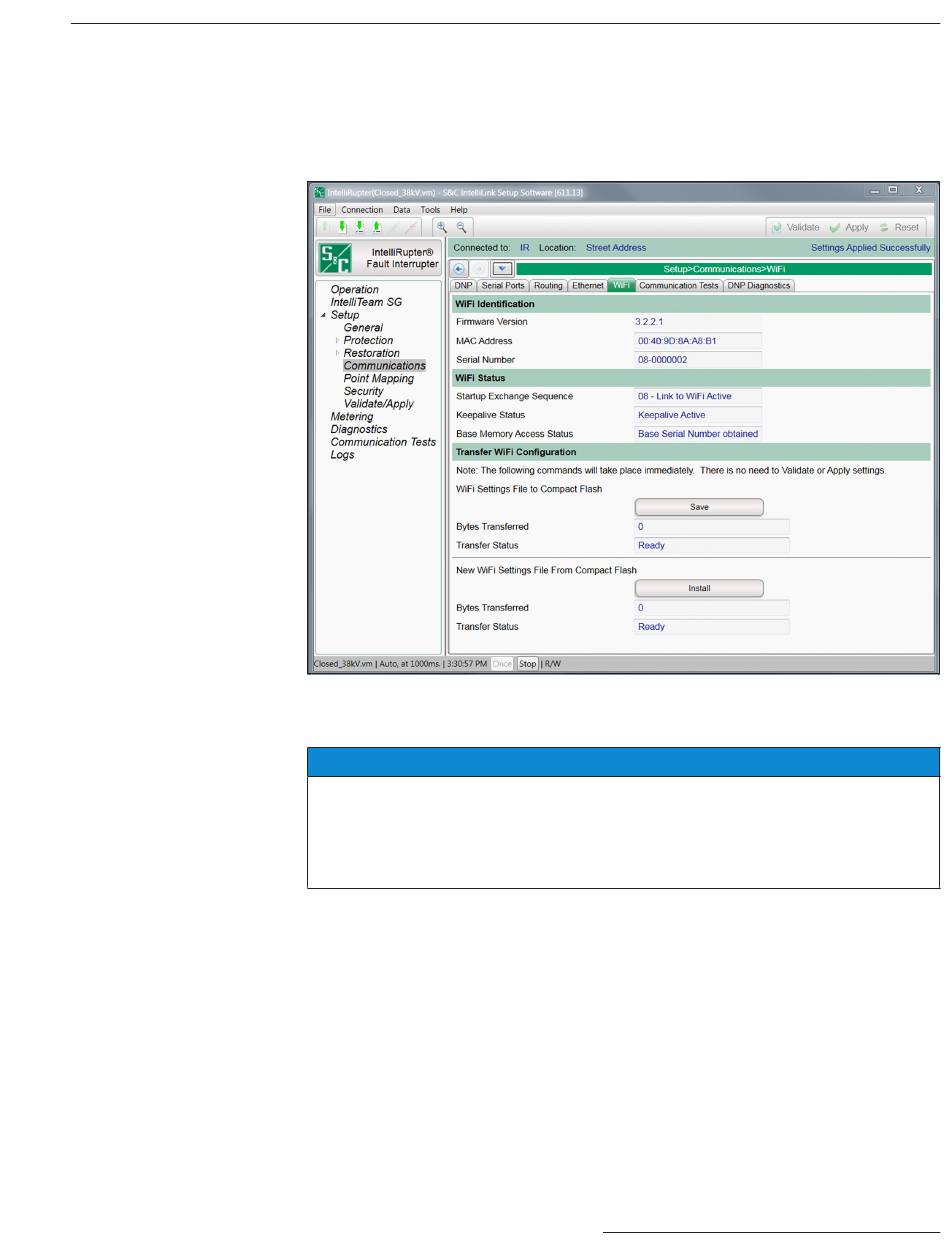

Figure 92. The Setup>Communications>Wi-Fi screen.
Wi-Fi Identification Section
The Setup>Communications>Wi-Fi screen is only applicable to Wi-Fi modules
manufactured on or before December 2019 . Boards manufactured after that date do
not connect to this screen . To identify IntelliRupter fault interrupter communication
modules manufactured after December 2019, look for the R3 label on the faceplate
of the module .
Firmware Version
This is the firmware revision assigned by the manufacturer for the Wi-Fi transceiver.
MAC Address
This is the MAC address of the control.
Communication Setup
