IntelliLink ® Setup Software
12 S&C Instruction Sheet 766-530

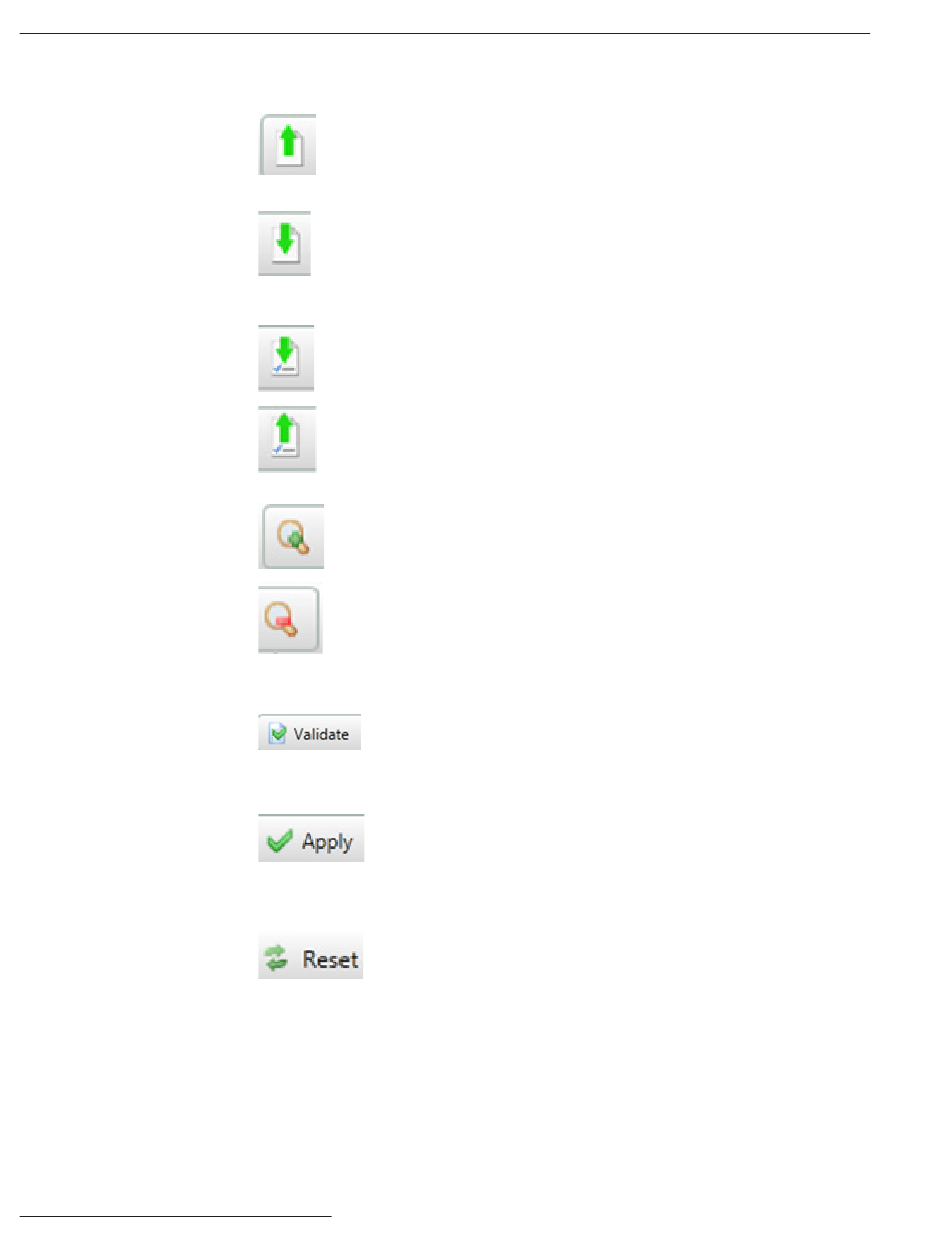

Tool Bar
Open Snapshot
Save Data
Snapshot
Save Setpoints
Load Setpoints
Zoom In
Zoom Out
Validate
Apply
Reset
S a me a s Ma i n Me n u>F i l e >O p e n
Snapshot—Clicking on this icon opens
a file browser to allow the selection of a
snapshot file.
Same as Main Menu>File>Save Data
Snapshot—Clicking on this icon allows
saving a snapshot of the control data.
It provides a picture of the controls
memory content is a programing format.
S a me a s M a i n M e n u> F i l e > S a v e
Setpoints—Clicking on this icon opens
the Save Setpoints dialog box.
S a me a s Ma i n Me n u>F i l e >L o a d
Setpoints—Clicking on this icon opens
the Load Setpoints dialog box.
Clicking on this icon increases the size of
objects and text in the screen area. See
Figure 2 on page 11.
Clicking on this icon decreases the size
of objects and text in the screen area. See
Figure 2 on page 11.
S a me a s Va l i d at e but t on on t he
Setup>Va li d at e /Ap ply screen. See
Figure 113 on page 178. Checks the
pending changes; does not apply them.
S a m e a s A p p l y b u t t o n o n t h e
Setup>Validate/Apply screen. See Figure
113 on page 178. Checks the pending
changes, and applies them if no errors
are found.
Same as Reset Buffer button on the
Setup>Validate/Apply screen. See Figure
113 on page 178. Removes pending
changes and returns to settings in the
memory.
