Definite Time 2 Min. Trip—This is the current (in primary amperes) at which the
Definite Time 2 element picks up. (Range: 3-16,000; Step: 1) The stated maximum is
for 15-kV IntelliRupter fault interrupters; 27-kV and 38-kV are limited to 12,500 amps
maximum.
Definite Time 2 Min. Time—This is the time delay (in seconds) after which the Definite
Time 2 element trips. (Range: 1.000-6000.000; Step: 0.001)
Voltage Trip Section
Each Closing Profile can be configured for multiple Voltage Trip elements. See
Figure 58.

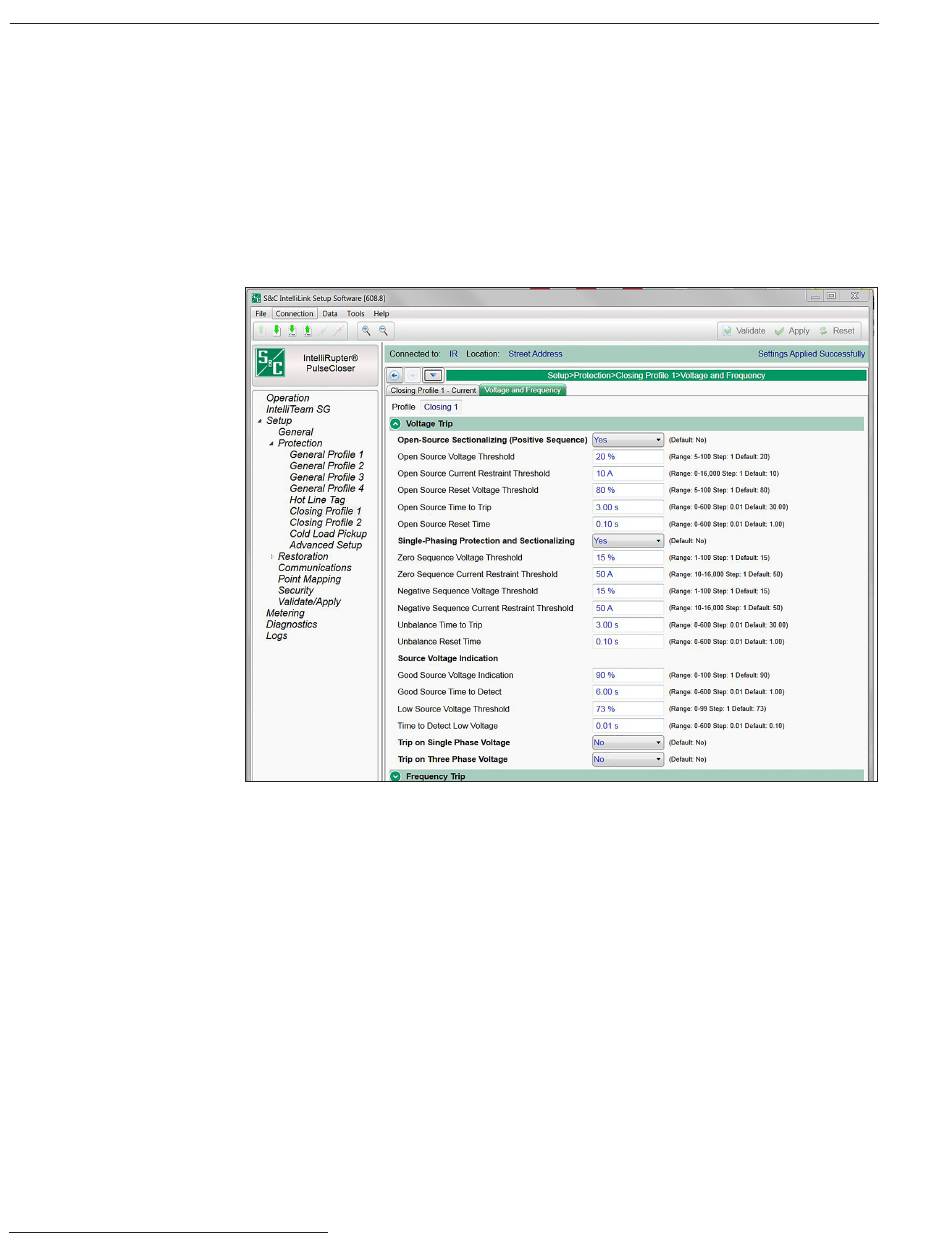

Figure 58. The Setup>Protection>Closing Profile 1>Voltage and Frequency>Voltage Trip
screen.
Open-Source Sectionalizing (Positive Sequence)
Specify the Yes, No (default), or IT SG Only setting. The IT SG Only setting will cause
this element to be active only when the IntelliTeam SG system is in the Ready state.
Open-Source Voltage Threshold
This is the percentage of system voltage below which a Trip operation will occur.
(Range: 5-100; Step: 1; Default: 20)
