IntelliLink ® Setup Software
14 S&C Instruction Sheet 766-530

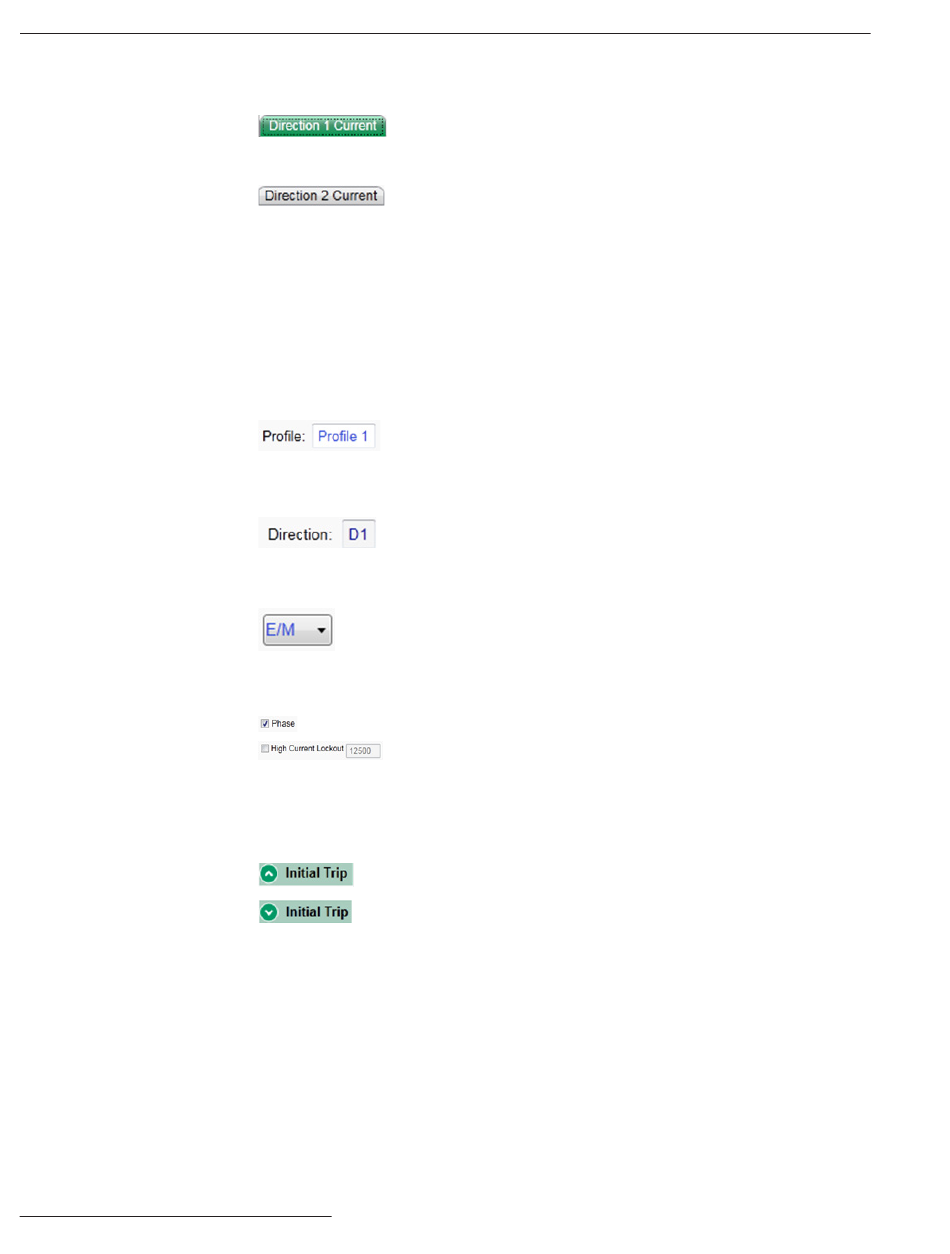

Sub-screen Selection Tabs
Active Tab
Inactive Tab
Screen Area and Data Entry
The screen area contains various data objects used for configuring your control as
well as some features for displaying and accessing the data objects. The basic data
objects contain text boxes for direct text entry and list boxes for data selection.
Editable Text
Boxes
Non-editable
Text Boxes
List Boxes
Check Boxes
Text Expanders
Communication Status
The communication status bar at the bottom of every IntelliLink software screen
displays the connection addresses, the refresh mode, and the last refresh. The time
changing after "Refresh:" indicates the control is communicating. The refresh defaults to
Auto mode but can be stopped by clicking on the Stop button and manually refreshed
by clicking on the Once button that comes into context when the refresh is stopped.
Green indicates the active screen tab.
Grey indicates an inactive tab. Clicking on
an inactive tab changes from the active
screen to the screen associated with the
clicked tab.
Text boxes with white background and
light blue text indicate editable content.
The cursor will change when hovering
over and editable field.
Text boxes with a grey background
and dark blue text indicate dynamic
text populated by the control. This text
cannot be changed.
List boxes as indicated by the down arrow
supply a list of choices when selected. The
current selection will either be shown on
the list box or in an adjacent text box.
Check boxes will be provided for enable/
disable decisions. Data fields for disabled
items will be automatically hidden or grey
shaded. Data fields for disabled items
cannot be changed.
Expanders are provided to help manage
the v iew. W hen the data below the
expander is visible the expander icon
arrow points up. Clicking on the icon
collapses or hides the data from view.
When the data is hidden the expander
arrow points down. Clicking on the icon
displays the hidden date.
