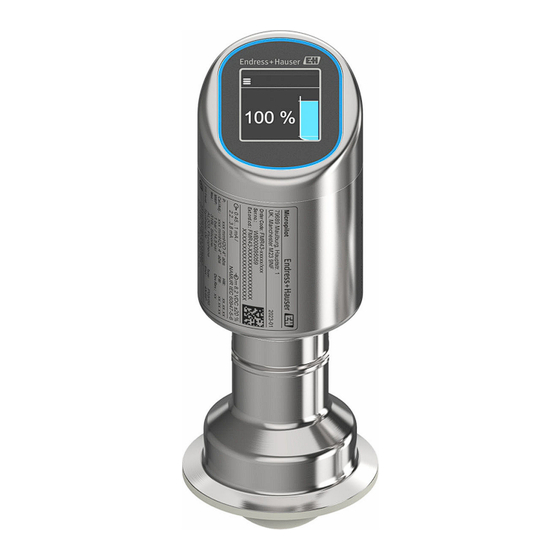

Endress+Hauser Micropilot FMR43 Brief Operating Instructions
Free space radar
Hide thumbs
Also See for Micropilot FMR43:
- Technical information (48 pages) ,
- Operating instructions manual (60 pages)
Advertisement
Quick Links

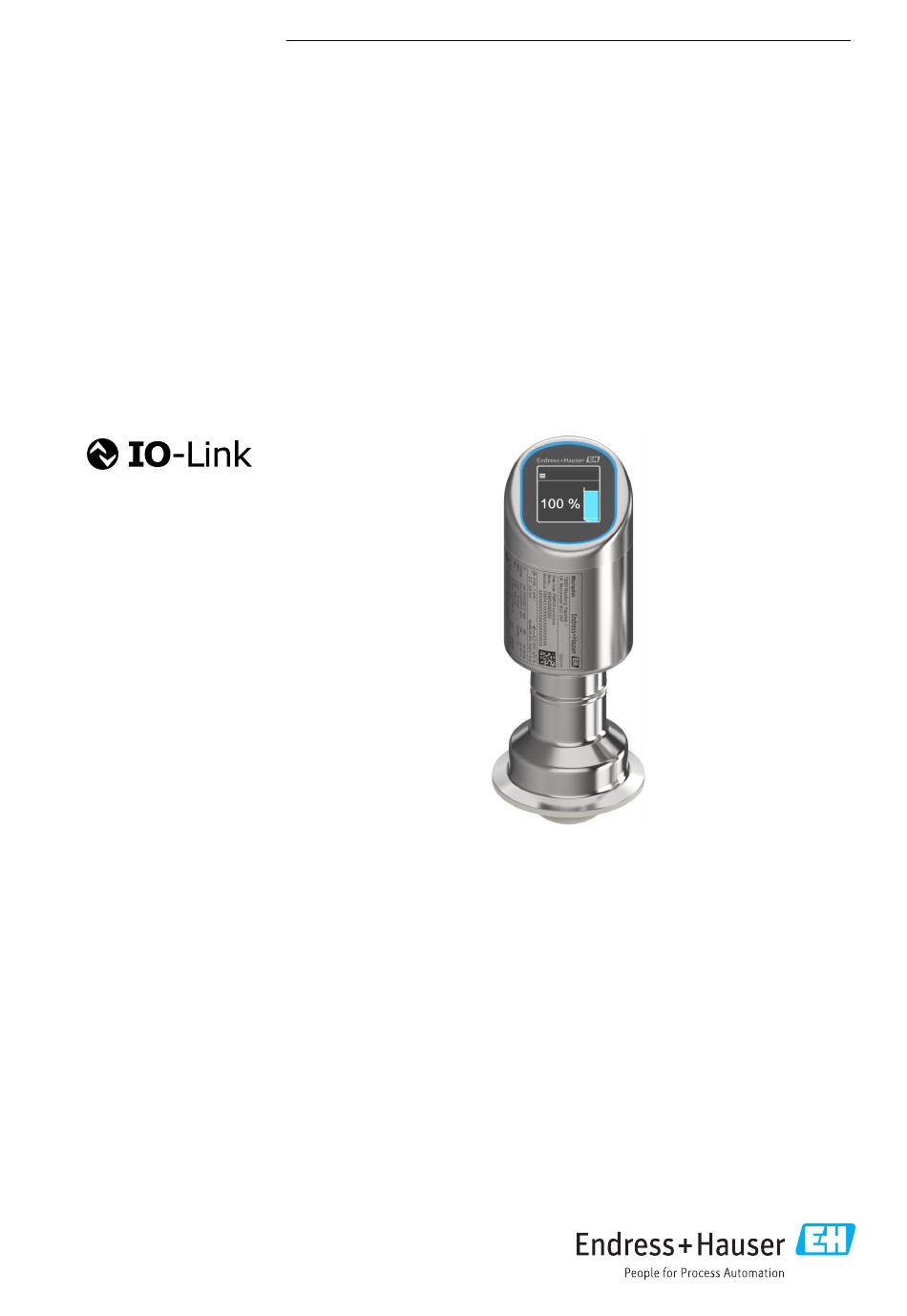

KA01694F/00/EN/01.24-00
71645868
2024-01-25
Products
Brief Operating Instructions
Micropilot FMR43
IO-Link
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Micropilot FMR43
Summary of Contents for Endress+Hauser Micropilot FMR43
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: Associated Documentation
Associated documentation Micropilot FMR43 IO-Link Associated documentation Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Document function The Brief Operating Instructions contain all the essential information from incoming acceptance to initial commissioning. - Page 3 Micropilot FMR43 IO-Link About this document Symbols 2.2.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
-
Page 4: Registered Trademarks
Android, Google Play and the Google Play logo are trademarks of Google Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. ®... -
Page 5: Basic Safety Instructions
Do not touch or clean device surfaces with pointed or hard objects. Clarification for borderline cases: ‣ For special media and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 6: Product Security
It left the factory in a condition in which it is safe to operate. The device fulfills general safety requirements and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this fact by affixing the CE marking. IT security Our warranty is valid only if the product is installed and used as described in the Operating Instructions. -
Page 7: Incoming Acceptance And Product Identification
Micropilot FMR43 IO-Link Incoming acceptance and product identification • Without the SmartBlue app, the device is not visible via Bluetooth® wireless technology. • Only one point-to-point connection is established between the device and a smartphone or tablet. • The Bluetooth® wireless technology interface can be disabled via local operation or via SmartBlue/FieldCare/DeviceCare. -
Page 8: Storage And Transport
Mounting Micropilot FMR43 IO-Link • Firmware version, hardware version • Approval-specific information • DataMatrix code (information about the device) Compare the data on the nameplate with your order. 4.2.2 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. -
Page 9: Mounting The Device
Micropilot FMR43 IO-Link Mounting 5.1.2 Internal vessel fittings α A0031777 Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. 5.1.3 Aligning the antenna axes See Operating Instructions. - Page 10 Mounting Micropilot FMR43 IO-Link A0054233 1 Screwing in the device 5.2.2 Information concerning threaded connections In the case of longer nozzles, reduced measuring performance must be expected. Please note the following: • The end of the nozzle must be smooth and free from burrs.
-
Page 11: Electrical Connection
Micropilot FMR43 IO-Link Electrical connection Electrical connection Connecting the device 6.1.1 Potential equalization If necessary, establish potential equalization using the process connection or the grounding clamp supplied by the customer. 6.1.2 Supply voltage 12 to 30 V on a direct current power unit IO-Link communication is guaranteed only if the supply voltage is at least 18 V. -
Page 12: Terminal Assignment
Electrical connection Micropilot FMR43 IO-Link 6.1.6 Switching capacity • Switch status ON: I ≤ 200 mA ; Switch status OFF: I < 0.1 mA • Switch cycles: > 1 · 10 • Voltage drop PNP: ≤ 2 V • Overload protection: Automatic load testing of switching current;... - Page 13 Micropilot FMR43 IO-Link Electrical connection 2-wire 0.5A A0052660 Supply voltage L+, brown wire (BN) OUT (L-), white wire (WH) 3-wire or 4-wire OUT2 0.5A OUT1 L– A0052457 Supply voltage L+, brown wire (BN) Switch or analog output (OUT2), white wire (WH)
-
Page 14: Operation Options
Operation options Micropilot FMR43 IO-Link Ensuring the degree of protection For mounted M12 connecting cable: IP66/68/69, NEMA type 4X/6P NOTICE Loss of IP protection class due to incorrect installation! ‣ The degree of protection only applies if the connecting cable used is plugged in and screwed tight. -
Page 15: Switching On The Device
Micropilot FMR43 IO-Link Commissioning Switching on the device Once the supply voltage has been switched on, the device adopts the normal mode after a maximum of 4 s. During the start-up phase, the outputs are in the same state as when switched off. -
Page 16: Operation
Commissioning Micropilot FMR43 IO-Link Press and hold the "E" key for longer than 4 seconds. The one-key commissioning LED is executed. The one-key commissioning LED flashes during this operation. The keypad lock LED and Bluetooth LED are off. Once the operation is complete, the one-key commissioning LED is lit continuously for 12 seconds. - Page 17 Micropilot FMR43 IO-Link Commissioning Repeatedly press the "E" key briefly until the Bluetooth LED flashes. Press and hold down operating key "E". Bluetooth is enabled (Bluetooth LED is lit) or Bluetooth is disabled (Bluetooth LED goes out). Commissioning via onsite display If necessary, enable operation (see Operating Instructions).
-
Page 18: Unlocking Procedure
Commissioning Micropilot FMR43 IO-Link Selecting option and confirming Select the required option and confirm using the checkmark at the top right (see screens below). 1 → 2 → Language Language Hauptmenü English English Benutzerf... Diagnose Deutsch Deutsch Français Français Applikation Language... - Page 19 Micropilot FMR43 IO-Link Commissioning Integrate the IODD (IO Device Description) in IODD Interpreter. Then start FieldCare and update the DTM catalog. 8.7.1 Establishing a connection via FieldCare, DeviceCare and FieldXpert A0053130 2 Options for remote operation via IO-Link PLC (programmable logic controller) IO-Link master Computer with operating tool e.g.
-
Page 20: Operating Tool
Commissioning Micropilot FMR43 IO-Link Configuring the operating language 8.9.1 Onsite display Configuring the operating language Before you can set the operating language, you must first unlock the onsite display: Open the operating menu. Select the Language button. 1 → 2 →... - Page 21 Micropilot FMR43 IO-Link Commissioning 8.10.1 Level measurement in liquids 100% A0016933 3 Configuration parameters for level measurement in liquids Reference point of measurement Length of antenna + 10 mm (0.4 in) 50 to 80 mm (1.97 to 3.15 in); medium εr < 2...
- Page 22 Commissioning Micropilot FMR43 IO-Link 8.10.2 Level measurement in bulk solids 100% A0016934 4 Configuration parameters for level measurement in bulk solids Reference point of measurement Length of antenna + 10 mm (0.4 in) Distance Level "Empty calibration" parameter (= 0 %) "Full calibration" parameter (= 100 %) 8.10.3...
- Page 23 Micropilot FMR43 IO-Link Commissioning Operating frequency 180 GHz: • Mode 9 option: Continent of Europe • Mode 10 option: USA The measuring properties of the device can change depending on the configured mode. The specified measuring properties are related to the as-delivered state (at operating frequency 80 GHz: mode 1 and at operating frequency 180 GHz: mode 9).
- Page 24 Commissioning Micropilot FMR43 IO-Link 100 % SP 2 SP 1 A0054230 5 SSC, Two-point SP 2 Switch point with lower measured value SP 1 Switch point with higher measured value Inactive Active 100 % SP 1 A0054231 6...
-
Page 25: Protecting Settings From Unauthorized Access
Micropilot FMR43 IO-Link Commissioning 100 % SP 2 SP 1 A0054232 7 SSC, window Hysteresis Window SP 2 Switch point with lower measured value SP 1 Switch point with higher measured value Inactive Active Teach process (IODD) A switch point is not entered manually for the teach process, but is defined by assigning the current process value of a switching signal channel (SSC) to the switch point. - Page 26 Commissioning Micropilot FMR43 IO-Link Canceling the locking procedure via onsite display/FieldCare/DeviceCare/SmartBlue After entering the password, you can enable parameter configuration of the device as an Operator option with the password. The user role then changes to the Maintenance option. If necessary, the password can be deleted in User management: System → User management...
- Page 28 *71645868* 71645868 www.addresses.endress.com...
