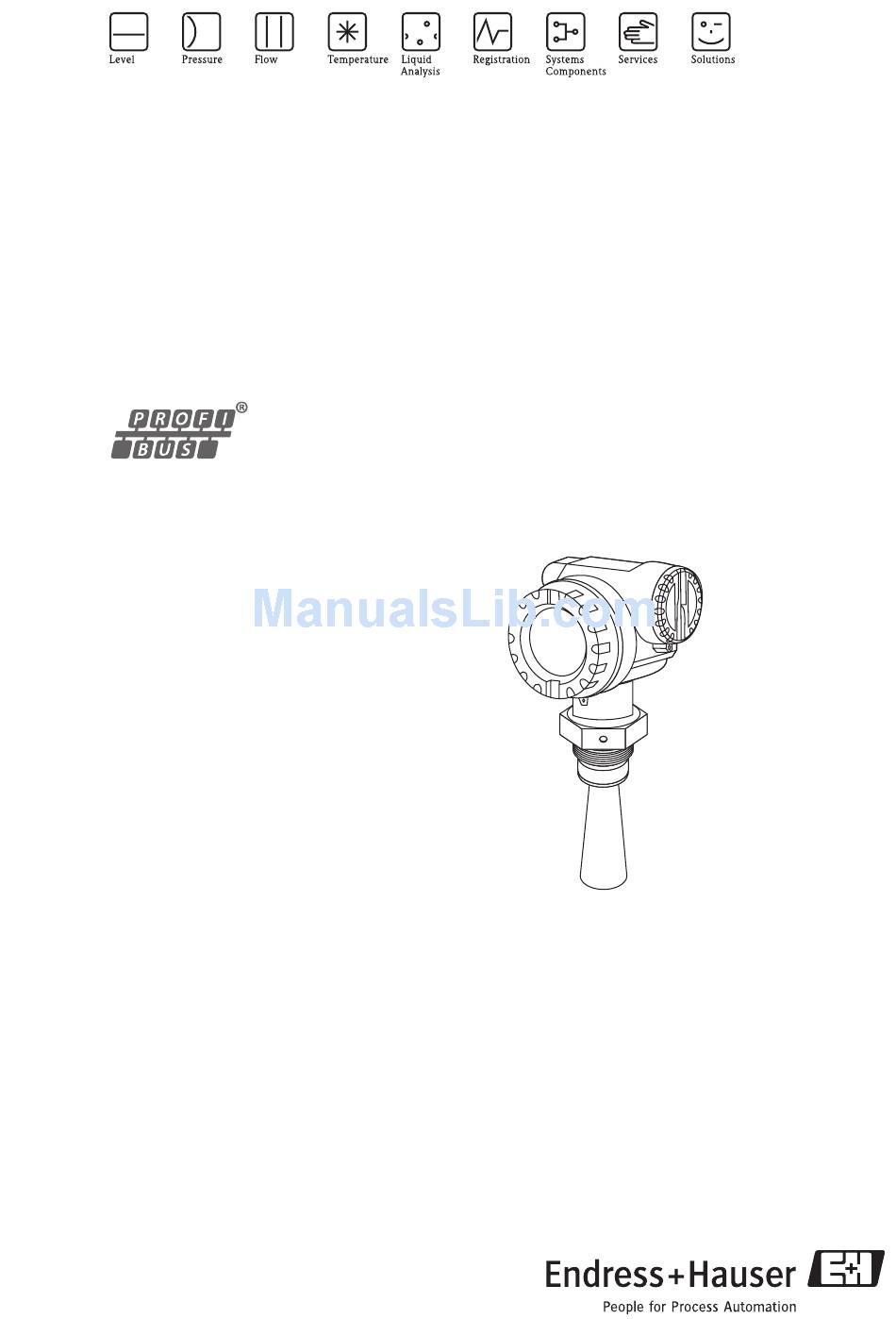

Operating Instructions Micropilot M FMR240 Level-Radar BA227F/00/EN/03.10 71112092 Valid as of software version: 01.05.00...
Page 2
Brief operating instructions Micropilot M FMR240 PROFIBUS PA Brief operating instructions Micropilot M FMR240/244/245/250 - Brief operating instructions KA235F/00/a2/08.06 52025245 Contrast: measured dist./ value meas value Group selection process empty check start media tank tank medium full pipe dist./ range of...
Safety instructions Micropilot M FMR240 PROFIBUS PA Safety instructions Designated use The Micropilot M is a compact radar level transmitter for the continuous, contactless measurement of liquids, pastes, sludge and solids. The device can also be freely mounted outside closed metal vessels because of its operating frequency of about 26 GHz and a maximum radiated pulsed energy of 1 mW (average power output 1 μW).
Micropilot M FMR240 PROFIBUS PA Safety instructions Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.
Identification Micropilot M FMR240 PROFIBUS PA Identification Device designation 2.1.1 Nameplate The following technical data are given on the instrument nameplate: ENDRESS+HAUSER Order Code: Ser.-No.: if modification see sep. label Dat./Insp.: Typenschild-FMxxxx-xx Information on the nameplate of the Micropilot M...
Page 7
Micropilot M FMR240 PROFIBUS PA Identification 2.1.2 Ordering structure This overview does not mark options which are mutually exclusive. Approval: A Non-hazardous area Non-hazardous area, WHG ATEX II 1/2G EEx ia IIC T6 ATEX II 1/2G EEx ia IIC T6, WHG...
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EC directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.
Mounting Micropilot M FMR240 PROFIBUS PA Mounting Quick installation guide Observe orientation when installing! Turn housing Installation in tank (free space): The housing can be turned 350° in order to simplify access to the Mark on process connector facing the nearest tank wall!
Micropilot M FMR240 PROFIBUS PA Mounting Incoming acceptance, transport, storage 3.2.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
Page 13
Micropilot M FMR240 PROFIBUS PA Mounting Process connection F12 / T12 / F23 housing R = reference point of measurement Flange plated Screw-in adapter, compact 2” + 3” flange DN 50 ... 150 Tri-Clamp or equivalent DN 50 ... 150 R 1½”...
Page 14
Mounting Micropilot M FMR240 PROFIBUS PA 3.3.2 Engineering hints Orientation • Recommended distance (1) wall – outer edge of nozzle: ~1/6 of tank diameter. Nevertheless the device should not be installed closer than 15 cm (5.91 in) to the tankwall.
Page 15
Micropilot M FMR240 PROFIBUS PA Mounting Measurement in a plastic tank If the outer wall of the tank is made of a non-conductive material (e. g. GRP), microwaves can also be reflected off interfering installations outside the signal beam (e. g. metallic pipes (1), ladders (2), grates (3), …).
Page 16
Mounting Micropilot M FMR240 PROFIBUS PA Beam angle The beam angle is defined as the angle α where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
Page 17
Micropilot M FMR240 PROFIBUS PA Mounting Measuring conditions in liquids Note! • In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231. Depending on its consistence, foam can either absorb microwaves or reflect them off the foam surface.
Page 18
Mounting Micropilot M FMR240 PROFIBUS PA Measuring conditions in solids • The measuring range begins, where the beam hits the bottom. Particularly with conical outlets the level cannot be detected below this point. The maximum measuring range can be increased in such applications by using a top target positioner (see Technical Information TI345F/00/EN).
Page 19
Micropilot M FMR240 PROFIBUS PA Mounting Measuring range in liquids The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and eventual interference reflections. The maximum configurable range is: • 40 m (131 ft) for basic version •...
Page 20
Mounting Micropilot M FMR240 PROFIBUS PA Measuring range depending on vessel type, conditions and product Standard: With additional option F (G): max. measuring range = 40 m (131 ft) max. measuring range = 70 m (230 ft) min. measuring range = 5 m (16 ft) The recommended measuring range with 100 mm (4") horn antenna in solids is 30 m (98 ft).
Page 21
Micropilot M FMR240 PROFIBUS PA Mounting 40 mm (1½") 50 mm (2") 80 mm (3") 100 mm (4") Process tank with agitator (3.2) (6.6) (8.2) (9.8) (13) (16) (16) (16) (16) (25) (26) (26) (32) (32) (39) (49) (49) Turbulent surface.
Mounting Micropilot M FMR240 PROFIBUS PA Installation instructions 3.4.1 Mounting kit In addition to the tool needed for flange mounting, you will require the following tool: • A key AF60 for threaded boss • 4 mm (0.16 in) Allen wrench for turning the housing 3.4.2...
Page 23
Micropilot M FMR240 PROFIBUS PA Mounting • The horn antenna must be aligned vertically. " Caution! At not vertically aligned horn antenna can be reduced the maximum range. • For mounting in solid applications use the variable flange seal to align the device towards the pro- duct surface (see Technical Information TI345F/00/EN).
Page 24
Mounting Micropilot M FMR240 PROFIBUS PA 3.4.3 Installation in stilling well Optimum mounting position marker at instrument flange or threaded boss 1½” BSPT (R 1½”), G 1½" (FMR 244) DN50 DN80…150 1½ NPT ANSI 2” ANSI 3…6” L00-FMR244xx-17-00-00-en-004 Standard installation For installations in a stilling well, follow the engineering hints (→...
Page 25
Micropilot M FMR240 PROFIBUS PA Mounting Examples for the construction of stilling wells Micropilot M FMR 240 marker threaded connection marker e.g. welding neck flange z.B. Vorschweißflansch 1½” BSPT ( R 1½”), DIN 2633 DIN 2633 G 1½" (FMR 244) or 1½...
Page 26
Mounting Micropilot M FMR240 PROFIBUS PA 3.4.4 Installation in bypass Optimum mounting position L00-FMR230xx-17-00-00-en-007 Standard installation For installations in a bypass, follow the engineering hints (→ ä 14) and note the following points: • Marker is aligned perpendicular (90°) to tank connectors.
Page 27
Micropilot M FMR240 PROFIBUS PA Mounting Example for the construction of a bypass. Micropilot M FMR230, FMR240, FMR244 - 80 (3"), FMR245 marker e.g. welding neck flange DIN 2633 full bore ball valve 100% Diameter of the connection pipes as small as possible...
Mounting Micropilot M FMR240 PROFIBUS PA 3.4.5 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...
Micropilot M FMR240 PROFIBUS PA Wiring Wiring Quick wiring guide Wiring in F12/F23 housing " Before connection please note the following: ENDRESS+HAUSER Made in Germany MICROPILOT M PROFIBUS devices are marked on the nameplate (1). The D-79689 Maulburg Order Code:...
Page 30
Wiring Micropilot M FMR240 PROFIBUS PA Wiring in T12 housing " Before connection please note the following: ENDRESS+HAUSER PROFIBUS devices are marked on the nameplate (1). Made in Germany MICROPILOT M D-79689 Maulburg Order Code: FMR2xx-14EALJAA2A The voltage is determined by the PROFIBUS standard Caution! Ser.-No.:...
Page 31
Micropilot M FMR240 PROFIBUS PA Wiring Wiring with M12 connector Before connection please note the following: " ● PROFIBUS devices are marked on the nameplate (1). ENDRESS+HAUSER Made in Germany MICROPILOT M D-79689 Maulburg The voltage is determined by the PROFIBUS PA standard...
Wiring Micropilot M FMR240 PROFIBUS PA Connecting the measuring unit Cable entry • Cable gland: M20x1.5 (for Ex d: cable entry) • Cable entry: G ½ or ½ NPT • PROFIBUS PA M12 plug Supply voltage The following values are the voltages across the terminals directly at the instrument:...
Micropilot M FMR240 PROFIBUS PA Wiring Recommanded connection For maximum EMC protection please observe the following points: • The external ground terminal on the transmitter must be connected to ground. • The continuity of the cable screening between tapping points must be ensured.
Operation Micropilot M FMR240 PROFIBUS PA Operation Quick operation guide ENDRESS + HAUSER – >3 s media type basic setup Return to liquids tank shape medium property safety settings Group Selection solids dome ceiling unknown linearisation horizontal cyl DC: < 1.9 extended calibr.
Page 35
Micropilot M FMR240 PROFIBUS PA Operation 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups. The function groups that are available include, e.
Operation Micropilot M FMR240 PROFIBUS PA Display and operating elements (liquid crystal display) Orde Orde Ser.- Ser.- r Cod r Cod No.: No.: sber surin sber surin eich eich g rang g rang U 16... U 16... 4...2 4...2 0 mA...
Page 37
Micropilot M FMR240 PROFIBUS PA Operation 5.2.1 Display Liquid crystal display (LCD): Four lines with 20 characters each. Display contrast adjustable through key combination. Headline Position indicator ENDRESS + HAUSER Symbol Main value Bargraph Unit – Selection list Function groups -> Functions HOME F000 F001 F002 F003 F004 ...
Page 38
Operation Micropilot M FMR240 PROFIBUS PA 5.2.3 Key assignment The operating elements are located inside the housing and are accessible for operation by opening the lid of the housing. Function of the keys Key(s) Meaning Navigate upwards in the selection list.
Micropilot M FMR240 PROFIBUS PA Operation Local operation 5.3.1 Locking of the configuration mode The Micropilot can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: Function "unlock parameter" (0A4): A value <> 2457 (e. g. 2450) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
Page 40
There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the Endress+Hauser service organization. Please contact Endress+Hauser if you have any questions.
Page 41
Micropilot M FMR240 PROFIBUS PA Operation 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset.
Operation Micropilot M FMR240 PROFIBUS PA Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.
Micropilot M FMR240 PROFIBUS PA Operation PROFIBUS PA communication 5.5.1 Synopsis personal computer with FieldCare and Profibard resp. Proficard segment coupler PROFIBUS DP ENDRESS + HAUSER PROFIBUS PA More operating and Functions display module (valves etc) ENDRESS + HAUSER Commubox FXA291 with –...
Page 44
Operation Micropilot M FMR240 PROFIBUS PA 5.5.2 Device address Selecting the device address • Every PROFIBUS-PA device must be given an address. If the address is not set correctly, the device will not be recognised by the process control system.
Page 45
The Micropilot M has the ID number 0x152D (hex) = 5421 (dec). Source of supply • Internet (ftp-Server): ftp://194.196.152.203/pub/communic/gsd/Micropilot_m.EXE • CD-ROM with GSD files for all Endress+Hauser devices. Order-Code: 50097200 • GSD library of the PROFIBUS User Organisation (PNO):http: //www.profibus.com Directory structure...
Page 46
Operation Micropilot M FMR240 PROFIBUS PA 5.5.4 Cyclic data exchange Block model of the Micropilot M L00-FMR230xx-02-00-00-en-001 The block model shows, which data are exchanged continously (i. e. by cyclic data transfer) between the Micropilot M and the PLC. The numbers refer to the function groups and functions: •...
Page 47
Micropilot M FMR240 PROFIBUS PA Operation Configuration of the cyclic data telegram Use the configuration software of your PLC in order to compose the data telegram from these modules in one of the following ways: Main value In order to transmit the main measured value, selct the module "Main Process Value".
Page 48
Operation Micropilot M FMR240 PROFIBUS PA IEEE-745 Floating Point Number The measured value is transmitted as a IEEE 754 floating point number, whereby (E-127) Measured value = (-1) x (1+F) Byte 1 Byte 2 Bit 7 Bit 6 Bit 5...
Page 49
Micropilot M FMR240 PROFIBUS PA Operation Status codes The status codes comprise one byte and have got the following meaning: Status- Device status Significance Primary value Secondary value Code 0C Hex device error 0F Hex device error 1F Hex out-of-service (target mode)
Page 50
Operation Micropilot M FMR240 PROFIBUS PA 5.5.5 Acyclic data exchange Acyclic data exchange allows device parameters to be changed independently of the communication between the device and a PLC. Acyclic data exchange is used • to transmit device parameters during commissioning and maintenance;...
Page 51
The Analog-Input and physical blocks contain standard parameters, block parameters and manufacturer-specific parameters. The transducer block of the Micropilot M is Endress+Hauser specific. The parameters of the Analog-Input block are not available when operating via the display or via FieldCare.
Page 52
Operation Micropilot M FMR240 PROFIBUS PA Parameter Endress+Hauser Slot Index Size Type Read Write Storage Matrix (CW II) [bytes] Class HI HI Limit FLOAT static HI Limit FLOAT static LO Limit FLOAT static LO LO Limit FLOAT static 44-45 HI HI Alarm...
Page 53
Micropilot M FMR240 PROFIBUS PA Operation Parameter Endress+Hauser Slot Index Size Type Read Write Storage Matrix (CW II) [bytes] Class Diagnosis mask ext. OSTRING constant Device certification OSTRING constant Security locking V9H9 UNSIGNED16 non-vol. Factory reset V9H5 UNSIGNED16 non-vol. Descriptor...
Page 54
Operation Micropilot M FMR240 PROFIBUS PA Endress+Hauser specific level transducer block Parameter Endress+Hauser Slot Index Size Type Read Write Storage Matrix (CW II) [bytes] Class Standard parameters Block data DS-32* constant Static revision UNSIGNED16 non-vol. Device tag OSTRING static Strategy...
Page 55
Micropilot M FMR240 PROFIBUS PA Operation Parameter Endress+Hauser Slot Index Size Type Read Write Storage Matrix (CW II) [bytes] Class pres. map. dist. V4H4 FLOAT dynamic cust. Tank map V4H5 UNSIGNED8 static echo quality V4H6 UNSIGNED8 dynamic offset V4H7 FLOAT...
Page 56
Operation Micropilot M FMR240 PROFIBUS PA Parameter Endress+Hauser Slot Index Size Type Read Write Storage Matrix (CW II) [bytes] Class antenna ext. VAH9 FLOAT static input level semi auto V3H4 FLOAT dynamic input level manual V3H4 FLOAT static simulation level...
Page 57
The operating program FieldCare is an Endress+Hauser Plant Asset Management Tool based on FDT technology. You can use FieldCare to configure all your Endress+Hauser devices, as well as devices from other manufacturers that support the FDT standard. Hardware and software requirements you can find on the internet: www.endress.com ➝...
Page 58
Operation Micropilot M FMR240 PROFIBUS PA Signal analysis via envelope curve MicropilotM-en-306 Tank linearisation MicropilotM-en-307 Endress+Hauser...
Micropilot M FMR240 PROFIBUS PA Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post installation check", → ä 28. • Checklist "Post connection check", → ä 33.
Commissioning Micropilot M FMR240 PROFIBUS PA Basic Setup level measurement in liquids media type media type flange: liquid solid reference point of measurement tank shape vessel / silo dome ceiling metal silo measuring cond. measuring cond. Unknown Unknown measuring cond.
Page 61
Micropilot M FMR240 PROFIBUS PA Commissioning " Caution! The basic setup is sufficient for successful commissioning in most applications. Complex measuring operations necessitate additional functions that the user can use to customise the Micropilot as necessary to suit his specific requirements. The functions available to do this are described in detail in the BA291F/00/EN.
Commissioning Micropilot M FMR240 PROFIBUS PA Basic Setup with the device display Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042) function). The number of digits after decimal point can be selected in the "no.of decimals"...
Page 63
Micropilot M FMR240 PROFIBUS PA Commissioning Function "tank shape" (002), liquids only ⇒ ENDRESS + HAUSER – This function is used to select the tank shape. Selection: • dome ceiling • horizontal cyl • bypass • stilling well • flat ceiling •...
Page 64
Commissioning Micropilot M FMR240 PROFIBUS PA Function "process cond." (004) , liquids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • calm surface • turb. surface • agitator • fast change •...
Page 65
Micropilot M FMR240 PROFIBUS PA Commissioning Function "vessel / silo" (00A), solids only ⇒ ENDRESS + HAUSER – This function is used to select the vessel / silo. Selection: • unknown • metal silo • concrete silo • bin / bunker •...
Page 66
Commissioning Micropilot M FMR240 PROFIBUS PA Function "process cond." (00C), solids only ⇒ ENDRESS + HAUSER – This function is used to select the process conditions. Selection: • standard • fast change • slow change • test:no filter Function "empty calibr." (005) ⇒...
Page 67
Micropilot M FMR240 PROFIBUS PA Commissioning Function "full calibr." (006) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the minimum level to the maximum level (=span). L00-FMR2xxxx-14-00-06-en-009 Note! • If bypass or stilling well was selected in the "tank shape" (002) function, the pipe diameter is requested in the following step.
Page 68
Commissioning Micropilot M FMR240 PROFIBUS PA Function "dist./meas.value" (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
Page 69
Micropilot M FMR240 PROFIBUS PA Commissioning dist. too big • This error cannot be remedied by interference echo mapping • Check the application parameters (002), (003), (004) and "empty calibr." (005) dist. unknown If the actual distance is not known, no mapping can be carried out.
Page 70
Commissioning Micropilot M FMR240 PROFIBUS PA Function "dist./meas.value" (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the level calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual level or the actual distance.
Page 71
Micropilot M FMR240 PROFIBUS PA Commissioning 6.4.2 Envelope curve with device display After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E) function group) is recommended. Function "plot settings" (0E1) ⇒...
Page 72
Commissioning Micropilot M FMR240 PROFIBUS PA Function "envelope curve display" (0E3) The envelope curve is displayed in this function. You can use it to obtain the following information: quality of evaluated echo full calibr. evaluated echo is marked empty calibr.
Page 73
Micropilot M FMR240 PROFIBUS PA Commissioning Move mode Then press to switch to Move mode. Either is displayed. • shifts the curve to the right. • shifts the curve to the left. L00-FMxxxxxx-07-00-00-yy-008 Vertical Zoom mode Press once more to switch to Vertical Zoom mode.
Commissioning Micropilot M FMR240 PROFIBUS PA Basic Setup with the Endress+Hauser operating program To carry out the basic setup with the operating program, proceed as follows: • Start the operating program and establish a connection. • Select the "basic setup" function group in the navigation window.
Page 75
Micropilot M FMR240 PROFIBUS PA Commissioning Basic Setup step 2/4: • Enter the application parameters: – Tank shape – Medium property – Process cond. MicropilotM-en-302 Basic Setup step 3/4: If "dome ceiling", "horizontal cyl", "..." is selected in the "tank shape" function, the following display appears on the screen: •...
Page 76
Commissioning Micropilot M FMR240 PROFIBUS PA Basic Setup step 4/4: • This step starts the tank mapping. • The measured distance and the current measured value are always displayed in the header. MicropilotM-en-304 6.5.1 Signal analysis via envelope curve After the basic setup, an evaluation of the measurement using the envelope curve is recommended.
Page 77
Micropilot M FMR240 PROFIBUS PA Commissioning 6.5.2 User-specific applications (operation) For details of setting the parameters of user-specific applications, see separate documentation BA291F/00/EN "Description of Instrument Functions" on the enclosed CD-ROM. Endress+Hauser...
Repairs The Endress+Hauser repair concept assumes that the measuring devices have a modular design and that customers are able to undertake repairs themselves ("Spare Parts", → ä 91). Please contact Endress+Hauser Service for further information on service and spare parts.
L00-FMR2xxxx-00-00-06-en-001 Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI405C/07/EN. Note! For the instrument you need the "ToF Adapter FXA291" as an additional accessory.
Accessories Micropilot M FMR240 PROFIBUS PA Remote display FHX40 Wall-mounting Pipe-mounting (without mounting bracket) (mounting bracket and plate supplied optionally, s. product structure) Separate housing FHX40 (IP 65) Micropilot M (4.8) Levelflex M Prosonic M O rd O rd C od...
Micropilot M FMR240 PROFIBUS PA Accessories Horn cover for 80 mm (3") and 100 mm (4") horn antenna 8.7.1 Technical data Materials Process conditions Horn cover PTFE Vessel pressure max. 0.5 bar (7.252 psi) Screws 316L Process temperature max. 130 °C (266 °F)
Page 82
Accessories Micropilot M FMR240 PROFIBUS PA mm (in) ³ DN150 450 (17.72) L00-FMR2xxxx-06-00-00-xx-003 Horn cover for horn antenna 100 mm (4") – for antenna diameter d = 95 mm (3.74 in) – for FMR240: antenna variant H, 5 – for FMR250: antenna variant E Note! The horn cover is not allowed to use in areas, where explosion proofed equipment is necessary.
Micropilot M FMR240 PROFIBUS PA Trouble-shooting Trouble-shooting Trouble-shooting instructions Micropilot M FMR 2xx -Trouble Shooting Check voltage and Not ok Instrument does compare it with the Connect the Instrument works? Ready specifications on the not respond correct voltage nameplate. Check the polarity...
Trouble-shooting Micropilot M FMR240 PROFIBUS PA System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before data reset; general reset & new could be stored; avoid emc problem; calibr.required emc problem; if alarm prevails after reset,...
Page 85
Micropilot M FMR240 PROFIBUS PA Trouble-shooting Code Description Possible cause Remedy W611 less than 2 linearisation number of entered linearisation points < 2 correct linearisation table points for channel 1 W621 simulation ch. 1 on simulation mode is active switch off simulation mode...
Trouble-shooting Micropilot M FMR240 PROFIBUS PA Application errors in liquids Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error 1. See table of error messages messages (→ ä 84) (→ ä 84) has occurred →...
Page 87
Micropilot M FMR240 PROFIBUS PA Trouble-shooting Error Output Possible cause Remedy → If the surface is not Signal is weakened by 1. Carry out tank mapping basic calm (e. g. filling, the rough surface – the setup emptying, agitator interference echoes are 100% 2.
Trouble-shooting Micropilot M FMR240 PROFIBUS PA Application errors in solids Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of error 1. See table of error messages messages (→ ä 84) (→ ä 84) has occurred →...
Micropilot M FMR240 PROFIBUS PA Trouble-shooting Orientation of the Micropilot For orientation a marker is found on the flange or threaded boss of the Micropilot. During installation this must be oriented as follows (→ ä 10): • In tanks: to the vessel wall •...
Page 90
Trouble-shooting Micropilot M FMR240 PROFIBUS PA L00-FMRxxxxx-19-00-00-en-004 Vessel empty, no interference echo L00-FMRxxxxx-19-00-00-en-005 Vessel empty, interference echo obtained Fix the flange or threaded boss in this position. If necessary, replace the seal. Carry out tank mapping, → ä 68. Endress+Hauser...
Micropilot M FMR240 PROFIBUS PA Trouble-shooting Spare Parts An overview of the spare parts for your device is available in the internet at www.endress.com. To obtain information on the spare parts, proceed as follows: Go to "www.endress.com" and select your country.
Micropilot M FMR240 PROFIBUS PA Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e. g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.
Micropilot M FMR240 PROFIBUS PA Technical data Technical data 10.1 Additional technical data 10.1.1 Input Measured variable The measured variable is the distance between a reference point and a reflective surface (i. e. medium surface). The level is calculated based on the tank height entered.
Page 94
Technical data Micropilot M FMR240 PROFIBUS PA 10.1.3 Performance characteristics Reference operating • temperature = +20 °C ±5 °C (+68 °F ±41 °F) conditions • pressure = 1013 mbar abs. ±20 mbar (15 psi abs. ±0.29 psi) • relative humidity (air) = 65 % ±20 % •...
Page 95
Micropilot M FMR240 PROFIBUS PA Technical data Gas phase Temperature Pressure °C °F 1 bar (14.5 psi) 10 bar (145 psi) 50 bar (725 psi) 100 bar (1450 psi) 160 bar (2320 psi) Water 0.20 % — — — —...
Page 96
Technical data Micropilot M FMR240 PROFIBUS PA 10.1.5 Operating conditions: Process Process temperature range / Note! Process pressure limits The specific range may be reduces by the selected process condition. The pressure rating (PN) specified on the flanges refers to a reference temperature of 20 °C (68 °F), for ASME flanges to 100 °F.
Page 97
Micropilot M FMR240 PROFIBUS PA Technical data 10.1.6 Mechanical construction Weight • F12/T12 housing: approx 4 kg (8.82 lbs) + weight of flange • F23 housing: approx 7.4 kg (16.32 lbs) + weight of flange Material Materials of T12 and F12 housing (seawater-resistant, powder-coated)
Page 98
Technical data Micropilot M FMR240 PROFIBUS PA Materials of F23 housing (corrosion-resistant) F23 housing 316L (1.4404/1.4435) L00-x12xxxx-16-00-00-en-001 Pos. Part Material Housing body: 1.4404; Sensor neck: 1.4435; F23 housing earth connection block: 1.4435 Cover 1.4404 Sealing Fa. SHS: EPDM 70pW FKN...
Page 99
Micropilot M FMR240 PROFIBUS PA Technical data Material Flange plated 2" + 3" Flange DN50 to 150 2" + 3" Flange (in contact with process) DN50 to 150 Tri-Clamp or equivalent Tri-Clamp DN50 to 150 or equivalent ISO 2852 ISO 2852...
Page 100
Micropilot M FMR240 PROFIBUS PA 10.1.7 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. RF approvals R&TTE, FCC German WHG, see ZE244F/00/DE, → ä 7, "Ordering structure.
Page 101
Micropilot M FMR240 PROFIBUS PA Technical data Ex approval Correlation of safety instruction (XA, XC) and certificates (ZD, ZE) to the instrument: Feature Non-hazardous area ATEX II 1/2G, II 1/2D, Alu blind cover, ATEX II 1/2G Ex ia IIC T6, ATEX II 1/2D...
Appendix Micropilot M FMR240 PROFIBUS PA Appendix 11.1 Operating menu PROFIBUS PA basic setup media type tank shape medium cond. process cond. empty calibr. full calibr. liquid dome ceiling unknown standard enter value enter value horizontal cyl. DK: < 1.9...
Page 103
Micropilot M FMR240 PROFIBUS PA Appendix dist./meas.value check distance range of mapping start mapping dist./meas.value distance = ok input of D and L dist. too small mapping range are displayed manual D and L are displayed pipe diameter dist. unknown enter value dist.
Appendix Micropilot M FMR240 PROFIBUS PA 11.2 Patents This product may be protected by at least one of the following patents. Further patents are pending. • US 5,387,918 i EP 0 535 196 • US 5,689,265 i EP 0 626 063 •...
Micropilot M FMR240 PROFIBUS PA Index Index accessories ........79 key assignment .
Page 106
Micropilot M FMR240 PROFIBUS PA Index T12 housing ....... . 30–31 tank installations .
Page 107
