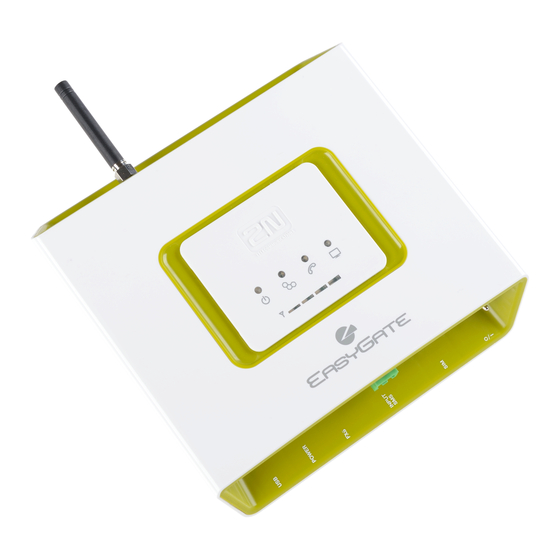

User Guide 2N® EasyGate
PRO





v.2.01
www.2n.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyGate PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 2N EasyGate PRO

Summary of Contents for 2N EasyGate PRO

  • Page 1     User Guide 2N® EasyGate           v.2.01 www.2n.com...

  • Page 2: Table Of Contents

    2.3 Mounting • 2.4 Telephone Line Connection • 2.5 SMS Sending Input Connection • 3. 2N® EasyGate PRO Configuration • 3.1 2N® EasyGate Pro Parameter Configuration • 3.2 Table of Parameters • 4. Function and Use • 4.1 Voice Function •...

  • Page 3: Product Overview

    1. Product Overview ® In this section, we introduce the 2N EasyGate PRO (from now only 'Easy Gate') product, outline its application options and highlight the advantages following from its use. This chapter also includes safety instructions.  Here is what you can find in this section: •...

  • Page 4: Changes

    1.00 The User Manual applies to 2N EasyGate II product line: 501323, 501333, 501343 and 501353. 1.01 Name changed to EasyGate PRO, minor changes 1.02 Free minutes option added (for Firmware version 3.5x only) 1.03 UMTS version added 4 /  87...

  • Page 5: Terms And Symbols Used

    The manufacturer continuously meets customer requirements by improving the firmware. The latest EasyGate processor firmware and PCManager programming tool are available for download at www.2n.com. The User Manual is available for download at wiki.2n.com. • For EasyGate firmware upgrade details refer to the section devoted to the PC programming tool.
  • Page 6 User Guide 2N® EasyGate PRO Future functions Grey marked text in this document specifies functions of EasyGate , which will be supported in the future. 6 /  87...

  • Page 7: Description And Installation

    User Guide 2N® EasyGate PRO 2. Description and Installation ® This section describes the 2N EasyGate PRO product and its installation.  Here is what you can find in this section: • 2.1 Description • 2.2 Before You Start • 2.3 Mounting •...
  • Page 8 User Guide 2N® EasyGate PRO EasyGate LED indicators and EasyGate Connecters 8 /  87...
  • Page 9 User Guide 2N® EasyGate PRO Dual SIM version – front panel   Telephone Line Tones – Operational Tones The GSM (UMTS) gateway sends tones to the telephone line to indicate the line status. Following part describes the factory default setting. The tone frequency is 425 Hz.
  • Page 10 User Guide 2N® EasyGate PRO • EasyGate is logged-out. • EasyGate is logged-in to a foreign network but roaming is disabled. • The called number has too many digits (more than 30). • The called number is barred. • The called subscriber line is busy.

  • Page 11: Before You Start

    • Software:   The 2N® EasyGate PCManager software is available for download at www.2n.com.  EasyGate Drivers for PC allowing data connection to the Internet. • Lists of AT Commands: Refer to Subs. 4.4 of this manual for the list of AT commands.

  • Page 12: Mounting

    User Guide 2N® EasyGate PRO Installation Requirements • EasyGate is designed for vertical mounting on suspension holes. This position is the best for signal reception when an antenna without cable is used. EasyGate can be operated in the horizontal position too where the GSM (UMTS) signal is good or where an antenna with a cable is used.
  • Page 13 User Guide 2N® EasyGate PRO SIM Card Installation Slot for SIM card is placed on the connector panel. Insert the SIM card to the slot with contacts oriented to the front panel with LED. Make sure that the card is locked properly.

  • Page 14: Telephone Line Connection

    User Guide 2N® EasyGate PRO  Cautions • Make sure that the GSM provider's SIM card is compatible with the GSM network supported by your EasyGate version. • Operator services and SIM card services, such as preferred networks, SMS service centre, PIN protection etc.

  • Page 15: Sms Sending Input Connection

    User Guide 2N® EasyGate PRO Telephone Set (Answering Machine, Coin Telephone Station) Connection You can connect a standard telephone, answering machine or any other FXO-interface terminal to EasyGate. Optionally you can connect analogue fax (special model of EasyGate).  • EasyGate is equipped with the FSK-based CLIP and so it is advantageous to connect a terminal that is able to display the CLIP.

  • Page 16: N® Easygate Pro Configuration

    User Guide 2N® EasyGate PRO 3. 2N® EasyGate PRO Configuration ® This section describes configuration of the product 2N  EasyGate PRO.  Here is what you can find in this section: • 3.1 2N® EasyGate Pro Parameter Configuration • 3.2 Table of Parameters 3.1 2N®...
  • Page 17 User Guide 2N® EasyGate PRO Enter the number of the parameter to be programmed and press . If the parameter number is correct, you can hear the confirmation tone, if not, you get the rejection tone and can re-enter the parameter number.
  • Page 18 User Guide 2N® EasyGate PRO PC Based Programming For programming, connect EasyGate to a PC with a USB cable and make sure that the PCManager UNI is installed. Programming is intuitive and easy. All steps are accompanied with text hints above all the items you point at with the mouse.
  • Page 19 User Guide 2N® EasyGate PRO PCManager Use – Basic The main purpose of PCManager UNI is to set configuration and upgrade firmware of EasyGate. When the EasyGate configuration is to be changed, the configuration must be first loaded from EasyGate, then edited using PCManager and finally saved back to EasyGate.
  • Page 20 User Guide 2N® EasyGate PRO  Caution • The PIN and service password can only be modified either manually or by full initialization. Monitoring Monitoring is active when EasyGate is in operation and registered to the GSM network. If EasyGate is not registered to GSM, the COM is locked and no monitoring can be made.
  • Page 21 User Guide 2N® EasyGate PRO Upgrading procedure Run PCManager UNI, select the language for displaying texts on the right-hand side. In the File menu use Upgrade or select a proper icon from the bar. When the gateway is not in the programming mode, you will be instructed to switch the gateway off and on.

  • Page 22: Table Of Parameters

    3.2 Table of Parameters All programmable parameters are listed in this section. Each parameter is accompanied with the ®  unit used, function number (if available) for phone line programming, 2N EasyGate behavior description, setting options, setting step and default (initialization) value. Numeric parameters must be set in the unit listed in the parameter description. For parameters with different setting, the values are defined in the parameter description (for phone line programming in parentheses).
  • Page 23 User Guide 2N® EasyGate PRO ®  Timeout during which 2N EasyGate waits for further digits to be dialed. It starts to establish connection when this timeout passes. Setting options: 1–255 s Setting step: 1 s Default setting: 5 s   Minimum On Hook [ms] (Function No. 102) ® ...
  • Page 24 User Guide 2N® EasyGate PRO DTMF during call (Function No. 107) When DTMF is transmitted via a GSM voice channel, a problem can occur with transmission quality, because GSM compression can damage the signal. You can set digital transmission ® ...
  • Page 25 User Guide 2N® EasyGate PRO 25 /  87...
  • Page 26 Default setting: NO   Dial tone – frequency 1 [Hz] (Function No. 120) ®  Setting of dial tone frequency 1. This tone is generated after Off-Hook in case 2N EasyGate is ready to accept dialing. Setting options: 1–3400 Hz Setting step: 1 Hz Default setting: 425 Hz  ...
  • Page 27 User Guide 2N® EasyGate PRO Dial tone – frequency 2[Hz] (Function No. 121) Setting of dial tone frequency 2. Setting options: 1–3400 Hz Setting step: 1 Hz Default setting: 425 Hz   Dial tone – cadence (Function No. 122) Dial tone cadence setting.
  • Page 28 2000/4000 ms (4) – cadence 2 s tone, 4 s pause Default setting: OFF   Tone after disconnection (Function No. 129) ®  If the remote subscriber hangs up first, the 2N EasyGate subscriber can hear the tone selected here. Setting options: 28 /  87...
  • Page 29 User Guide 2N® EasyGate PRO ®  Busy (0) – 2N EasyGate transmits the busy tone upon call end. ®  Permanent (1) – 2N EasyGate transmits the permanent tone upon call end. Default setting: Busy tone   Volumes Transmission volume (Function No. 190) Volume setting for GSM transmission with a 4dB step.
  • Page 30 User Guide 2N® EasyGate PRO Ringing Signal Settings Ringing signal – frequency [Hz] (Function No. 140) Ringing signal frequency setting. Setting options: 25 / 50 Hz - EasyGate rings with 50 or 25 Hz on FXS interface. Default setting: 50 Hz  ...
  • Page 31 User Guide 2N® EasyGate PRO Default setting: blank 31 /  87...
  • Page 32 • Set a time limit for the call. ®  Every table row includes a prefix (of variable length) plus parameters that define 2N EasyGate's behavior in case the beginning of the dialed number matches this prefix. The table can contain up to 120 different prefixes.
  • Page 33 User Guide 2N® EasyGate PRO tariff setting (5 pulses after call connect and then one pulse every 10 seconds). All other calls are enabled and their tariff is one pulse every 30 seconds. Routing Table Operator for Integra (Function No. 405) In some GSM networks you can add the # character and PBX subscriber number to the number dialed.
  • Page 34 User Guide 2N® EasyGate PRO   Number length (Function No. 393) The parameter defines the expected length of a number with a prefix included on the same row. This enables you to start dialing into a GSM network immediately after the last digit is dialed. If the phone number to be dialed is shorter, the timeout is respected.
  • Page 35 User Guide 2N® EasyGate PRO Setting options: 0–255 Setting step: 1 Default setting: 0 35 /  87...
  • Page 36 Special function – for FW 1.5x and 3.5x only. Do not use this parameter and the 'Free minute ®  bank' folder with detailed settings for standard 2N EasyGate. GSM, UMTS, LTE Routing Parameters ®  Incoming GSM calls contain the CLI. According to the received CLI 2N EasyGate can do the following: • Reject the call. •...
  • Page 37 User Guide 2N® EasyGate PRO 37 /  87...
  • Page 38 User Guide 2N® EasyGate PRO Max ring time for CallBack (Function No. 502) The parameter sets up the CallBack behavior. There are 2 options for using CallBack on the FXS port: Simple CallBack – set to 0. During an incoming call, the FXS port gives a ringing. When the FXS port is off-hooked, an incoming GSM call is rejected and after 10 s the gateway calls back the GSM number.
  • Page 39 User Guide 2N® EasyGate PRO  Caution • Configuration using phone line programming (DTMF) is applicable for 'Other prefixes' only. CLI – calling number (Function No. –) Fill in CLI to route the call according to the parameter on the same table row. It is possible to fill in only a prefix for a group of CLI's.
  • Page 40 User Guide 2N® EasyGate PRO Route to (Function No. 591) It is possible to route an incoming GSM call to the FXS interface or reject it. When a call is routed to the FXS port, you can use the CallBack feature. For correct functionality please set up the "Max.
  • Page 41 User Guide 2N® EasyGate PRO Default setting: blank 41 /  87...
  • Page 42   CLIR – incognito (Function No. 701) (SIM2-751) ®  Set the calling line identification restriction (CLIR) for outgoing calls from 2N EasyGate. Warning: Before enabling be sure to have this feature activated by the GSM provider to avoid outgoing call rejection by the GSM network.
  • Page 43 Setting options: – Disable (0) – The GSM module logs out of a foreign network and attempts to register again in within 5 minutes. ®        – Enable (1) – 2N EasyGate works in any GSM network. Default setting:  Disable  ...
  • Page 44 User Guide 2N® EasyGate PRO       – Disable (0) Default setting:  Enable   Wireless network selection (Function No. 705) (SIM2-755) You can select the network connection technology, for UMTS gateways only.        Setting options: UMTS & GSM (0) – automatic selection, UMTS preferred  ...
  • Page 45 User Guide 2N® EasyGate PRO Setting options: 0–255 h Step: 1 h Default setting: 0   Code for credit checking (Function No. 711) The prepaid SIM card credits are checked by a network function which displays a text message on the mobile phone display. The network function code must be terminated with the "#"...
  • Page 46 User Guide 2N® EasyGate PRO  ATTENTION • Find out if you have to pay for this function. Every check can lower your credit. Setting options: 0–8 characters (0–9, *, #, +) Default setting: blank   Minimal credit (Function No. 712) Set minimum credit value for sending a warning SMS "LOW CREDIT".
  • Page 47 Firmware version ®  ®  EasyGate firmware version – 2N EasyGate central processor program version. The ®  manufacturer can issue upgrades to extend functions. To load new firmware into 2N EasyGate, use the Upgrade function. Keep communicating with the manufacturer.   Serial number ® ...
  • Page 48 User Guide 2N® EasyGate PRO Telephone number for service SMS. The number is common for GGMC SMS, for "LOW CREDIT" SMS on prepaid SIM cards, for battery status SMS, power failure and for lift service SMS. Setting options: 0-16 characters (0-9,*,#,+) Default setting: empty Time period for GGMC SMS [h] (Function No.
  • Page 49 User Guide 2N® EasyGate PRO Initialization All programmable parameters are arranged in tables according to their functions. You can initialize either all parameters at once or one table of parameters. FXS line initialization FXS Function No.: - Initialization of all parameters necessary for the telephone line FXS.
  • Page 50 Lift application (optional) Battery error signalization Function No.: 964 Set battery error signalization protocol. Using Lift1 setting is only for connection with 2N Lift1 communicator. Gateway reports error to Lift1 and then Lift1 makes call to monitoring center. Setting options: Off...
  • Page 51 User Guide 2N® EasyGate PRO Power error -FXS Line voltage break when main power is disconnected and battery is flat, or battery failure Network or battery error -both states are signalized by FXS line voltage break. Default setting: Off Relay signalization Function No.: 969 You can set signalization of network registration and powering state by NO relay contact.
  • Page 52 User Guide 2N® EasyGate PRO P100 retrying Function No.: 975 Not implemented in EasyGate! Specify number of retrying in case of unsuccessful attempt of P100 connection. Setting options: 0-10 (0 = no retry) Default setting: 0 Multiple Lift1 on FXS line Function No.: 966 You can connect up to 3 Lift1 on one phone line.
  • Page 53 User Guide 2N® EasyGate PRO APN (Access Point Name) for SOS functions. Leave it blank in most cases, it will be filled from selected profile file. Setting options: 0-40 characters Default setting: blank IP stack (optional) Authentication type Function No.: 802(SIM2-812) Specify authentication type for PPP stack.

  • Page 54: Function And Use

    User Guide 2N® EasyGate PRO 4. Function and Use ® This section describes the basic and extending functions of the product 2N  EasyGate PRO. Here is what you can find in this section: • 4.1 Voice Function • 4.2 FAX and Data Function •...
  • Page 55 User Guide 2N® EasyGate PRO Hook off the phone to establish the call. The Line LED is permanently on during the call. Hang up to terminate the call. The Line LED goes off. If the called subscriber is the first to hang up, you can hear the busy tone and hang up.
  • Page 56 User Guide 2N® EasyGate PRO Confirmation – service activated:  • Confirms that the service was configured correctly and the service is activated. Confirmation – service deactivated:  • Confirms that the service was configured correctly and the service is deactivated. Call forwarding For forwarding activation you must specify <Telephone number> the calls will be forwarded to.
  • Page 57 User Guide 2N® EasyGate PRO Call forwarding if busy If activated, incoming calls will be forwarded to the configured telephone number if there is call in progress on EasyGate. Activation for all call types:  <Telephone number>  Activation for selected call type:  <Telephone number> ...
  • Page 58 User Guide 2N® EasyGate PRO Status check:   Call forwarding if not accessible If activated, incoming calls will be forwarded to the configured telephone number if your EasyGate is not accessible in the GSM network. Activation for all call types: <Telephone number> ...

  • Page 59: Fax And Data Function

    User Guide 2N® EasyGate PRO Call hold Check if your network supports the service before you use it. This service relates to Call waiting described in 5.7. If there is call waiting on the line, you have more possibilities what to do. Every action is made by FLASH and DTMF code: ...
  • Page 60 User Guide 2N® EasyGate PRO Sending a fax message to GSM and modem connection through GSM (UMTS, LTE) When connected device is able to send CNG tone (1100 Hz for fax 1300 Hz for modem), the gateway recognizes whether the call is fax or data, the connection will be established automatically.
  • Page 61 User Guide 2N® EasyGate PRO DTMF codes for fax receive: • *9900# Reset of all following settings for fax receive • *9901# The next call is fax, this setting is suspended after receiving call or by command *9900# • *9902# Fax routed to FXS, inactivate *9900# or device reset + •...

  • Page 62: Sms Sending Input

    User Guide 2N® EasyGate PRO Connection using IP stack Function IP stack is available on special versions of EasyGate only. It is dedicated for connection of device with embedded analogue modem to defined server on internet public address. The connection must be initialized by connected device with embedded analogue modem by special dialing prefix *02*.
  • Page 63 User Guide 2N® EasyGate PRO  Caution • Data calls and fax calls from the PSTN come as voice calls (the telephone line on EasyGate rings) because an analog network is unable to distinguish a modem/fax call. Therefore, it is necessary to have a special telephone number for incoming data and fax calls on the SIM card different from the voice call numbers (Multi- numbering scheme).
  • Page 64 User Guide 2N® EasyGate PRO The driver for MC55i-w is named "mdm2n_vx.x.inf, x“ (x – driver version) in the downloaded file. The drivers for SIM5320 and PHS8-P are available in the 32-bit Windows version and for the 64- bit Windows version they are placed in respective directories in the downloaded file.
  • Page 65 User Guide 2N® EasyGate PRO SMS Sending and Receiving It is possible to send and receive SMS using appropriate AT commands. There are a number of PC programs that are based on this principle. For the GSM version install the Cinterion supporting SW (Siemens mobile telephone SW can also be used), for the UMTS version install the Simcom or Gemalto supporting SW.

  • Page 66: Sim Card Pin Protection

    User Guide 2N® EasyGate PRO  Caution • Since the GSM (UMTS) module is primarily used by the EasyGate central processor for voice calls, use AT commands carefully. You might establish a wrong module configuration, thus making EasyGate inoperative. To solve most of these problems, switch EasyGate off and on again to make the central processor execute full initialization of the module.
  • Page 67 User Guide 2N® EasyGate PRO To confirm enter a  If you hear the busy tone in a while (a few seconds), you have entered the PIN correctly. Hook on and wait for registering to the GSM network. If you hear the PIN tone again in a while, you have entered a wrong PIN. Re-enter the PIN.

  • Page 68: Free Minutes Option

    User Guide 2N® EasyGate PRO Automatic PIN Entering You need not enter the PIN upon power up if it is stored in EasyGate – it is entered automatically. This function is convenient in case of power failure; EasyGate is operable in a short time after power recovery without any intervention by the operating staff.
  • Page 69 User Guide 2N® EasyGate PRO Default setting:    0 Date for automatic refill (Function No.: 311) The day in month, when all four banks of free minutes will be refilled with predefined values. The refilling is done in time 00:00:01 of selected day. When the date for refill doesn't exist (31. 2.), the refill is done first day after this date (1.
  • Page 70 User Guide 2N® EasyGate PRO When the time is to be set, the user is informed about this fact by additional short tone before dial tone. The LED network after connecting to network shines discontinuously (short breaks in shining). Code for setting:  *06*YYMMDDhhmm# Where: YY:          ...

  • Page 71: Lift Functions

    User Guide 2N® EasyGate PRO Manual setting: Setting date and time manually Using Free minutes option – step by step  If your gateway is preset by supplier to be used with some billing scheme, you can continue with step 6.
  • Page 72 User Guide 2N® EasyGate PRO Information SMS Forced information SMS Demanded by SMS in form: EG INF 12345 (instead of ‘12345’ actual password) The answer of the Gateway: EG.INF OK demand accepted SN:00-0000-0000 serial number FW:18.7.16 FW version LIC:N (or Y) license for function 3 Lift1 on line IMEI:358108071238512 IMEI IMSI:230015011042680;230025100127093 IMSI (eventually 2.
  • Page 73 User Guide 2N® EasyGate PRO SIM2:2302;Home;3G;-77dBm Dual SIM version only Power:On Line power Battery:Ok Battery status Expire in:730 Time to battery change (days) To use this function, following parameters must be set: Checking SMS: 967 Id text: 968 Battery status SMS: 962...
  • Page 74 User Guide 2N® EasyGate PRO SMS Syntax: EG DEF password Example: EG DEF 12345 12345 – password for programming, here is default value 3. Restart SMS Syntax: EG RST password Example: EG RST 12345 12345 – password for programming, here is default value The answer to the SMS: EG.CNF OK Correct setting...
  • Page 75 User Guide 2N® EasyGate PRO We support only standard SMS, it means 7-bit SMS max 160 characters, 8-bit SMS max 140 characters. Responses: L1 CNF OK L1 DEF OK L1 SET OK L1 RST OK L1 ERR Invalid Message In front of SMS wasn’t L1...
  • Page 76 User Guide 2N® EasyGate PRO shines continuously when in GSM network, it has one short break every 2 seconds in WCDMA and two short brakes every 2 seconds in LTE network. - Battery failure is signalized by rotation of the signal strength indicator.

  • Page 77: Technical Parameters

    User Guide 2N® EasyGate PRO 5. Technical Parameters This section describes the technical parameters of the product 2N® EasyGate Pro. • GSM module: MC55i-W • GSM bandwidth: EGSM 850/ EGSM 900/ GSM 1800/ GSM 1900 MHz • Transmission power: • 2 W EGSM 850 / 900 MHz, ...
  • Page 78 User Guide 2N® EasyGate PRO • PHS8-P –  HSPA max 14,4 Mbps (DL), 5,7 Mbps (UL) • Antenna: • 800/850/900/1800/1900/2100 MHz  50 Ω • SMA antenna connector • SIM card: 3 V or 1,8 V plug-in LTE version  • LTE module: •...
  • Page 79 User Guide 2N® EasyGate PRO • SIM card: • 3V or 1,8V plug-in 79 /  87...
  • Page 80 User Guide 2N® EasyGate PRO Power Supply • Mains supply: 230 / 12 V; 0.5 A adapter • DC power supply: 10 to 16 V DC • 12V consumption: • Standby 90 mA  • Call – typ. 300 mA, max. 600 mA •...
  • Page 81 User Guide 2N® EasyGate PRO SMS Sending Input • Closed loop resistance: max. 1 kΩ • Open loop resistance: min. 25 kΩ • Input overvoltage protection: max. +/− 12 V Serial interface • Interface type: USB 1.1 • Connector: USB typ B • Interface transmission rate (on virtual COM port): 1200–115200 bps (autobauding) 8N1 Versions of product Ordering number (without country code –...

  • Page 82: Supplementary Information

    6.5 General Instructions and Cautions 6.1 Regulations and Directives 2N® EasyGate conforms to the following directives and regulations: ◼ Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 – on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ◼...

  • Page 83: Troubleshooting

    User Guide 2N® EasyGate PRO 6.3 Troubleshooting For the most frequently asked questions refer to faq.2n.cz. • All signal LED lights rotate gradually on EasyGate • This state indicates expired batteries if used for more than 2 years as recommended or another battery problem.

  • Page 84: List Of Abbreviations

    User Guide 2N® EasyGate PRO • Check the COM parameters (1200–115200 bps, 8N1). • EasyGate is not registered to GSM network. • A dialing or outgoing call establishing process takes place on EasyGate. • An incoming call is ringing on EasyGate.

  • Page 85: General Instructions And Cautions

    User Guide 2N® EasyGate PRO 6.5 General Instructions and Cautions Please read this User Manual carefully before using the product. Follow all instructions and recommendations included herein. Any use of the product that is in contradiction with the instructions provided herein may result in malfunction, damage or destruction of the product.
  • Page 86 User Guide 2N® EasyGate PRO Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental- friendly disposal.
  • Page 87 Uživatelský manuál 2N® EasyGate PRO 87 /  87...
