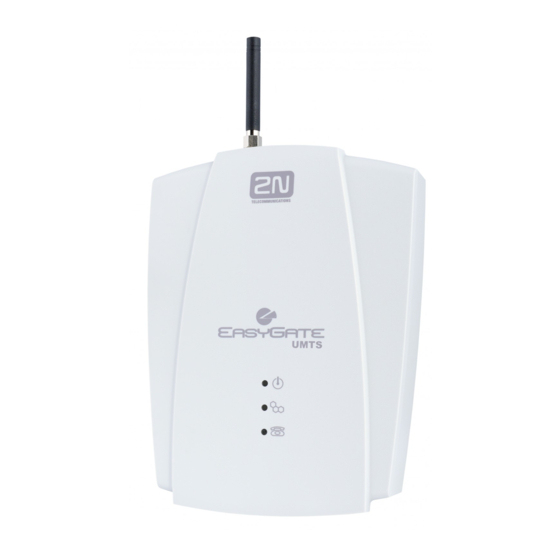

Summary of Contents for 2N EASYGATE UMTS

  • Page 1 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM...
  • Page 2 We hope you will be fully satisfied with this UMTS/GSM gateway for a long time. Therefore, use your EasyGate UMTS Data for purposes it has been designed and manufactured for, in accordance herewith.
  • Page 3 The manufacturer continuously meets customer requirements by improving the firmware. For the latest EasyGate UMTS Data processor firmware, programming tool and User Manual see www.2n.cz. For a detailed description of the EasyGate UMTS Data firmware upgrade refer to the section devoted to the PC programming tool.
  • Page 4 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Packing List An EasyGate UMTS Data delivery contains the following items: Number of Item Pieces EasyGate UMTS Data 1 pc Antenna for direct connection 1 pc Magnetic Antenna with coax cable...

  • Page 5: Table Of Contents

    ELEPHONE ONNECTION 2.6..................... 8 OWER UPPLY ONNECTION 2.7. PC C ........................8 ONNECTION EASYGATE UMTS DATA STATUS INDICATION ............... 9 3.1........................9 NDICATION 3.2......................9 ELEPHONE ONES USIM CARD PIN PROTECTION ..................11 4.1. PIN E ....................11...

  • Page 6: Easygate Umts Data Purpose

    • Easy installation – EasyGate UMTS Data is designed for immediate use without programming. • You get all you need in the delivery – your EasyGate UMTS Data delivery contains all you need to operate the system (the power supply adapter, telephone cable, PC serial cable and CD-ROM with software).

  • Page 7: Installation

    • It is impossible to operate EasyGate UMTS Data on places exposed to direct solar radiation or near heat sources. • EasyGate UMTS Data is designed for indoor use. It may not be exposed to rain, flowing water, condensed moisture, fog, etc.

  • Page 8: External Antenna Connection

    Use the modern USIM cards designed for UMTS networks to avoid problems Open the USIM card holder on EasyGate UMTS Data’s backside, insert the USIM card and close it. Select the required UMTS provider and USIM card services, such as call forwarding, call barring, preferred networks, SMS service centre, etc.

  • Page 9: Connector Description

    2.5. Telephone Line Connection 2.5.1. PBX Connection Connect EasyGate UMTS Data to a free CO line of your PBX. Configure your PBX in such a manner that UMTS/GSM outgoing calls are routed to EasyGate UMTS Data. EasyGate UMTS Data is equipped with the FSK-based CLIP function. If your PBX is able to process the caller’s ID, you are advised to enable this function.

  • Page 10: Easygate Umts Data Status Indication

    3.2. Telephone Line Tones 3.2.1. Operational Tones EasyGate UMTS Data sends tones to the telephone line to indicate the line status. Dial tone: continuous or Morse A : • EasyGate UMTS Data is registered to UMTS/GSM network and ready to receive dialing.
  • Page 11 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Dialing end signaling: • Dialing reception has been terminated. Connection is being established. PIN tone: • Enter the PIN code. • This tone is transmitted upon power up if the PIN has to be entered manually. PUK tone: •...

  • Page 12: Usim Card Pin Protection

    EasyGate UMTS Data power up. 4.3. Automatic PIN Entering You need not enter the PIN upon power up if it is stored in EasyGate UMTS Data – it is entered automatically. This function is convenient in case of power failure; EasyGate UMTS Data is operable in a short time after power recovery without any intervention by the operating staff.

  • Page 13: Voice Function

    5 s (programmable parameter). The number is evaluated as complete and transmitted to the network after this timeout. 3. A short delay follows the last-dialed digit for EasyGate UMTS Data to await further dialing. Then, the dialing end is signaled and connection is established.

  • Page 14: Automatic Call ("Baby Call")

    If the Baby Call function is enabled, a pre-programmed period of time is counted down after off-hook. If you do not start dialing within this timeout, EasyGate UMTS Data signals dialing end and starts establishing a call to the pre-programmed number automatically –...

  • Page 15: Call Forwarding

    ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM 5.6. Call forwarding For forwarding activation you must specify <Telephone number> the calls will be forwarded to. You may specify <Call type>, if you want to forward specified call type only.

  • Page 16: Call Waiting

    ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Activation for all call types and specified delay time: <Telephone number> <Delay time> Activation for selected call type and specified delay time: <Telephone number> <Call type> <Delay time> Deactivation: Status check: 5.6.4.
  • Page 17 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM To terminate all held calls, or reject waiting call dial: To terminating active call and accept the held or waiting call dial: To place the active call on hold and accept the held or waiting call (switching between two calls) dial: To place all held calls to active calls and set up conference call dial: To connect the two calls (active and held) and disconnect the EasyGate from both...

  • Page 18: Usb Interface

    The complete serial interface RS-232C on a 9-pin connector is identical with any external modem. The transmission rate is 115200 bps. Do not change it. (EasyGate UMTS Data doesn’t supports autobauding.). The transmission setup must be 8 bits, no parity and one STOP bit (8N1).

  • Page 19: Programming

    The program is designed for EasyGate UMTS Data parameter programming. It can read configuration data from the memory and store them in EasyGate UMTS Data. Moreover, all parameters can be saved in your PC file for backup or saving into another...

  • Page 20: Easygate Umts Data Parameter Programming

    ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM 8. EasyGate UMTS Data Parameter Programming All EasyGate UMTS Data parameters have such default values that meet most users’ demands and need not be changed. To change EasyGate UMTS Data parameters in spite of that, you can either: •...

  • Page 21: Pc Based Programming

    2. Click on the CD-ROM icon for data handling on the left-hand side. 3. Load data from EasyGate UMTS Data – if EasyGate UMTS Data is not in its special programming mode, you are invited to switch EasyGate UMTS Data off and on again.
  • Page 22 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM 7. Save data into EasyGate UMTS Data – if EasyGate UMTS Data is not in its special programming mode, you are invited to switch EasyGate UMTS Data off and on again.
  • Page 23 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM UMTS Date is made in version B only. After connecting EasyGate UMTS Data to PC the program checks the version settings. If the version is set wrong, the program asks...

  • Page 24: Parameter Tables

    All programmable parameters are listed in this section. Each parameter is accompanied with the unit used, function number (if available) for programming via a telephone line, description of EasyGate UMTS Data's behavior, setting options, setting step and default (initialization) value.
  • Page 25 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM None -EasyGate doesn't send tariff pulse as signaling of call start/end. Call end -EasyGate sends tariff pulse when call ends. Call start -EasyGate sends tariff pulse when call starts. Call start and end -EasyGate sends tariff pulse when call starts and ends too.
  • Page 26 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Busy tone - cadence Function No.: Busy tone cadence setting. Setting options: 330/330 ms -cadence 330 ms tone, 330 ms pause 200/200 ms -cadence 200 ms tone, 200 ms pause 250/250 ms -cadence 250 ms tone, 250 ms pause 375/375 ms...
  • Page 27 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Ringing signal – cadence DATA/Fax Function No.: This setting doesn’t influence EasyGate UMTS Data. EasyGate UMTS Data doesn’t support Data/Fax calls. CLIP Function No.: Set this item to enable/disable identification of a telephone line calling from a GSM network.
  • Page 28 • Set tariff metering for the given prefix. Every table line includes a prefix (of variable length) plus parameters that define EasyGate UMTS Data's behavior in case the beginning of the dialed number matches this prefix. The table can contain up to 20 different prefixes.
  • Page 29 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Routing table enable Function No.: Enable the use of the routing table with this parameter. Disabling this parameter you put the table out of use. Setting options: YES/NO Default setting: NO Prefix Function No.: A prefix identifying the call type (GSM, trunk call, free call, etc.).
  • Page 30 Setting step: Default setting: 0 s 8.3.3. Data/Fax routing parameters This setting doesn’t influence EasyGate UMTS Data. EasyGate UMTS Data doesn’t support Data/Fax calls. 8.3.4. SMS Sending Input Parameters This setting doesn’t influence EasyGate UMTS Data. EasyGate UMTS Data doesn’t have SMS sending input.
  • Page 31 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Setting options: -Disable -The GSM module logs out of a foreign network and attempts to register again in within 5 minutes. -Enable -EasyGate works in any GSM network. Default setting: Disable Incoming calls enable Function No.: With this parameter you can reject all incoming calls.
  • Page 32 ООО "СИМЭНЕРГО" Tel: 8-800-250-77-25 Tel: +7 8442 98-77-25 ICQ: 832220 WWW.SIMENERGO.COM Credit value position in received SMS Function No.: If there are more numbers except credit value in text answer (e.g. date, time and so on) EasyGate seeks the number corresponding with credit value from given position in text.
  • Page 33 EasyGate UMTS Data firmware version - EasyGate UMTS Data central processor program version. The manufacturer can issue upgrades to extend functions. To load new firmware into EasyGate UMTS Data use the Upgrade function. Keep communicating with the manufacturer. Serial number Function No.:...
  • Page 34 Initialization of all parameters related to the UMTS/GSM network and USIM card (except for the PIN code). SMS input initialization Function No.: Initialization of all parameters for SMS sending upon SMS input activation. Global initialization Function No.: Initialization of all EasyGate UMTS Data parameters including the PIN and service password.
  • Page 35 PIN - value Function No.: Fill in the PIN value for automatic PIN entering upon EasyGate UMTS Data power up. It is applied only if the USIM card is PIN secured. If the given PIN fails to match the USIM, it is deleted automatically. If entered via a telephone line upon EasyGate UMTS Data start, the PIN is stored automatically.

  • Page 36: Troubleshooting

    • EasyGate UMTS Data is in the special PCManager-based programming mode - exit the PCManager to reset EasyGate UMTS Data. • Try to switch EasyGate UMTS Data off and on, the LEDs should go off in 3s and signal the status of EasyGate UMTS Data.

  • Page 37: List Of Abbreviations

    • - PC serial port • DTMF - Dual Tone Multifrequency - tone dialing • - EasyGate UMTS Data • - Frequency Shift Keying • - an interface electrically identical with a standard telephone (opposite side = FXS interface) •...

  • Page 38: Technical Parameters - Umts Easygate

    USB 2.0 full speed interface, RS-232C(only for upgrade) Connector USB type B, D-Sub 9 pins(only for upgrade) OTHERS: Dimensions (w/o connectors) 170 x 130 x 45 mm Operating temperature 0°C to 45°C Operating status signaling 3 LEDs (on, GSM network, line) © 2006, 2N TELEKOMUNIKACE a.s.
