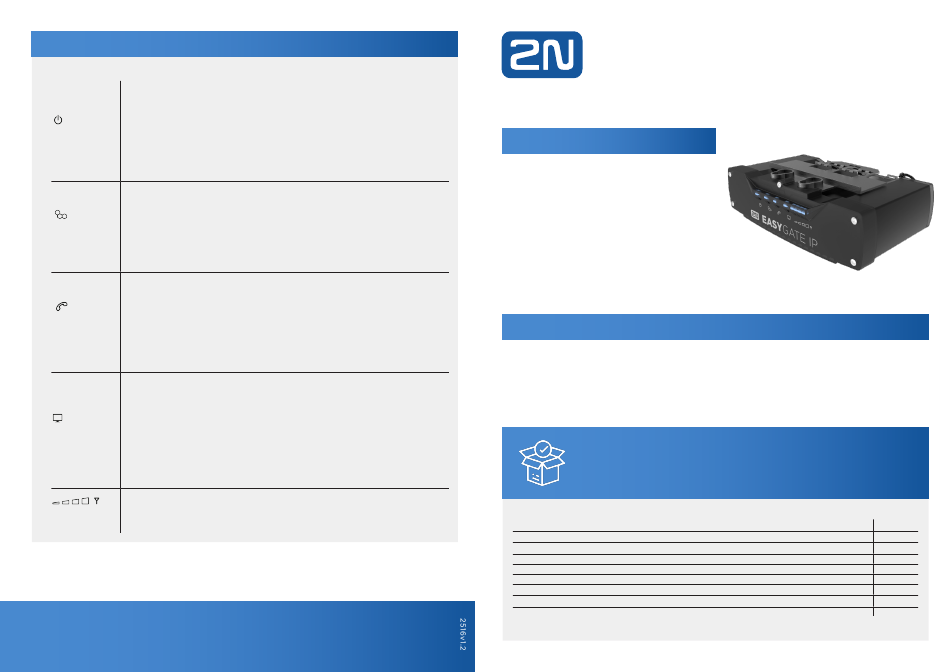

2N EasyGate IP Quick Manual

LED Indicators
• Blue – mains power
• Red – HW error
• Green – battery power
• Yellow – battery removal required, two-year life exceeded
• Yellow flashing once in 1 s (0.5 s / 0.5 s) – battery error
Power supply
• No light – device off
If an HW error is indicated by the red LED, request a remedy
or compensation from your distributor.
• Blue – primary SIM card used
• Yellow – secondary SIM card used
Network Function:
• Light on – connected to the network
• Flashing once in 1 s – disconnected from the network, SIM card detected
• Flashing once in 3 s – disconnected from the network, no response from SIM card
• Blue – SIP call
• Green – VoLTE call
• Yellow – call via a mobile voice channel
Line
Function:
• No light – onhook
• Flashing once in 1 s – onhook, dialing / incoming call (ringing) in progress
• Light on – active call
• Blue – connected to the 4G network
• Green – connected to the 3G network
• Yellow – connected to the 2G network
Data
Function:
• Flashing once in 3 s – Internet connection in progress
(criteria – connection to My2N)
• Flashing once in 1 s – SIP Proxy connection in progress
• Light on – connected
Signal Signaling of the 2G, 3G or 4G signal strength.
2N TELEKOMUNIKACE a.s. hereby declares that the 2N® EasyGate IP product is in compliance
with the 2014/53/EU and 2011/65/EU directives. Refer to www.2n.cz for the full wording of the EU
declaration of conformity.
2N Telekomunikace a.s., Modřanská 621, Prague 4, 143 01
www.2n.cz
4

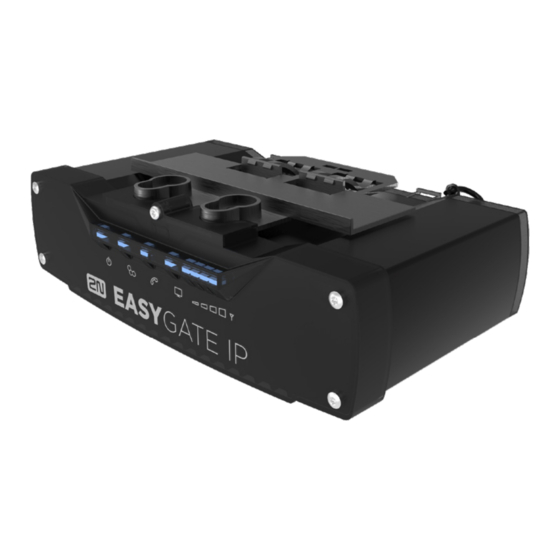

Product Introduction
2N® EasyGate IP is designed primarily for voice
transmission over VoIP (or VoLTE, GSM, UMTS)
between a mobile network and a connected FXO-
equipped terminal (PBX, phone, lift communicator,
answering machine, etc.). When connected to the
2N® Elevator Center cloud service, the gateway's
functionality is extended to include
management, auto provisioning, real-time device
state monitoring and others.
Basic Functions
• Calls (VoIP, VoLTE, CS call)
• Data transmission
• SMS sending
• Autonomous battery operation
The 2N® EasyGate IP package
includes the following:
2N® Easy Gate IP
DIN rail holder
Dowels (6 mm) with screws (4.5 x 40 mm)
Screw for fitting the device in the holder
Antenna
FXS cable
Power supply
Quick guide
NiMH type AA, 1.2 V / 2000 mAh battery
2N® EasyGate IP
Quick Guide
remote
• Remote management (2N® Elevator Center)
• automatic configuration
• bulk upgrade
• remote access
• real-time device state monitoring
1 pc
1 pc
2 + 2 pcs
1pc
1 pc
1 pc
1 pc
1 pc
4 pcs
