Installing The Front Fork Legs - Yamaha MBK X-MAX 300 2017 Service Manual

2
1
New
11.Fill:
• Front fork leg
(with the specified amount of the recom-
mended fork oil)
Recommended oil
Yamaha Suspension Oil G10
Quantity (left)
235.0 cm³ (7.95 US oz, 8.29
Imp.oz)
Quantity (right)
235.0 cm³ (7.95 US oz, 8.29
Imp.oz)

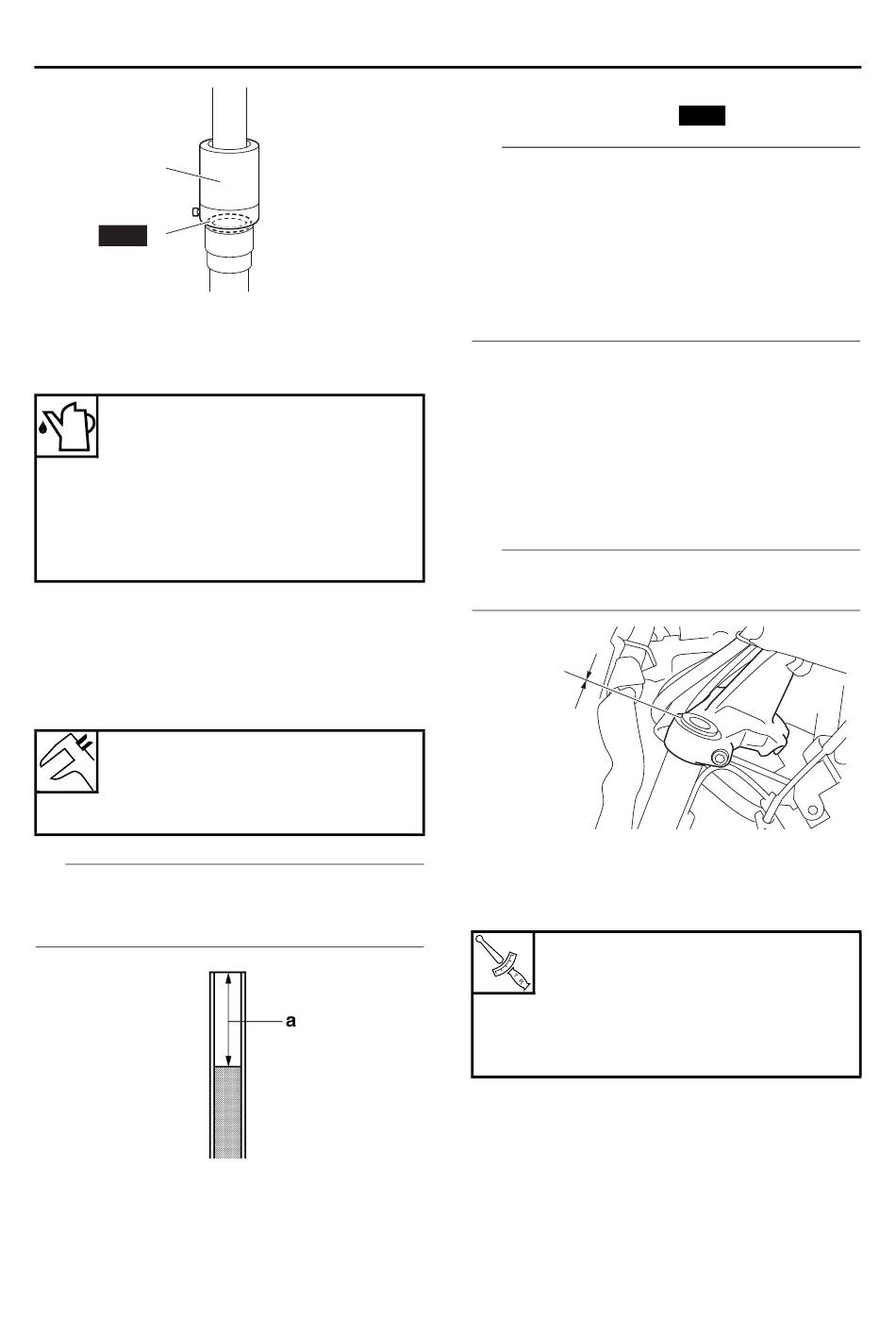

12.Measure:
• Front fork leg oil level "a"
(from the top of the inner tube, with the outer
tube fully compressed and without the fork
spring)
Out of specification → Correct.
Level (left)
155 mm (6.1 in)
Level (right)
155 mm (6.1 in)
TIP
• While filling the front fork leg, keep it upright.
• After filling, slowly pump the front fork leg up
and down to distribute the fork oil.
13.Install:
• Fork spring
• Spring seat
• Spacer
• Front fork cap bolt
(along with the O-ring
TIP
• Before installing the front fork cap bolt, lubri-
cate its O-ring with grease.
• Install the spring with the smaller pitch facing
down.
• Temporarily tighten the front fork cap bolt.
• Tighten the front fork cap bolt specified torque,
when installing the front fork with upper brack-
et.
EAS30210

INSTALLING THE FRONT FORK LEGS

The following procedure applies to both of the
front fork legs.
1. Install:
• Front fork leg
Temporarily tighten the lower bracket pinch
bolt.
TIP
Make sure the inner tube end is flush with the top
of the upper bracket.
2. Tighten:
• Lower bracket pinch bolt
• Upper bracket pinch bolt
• Front fork cap bolt
Lower bracket pinch bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
Upper bracket pinch bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
Front fork cap bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
4-86
FRONT FORK
)
New
