Installation
4
Installation
For detailed information about mounting the sensor, see the Sensor Brief Operating
Instructions → 3
4.1
Turning the display module
4.1.1

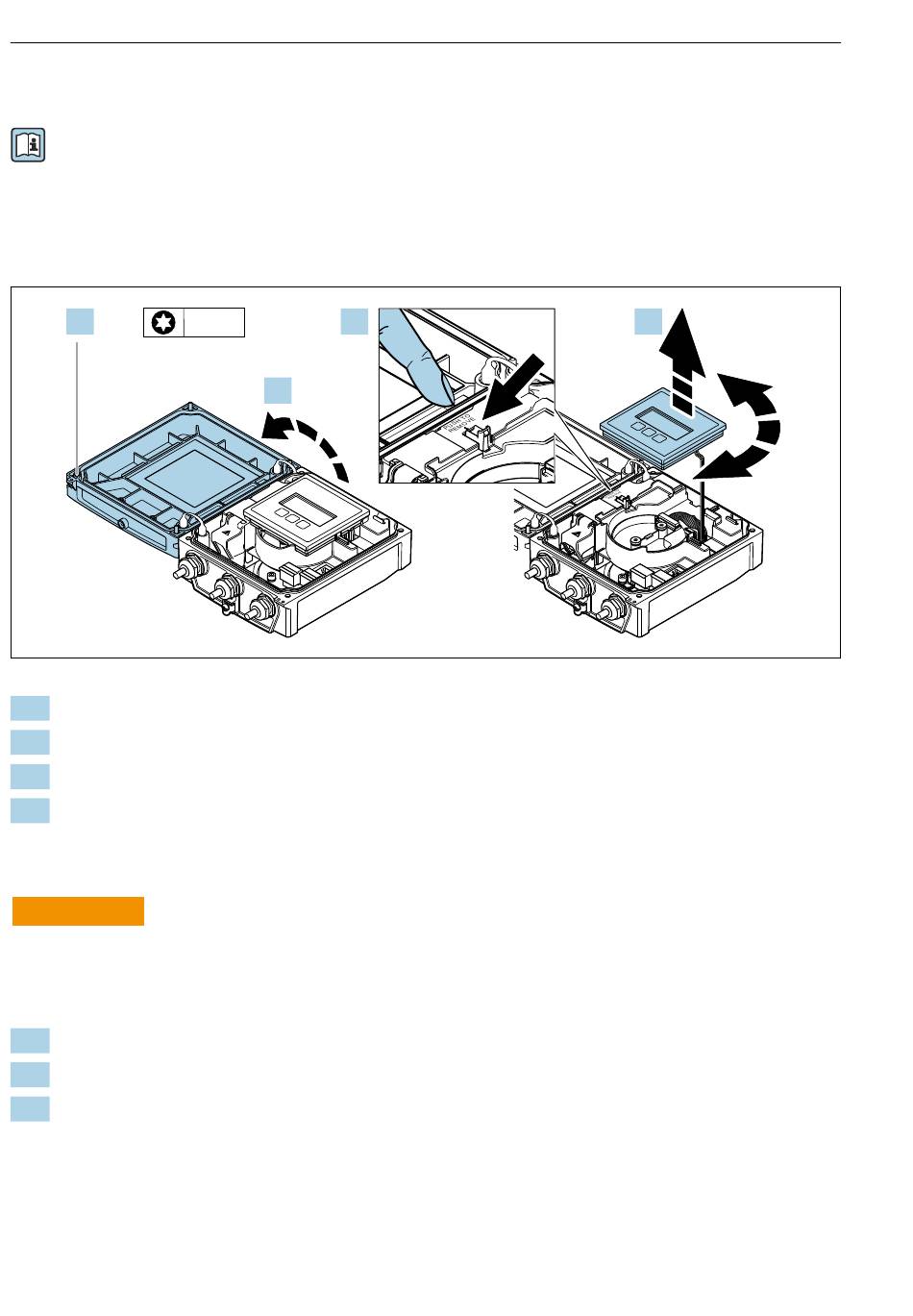

Opening the transmitter housing and turning the display module
1.
4 x
1.
Loosen the fixing screws of the housing cover.
2.
Open the housing cover.
3.
Unlock the display module.
4.
Pull out the display module and turn it to the desired position in increments of 90°.
4.1.2
Mounting the transmitter housing
WARNING
L
Excessive tightening torque applied to the fixing screws!
Damage to the transmitter.
‣
Tighten the fixing screws with the specified torques.
1.
Insert the display module and lock it when doing so.
2.
Close the housing cover.
3.
Tighten the fixing screws of the housing cover: tightening torque for aluminum housing
2.5 Nm (1.8 lbf ft) – plastic housing 1 Nm (0.7 lbf ft).
10
3.
TX 20
2.
Flowmeter Proline 400
4.
A0032091
Endress+Hauser
