Electrical connection
5. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules →  21.
6. Connect the cable in accordance with the terminal assignment .
7. Firmly tighten the cable glands.
8.
WARNING
L
Housing degree of protection may be voided due to insufficient sealing of the
housing.
‣
Screw in the screw without using any lubricant. The threads on the cover are coated
with a dry lubricant.
Reverse the procedure to reassemble the sensor.
Connecting the connecting cable to the transmitter
1.
4 x T 20
3.

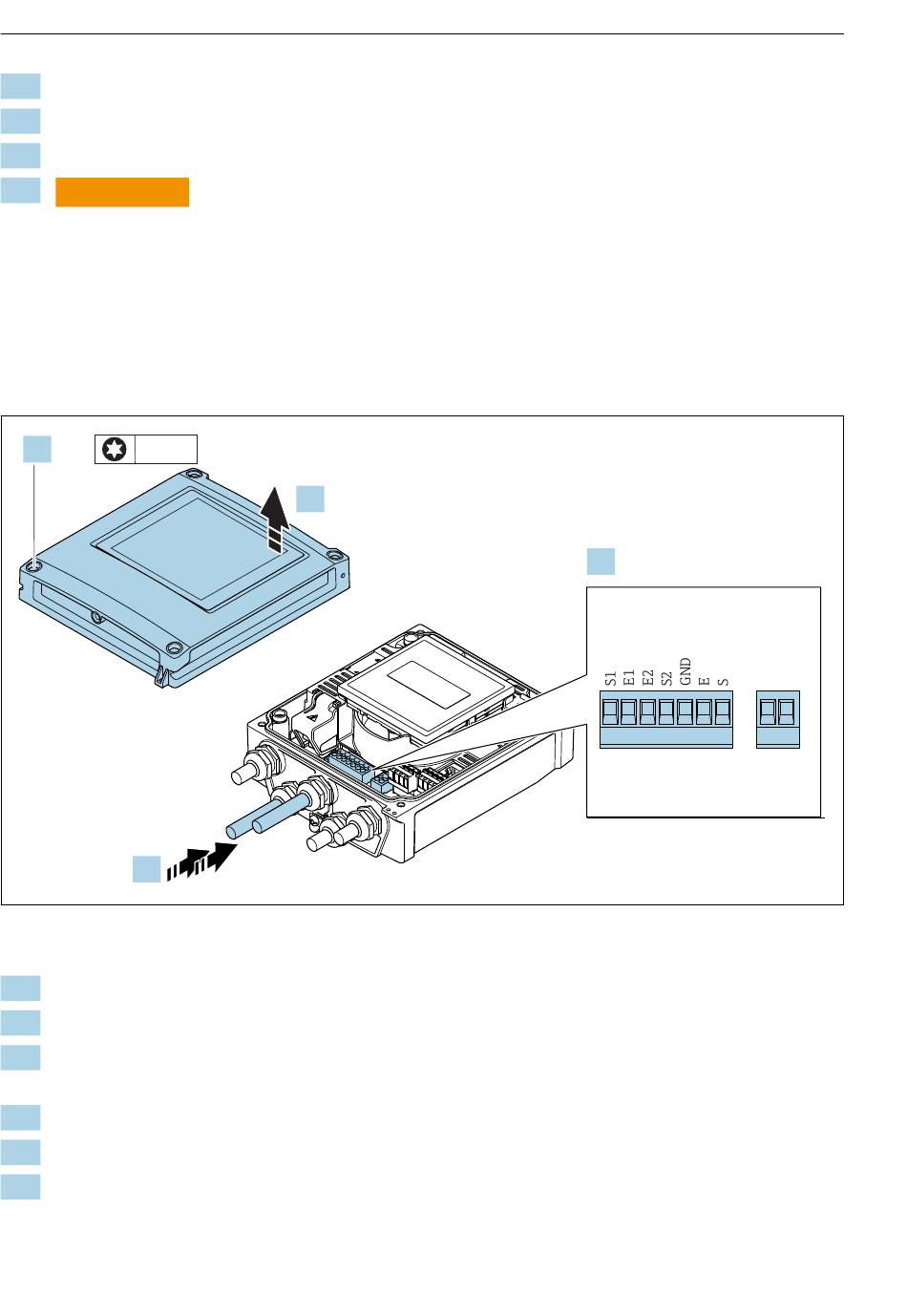

 5 Transmitter: main electronics module with terminals
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. Push the cable through the cable entry. To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules →  21.
5. Connect the cable in accordance with the terminal assignment .
6. Firmly tighten the cable glands.
26
2.
Flowmeter Proline 400
4.
6 5 7 8 4 37 36 42 41
