11. Lift the transmitter housing.
12. Turn the housing to the desired position in increments of 90°.
4.2.2 Mounting the sensor housing
NOTICE
Incorrect routing of the connecting cables between the sensor and transmitter in the
transmitter housing!
This can interfere with the measuring signal.
‣
Route the connecting cables directly at the level of the plugs.
WARNING
L
Excessive tightening torque applied to the fixing screws!
Damage to the transmitter.
‣
Tighten the fixing screws with the specified tightening torques.
1. Fit the transmitter housing.
2. Tighten the fixing screws of the transmitter housing: tightening torque
5.5 Nm (4.1 lbf ft).
3. Slide the electronics module into the main electronics module.
4. Insert the main electronics module.
5. Tighten the fixing screws of the main electronics module: tightening torque
1.5 Nm (1.1 lbf ft).
Endress+Hauser
12.
11.
Installation

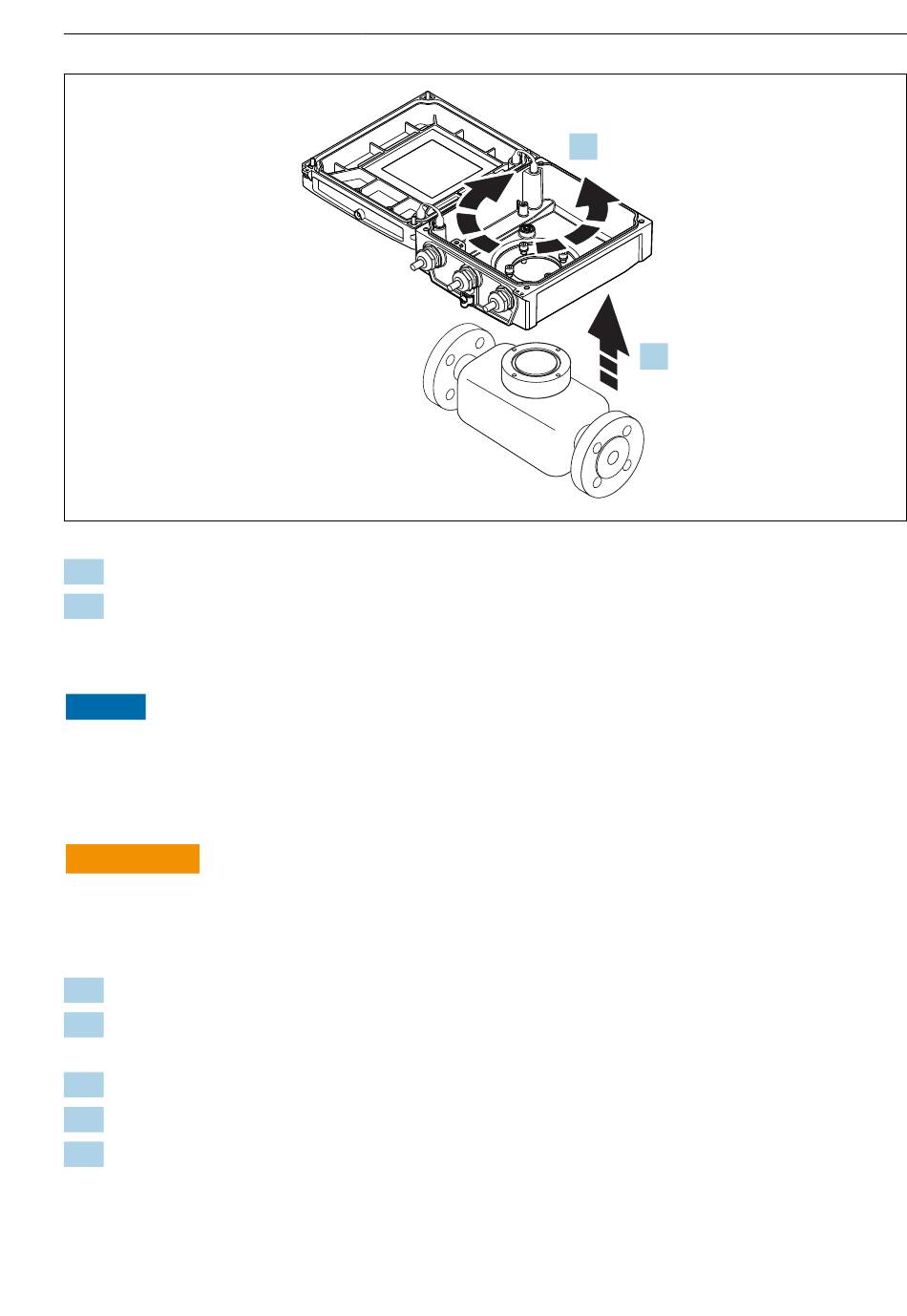

A0032132
