Turning the transmitter housing: Promag D
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned.
4.2.1

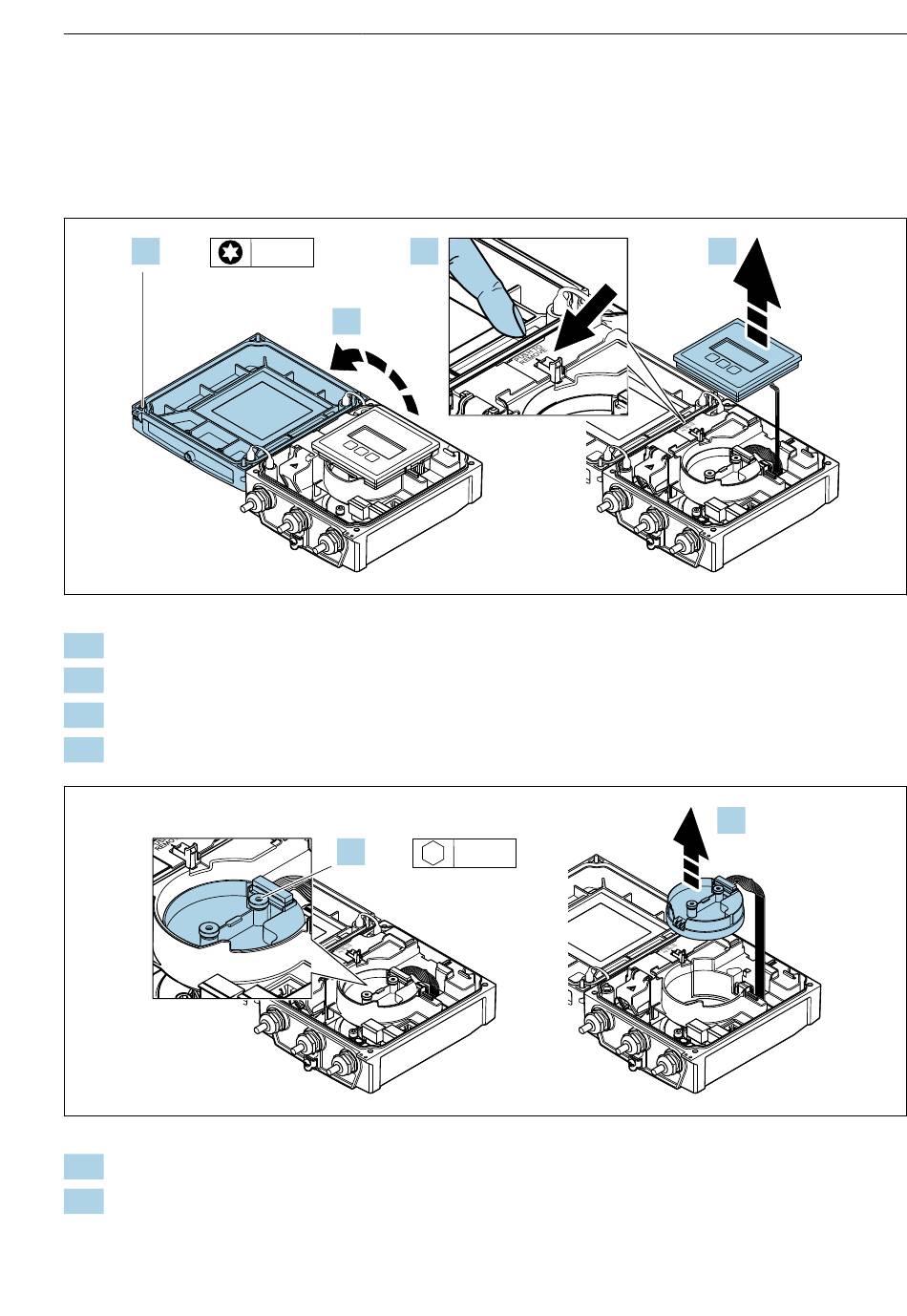

Disassembling and turning the transmitter housing
1.
4 x
1.
Loosen the fixing screws of the housing cover.
2.
Open the housing cover.
3.
Unlock the display module.
4.
Remove the display module.
5.
Loosen the fixing screws of the intelligent sensor electronics module.
6.
Remove the intelligent sensor electronics module.
Endress+Hauser
3.
TX 20
2.
5.
2 x
3 mm
Installation
4.
A0032086
6.
A0032087
11
