Appendix A - RMX 2000 A/B/C-Type Chassis Upgrade

Chassis upgrade is required for RMX 2000 systems with A/B/C-type chassis. For more information
see the RMX 2000 Hardware Guide, Chapter 2, RMX Chassis Types. If your shipment included a new
chassis, start with "Installing RMX 2000 Components" procedure on page 1-5.

Appendix B - Using the Ejector Lever(s)

Using the All Metal Ejector Lever
This ejector lever can be moved to 3 positions:
• Closed - The ejector levers are fully retracted and pushed up against the card's panel.
• Partially Open - For card powering down mode. Partially open the ejector lever(s) until the blue
HS LEDs on the card and the Control Unit start flashing. When the HS LED remains lit the card is
in a powered down mode and you can remove the card.
Warning!
Once the removal sequence is initiated and the HS LED flashes, the process cannot be terminated.
• Fully Open - The card is released from the RMX housing.

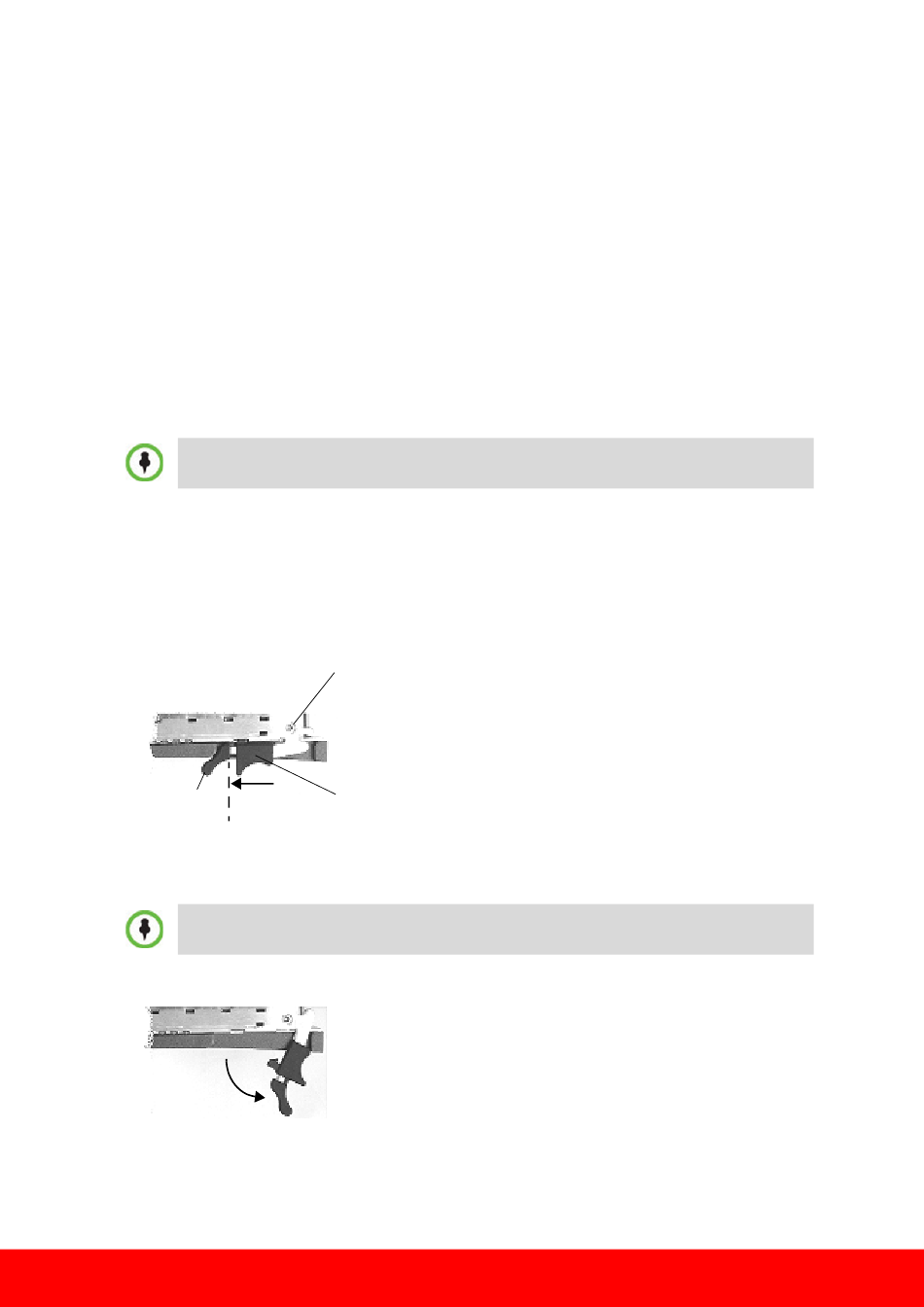

Using the Modified PMC Compatible Ejector Lever
This ejector lever can be moved to 3 positions:
• Closed/Locked - Ejector lever(s) are gently pushed up against the card's panel and is locked.
Ensure that the lock catch is in the standard closed position (shifted to the right as shown below)
Handle
• Partially Open - For card powering down mode. Partially open the ejector lever(s) until the blue
HS LEDs on the card and the Control Unit start flashing. When the HS LED remains lit the card is
in a powered down mode and you can remove the card
Warning!
Once the removal sequence is initiated and the HS LED flashes, the process cannot be terminated.
• Fully Open - In this position the card is released from the RMX housing and can be removed.
Closing the Lever - Make sure that the lever is in an open position
and push card close to the chassis till the lever engages. With your
index finger holding the "handle" and your thumb holding the catch
fully to left, push the card against the chassis whilst closing the lever.
Release Lock Catch and allow it to "click" into place, ensuring that the
card is properly placed against the chassis.
Unlocking the Lock Catch - With your index finger holding the
"handle" and your thumb shifting the catch to left, gently pull the handle
away from the chassis until the lever is "fully open"
Lever Fully Open - Pull the lever handle(s) to a
fully open position (approx. 70 degrees), as
shown here
