QNix 9500
®

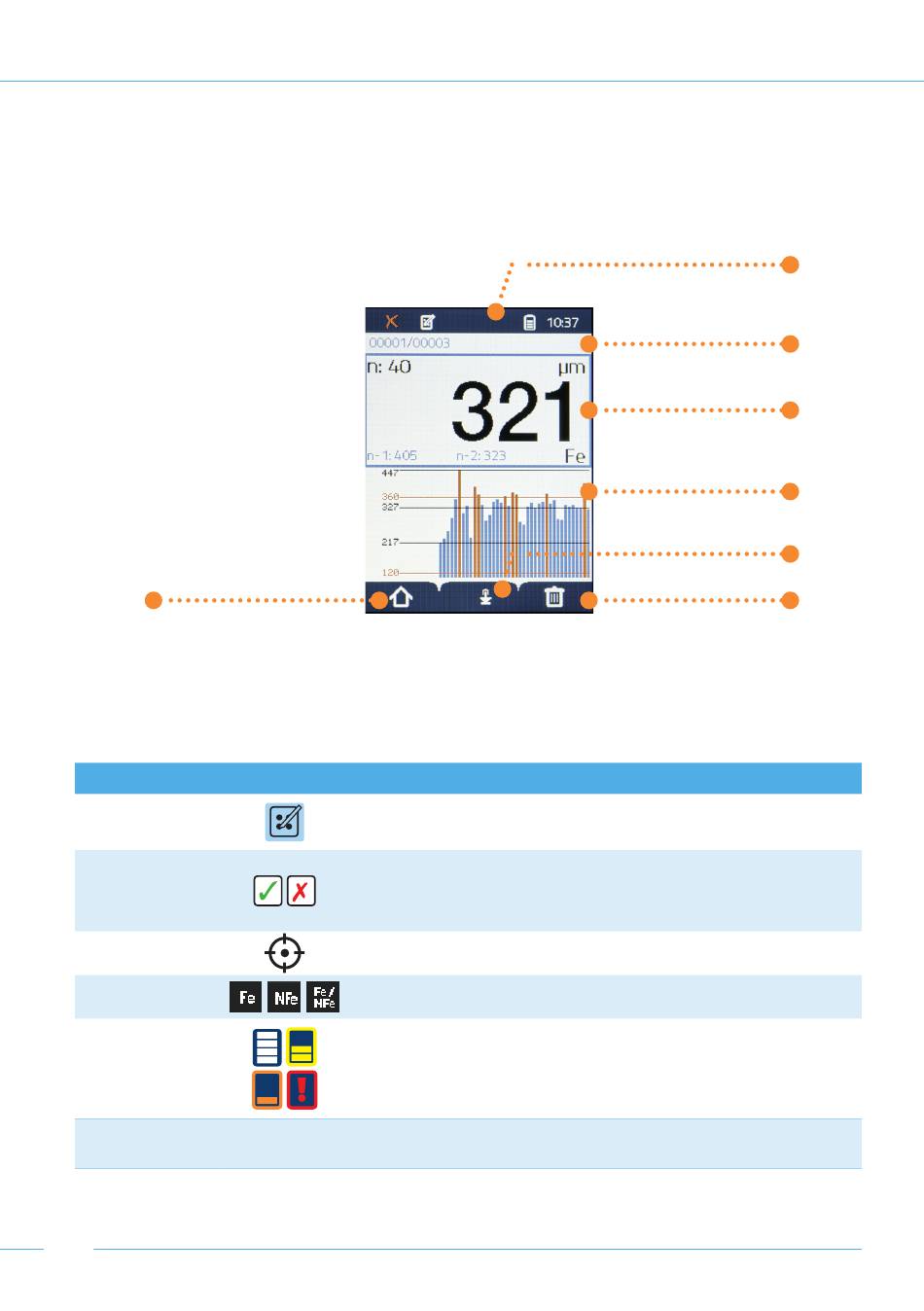

4.3 Measurement Display
The measurement display contains these areas
Menu button assignment
Depending on the context, the measurement display will contain the following information:
Section
Device status bar
Job / Area
22
Symbols Description
Areas are enabled. Measurements are saved to the enabled area.
Conformance display indicating conformance / nonconformance
with the selected limits; always pertains to the measurements in
an area
User's adjustment done
Current substrate setting is displayed
Battery level 100 % / 50 % / 25 % / empty
Note! When the batteries are below 25 %, a warning screen will
appear. Press „OK" to confirm the screen and replace the batteries
as soon as possible.
12:40 Clock
nnnnn/nnnnn Selected job and enabled area
Device status bar
Enabled job / area
Measurement area
Analysis area
Probe status field
Q button assignment
