QNix 9500
®
Notice Measurement results
During adjustment use the uncoated original substrate for the most accurate measurements.
Notice Error of measurement
Rough surfaces or dirt can cause errors of measurement.
Adjustment methods
Zeroing
1-Point
2-Point
Individual
Standardized
adjustment modes

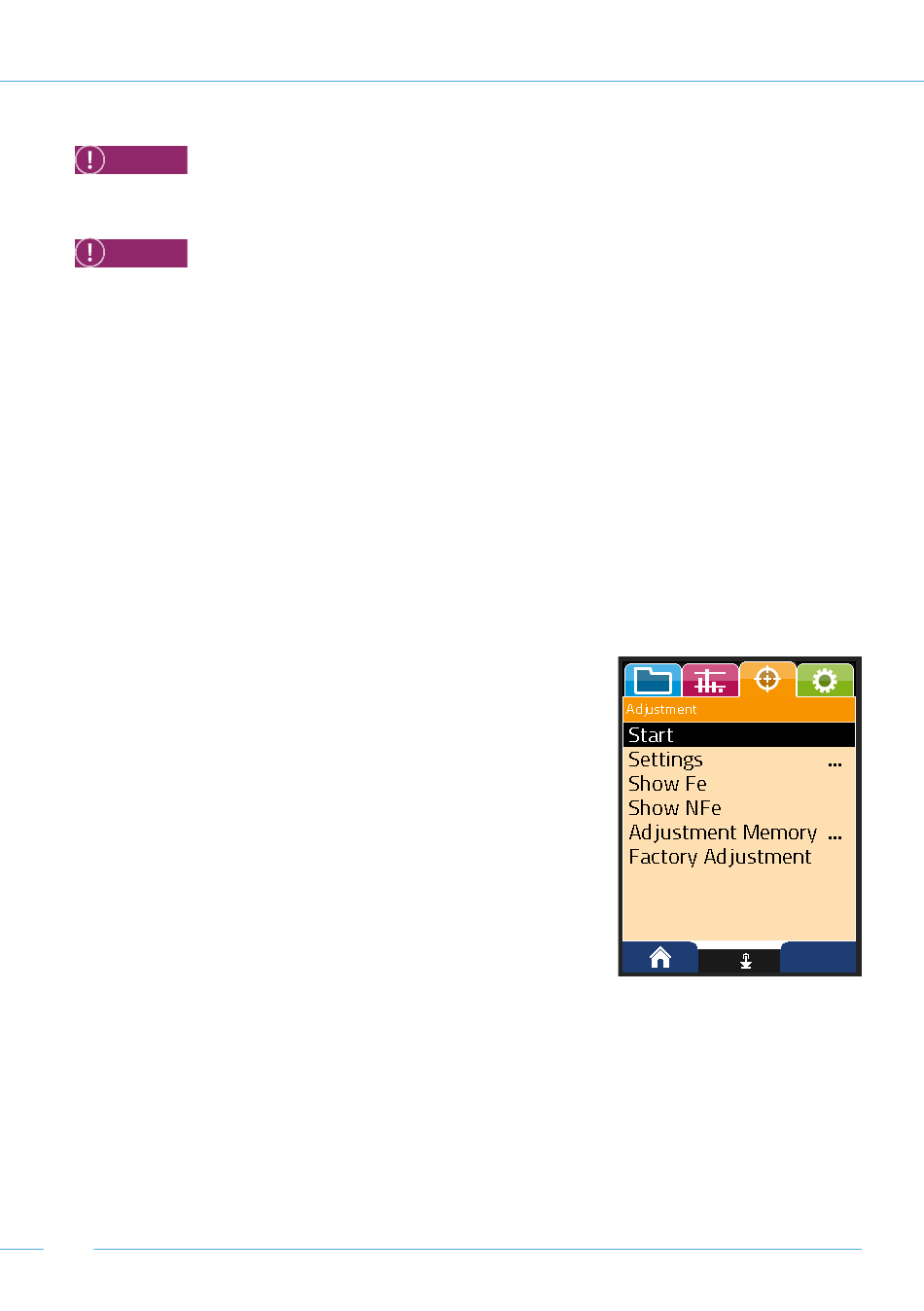

Setting adjustment parameters
In the „Adjustment" menu you can set the following parameters prior
to adjustment:
• Open the „Adjustment" menu
• Under „Settings", select the adjustment based on
the job or the limit set
• If necessary, adjust the parameters
The different adjustment methods are especially suitable for these measuring tasks:
1. Zeroing: for simple measurements on flat objects to be measured with uncoated substrate.
2. 1-Point: for simple measurements on flat objects to be measured with coated substrate of known
coating thickness.
3. 2-Point and individual: for special substrates and measuring object geometries with strong curvatures.
4. Standard based adjustments: for measuring tasks, subject to such standards
20
For zero point adjustment, simply place the probe on the uncoated original substra-
te. This adjustment is ideal for smooth surfaces.
For 1-point adjustment, select a suitable reference film close to the expectancy
range and a smooth, uncoated original substrate.
For 2-point adjustment, select two reference films of different thicknesses which
also include the expectancy range and a smooth, uncoated original substrate.
Here you can customise your adjustment method (only QNix® 9500P und P+)
Different ISO- and SSPC-standardized adjustment modes (only QNix® 9500P+)
