Print quality and color settings

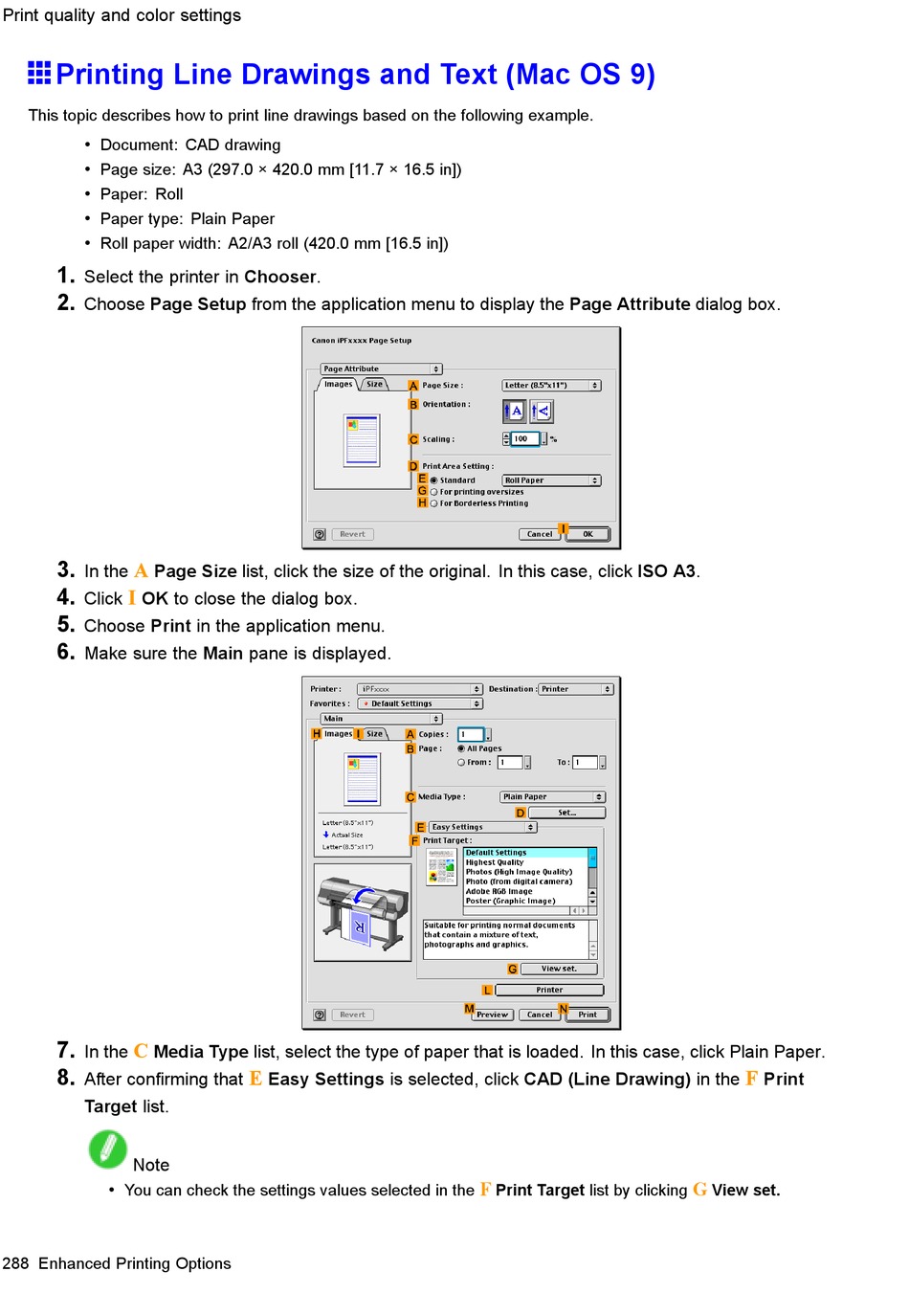

Printing Line Drawings and Text (Mac OS 9)
This topic describes how to print line drawings based on the following example.
•
Document: CAD drawing
•
Page size: A3 (297.0 × 420.0 mm [11.7 × 16.5 in])
•
Paper: Roll
•
Paper type: Plain Paper
•
Roll paper width: A2/A3 roll (420.0 mm [16.5 in])
1.
Select the printer in Chooser.
2.
Choose Page Setup from the application menu to display the Page Attribute dialog box.
3.
A
In the Page Size list, click the size of the original. In this case, click ISO A3.
4.
I
Click OK to close the dialog box.
5.
Choose Print in the application menu.
6.
Make sure the Main pane is displayed.
7.
C
In the Media Type list, select the type of paper that is loaded. In this case, click Plain Paper.
8.
After conrming that
Target list.
Note
•
You can check the settings values selected in the
288 Enhanced Printing Options
E
Easy Settings is selected, click CAD (Line Drawing) in the
F
Print Target list by clicking
F
Print
G
View set.
