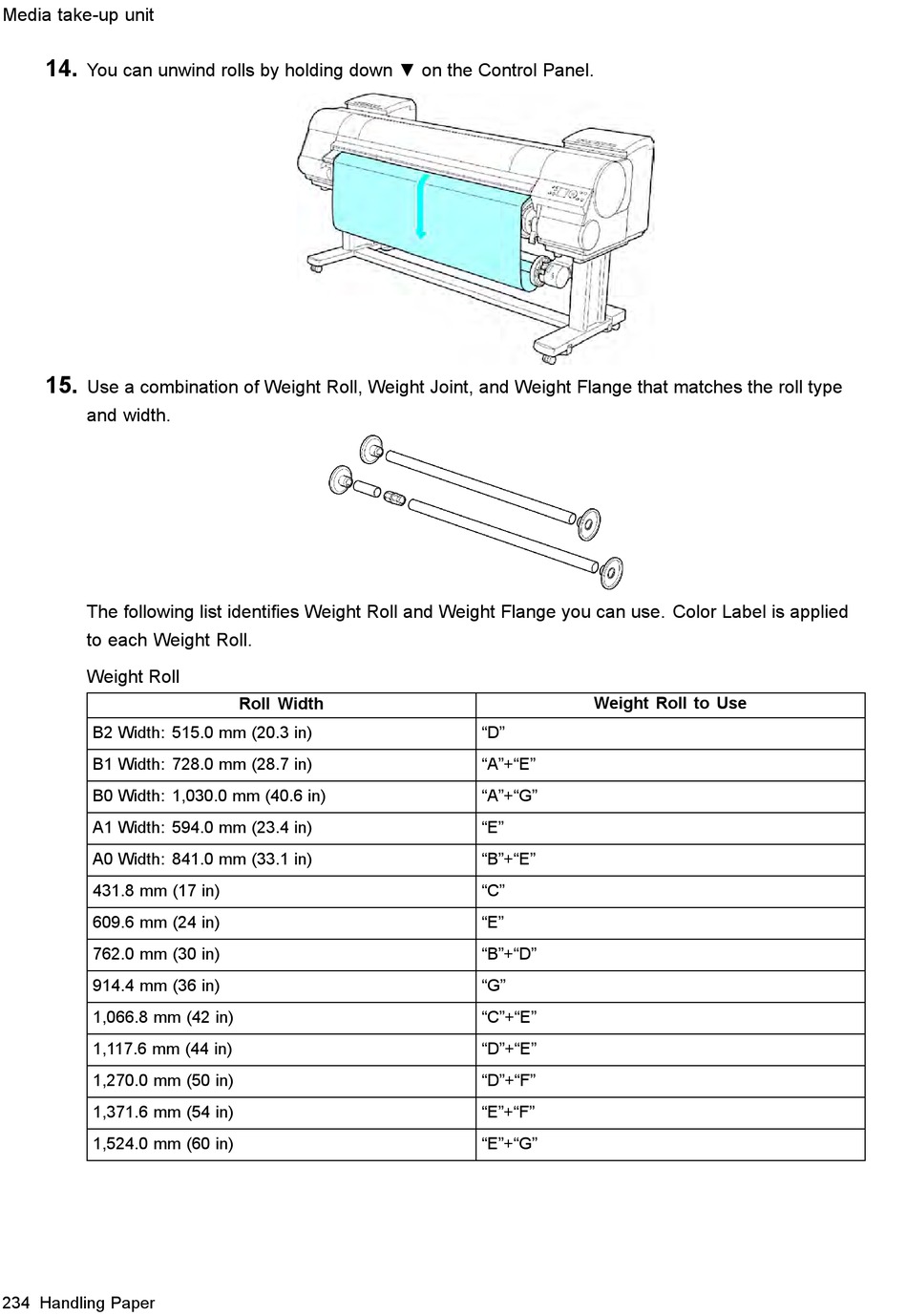

Canon imagePROGRAF IPF9100 User Manual page 248

Media take-up unit
14.
You can unwind rolls by holding down ▼ on the Control Panel.
15.
Use a combination of Weight Roll, Weight Joint, and Weight Flange that matches the roll type
and width.
The following list identies Weight Roll and Weight Flange you can use. Color Label is applied
to each Weight Roll.
Weight Roll
B2 Width: 515.0 mm (20.3 in)
B1 Width: 728.0 mm (28.7 in)
B0 Width: 1,030.0 mm (40.6 in)
A1 Width: 594.0 mm (23.4 in)
A0 Width: 841.0 mm (33.1 in)
431.8 mm (17 in)
609.6 mm (24 in)
762.0 mm (30 in)
914.4 mm (36 in)
1,066.8 mm (42 in)
1,117.6 mm (44 in)
1,270.0 mm (50 in)
1,371.6 mm (54 in)
1,524.0 mm (60 in)
234 Handling Paper
Roll Width
Weight Roll to Use
"D"
"A"+"E"
"A"+"G"
"E"
"B"+"E"
"C"
"E"
"B"+"D"
"G"
"C"+"E"
"D"+"E"
"D"+"F"
"E"+"F"
"E"+"G"
