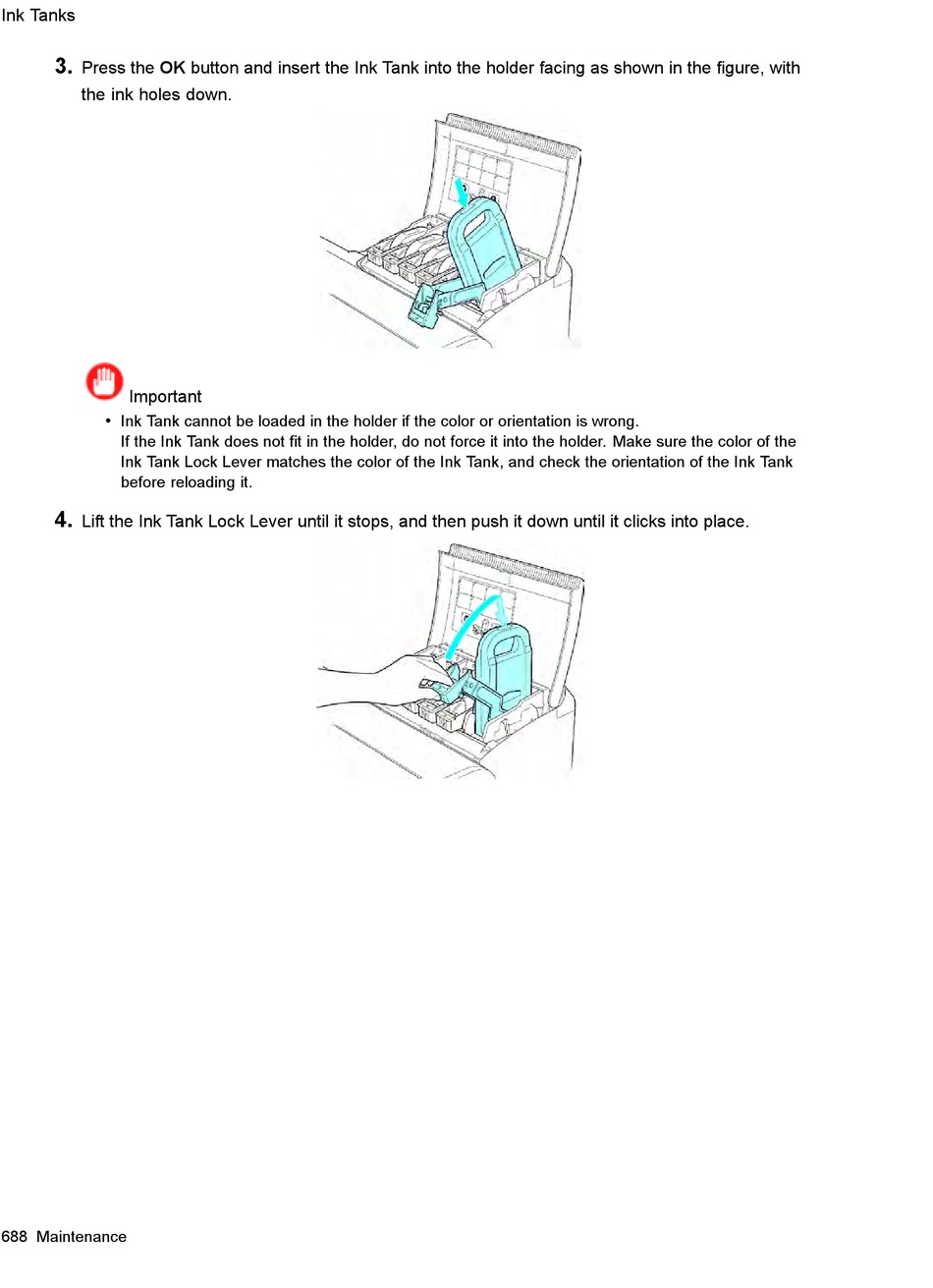

Ink Tanks
3.
Press the OK button and insert the Ink Tank into the holder facing as shown in the gure, with
the ink holes down.
Important
•
Ink Tank cannot be loaded in the holder if the color or orientation is wrong.
If the Ink Tank does not t in the holder, do not force it into the holder. Make sure the color of the
Ink Tank Lock Lever matches the color of the Ink Tank, and check the orientation of the Ink Tank
before reloading it.
4.
Lift the Ink Tank Lock Lever until it stops, and then push it down until it clicks into place.
688 Maintenance
