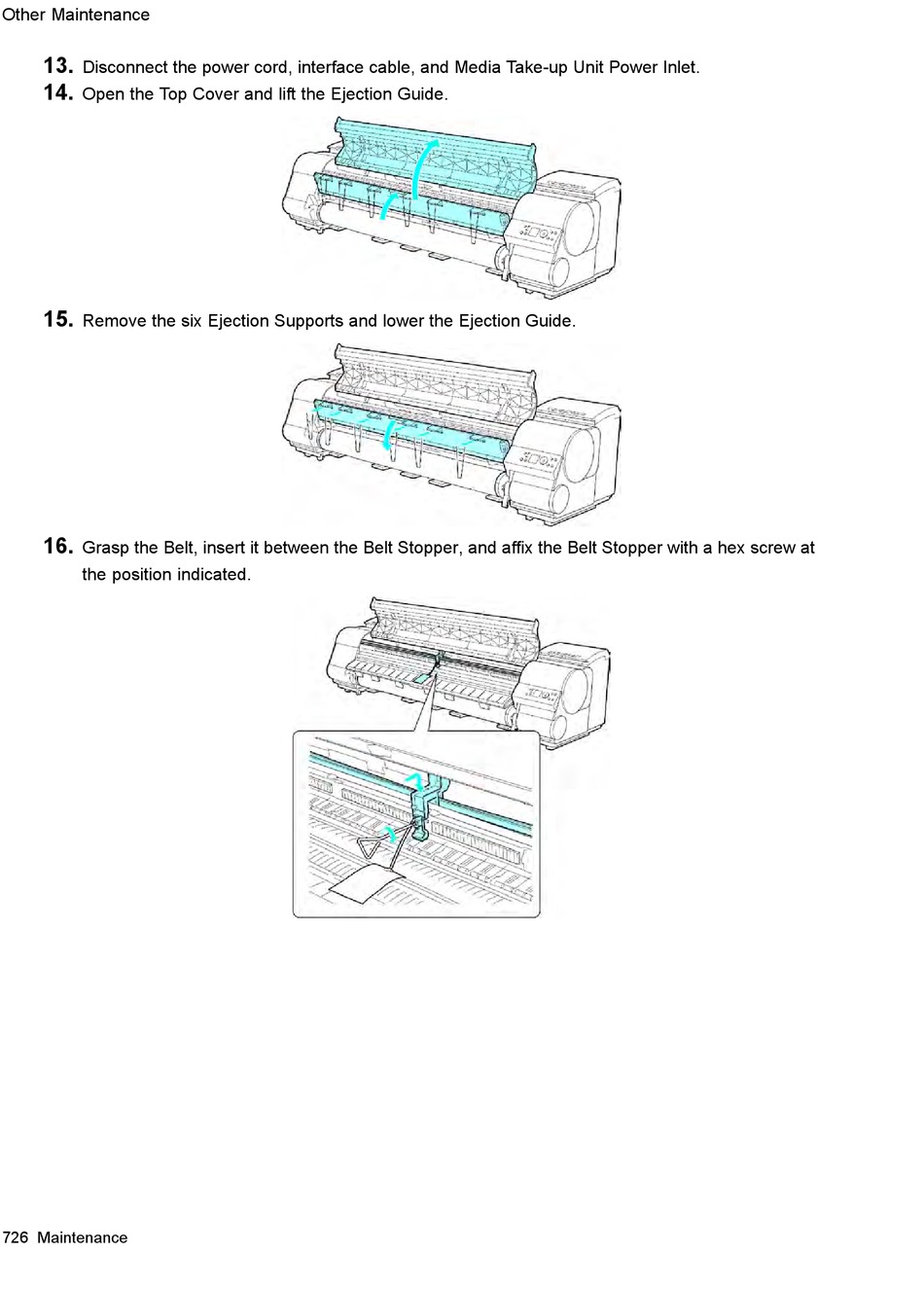

Other Maintenance
13.
Disconnect the power cord, interface cable, and Media Take-up Unit Power Inlet.
14.
Open the Top Cover and lift the Ejection Guide.
15.
Remove the six Ejection Supports and lower the Ejection Guide.
16.
Grasp the Belt, insert it between the Belt Stopper, and afx the Belt Stopper with a hex screw at
the position indicated.
726 Maintenance
