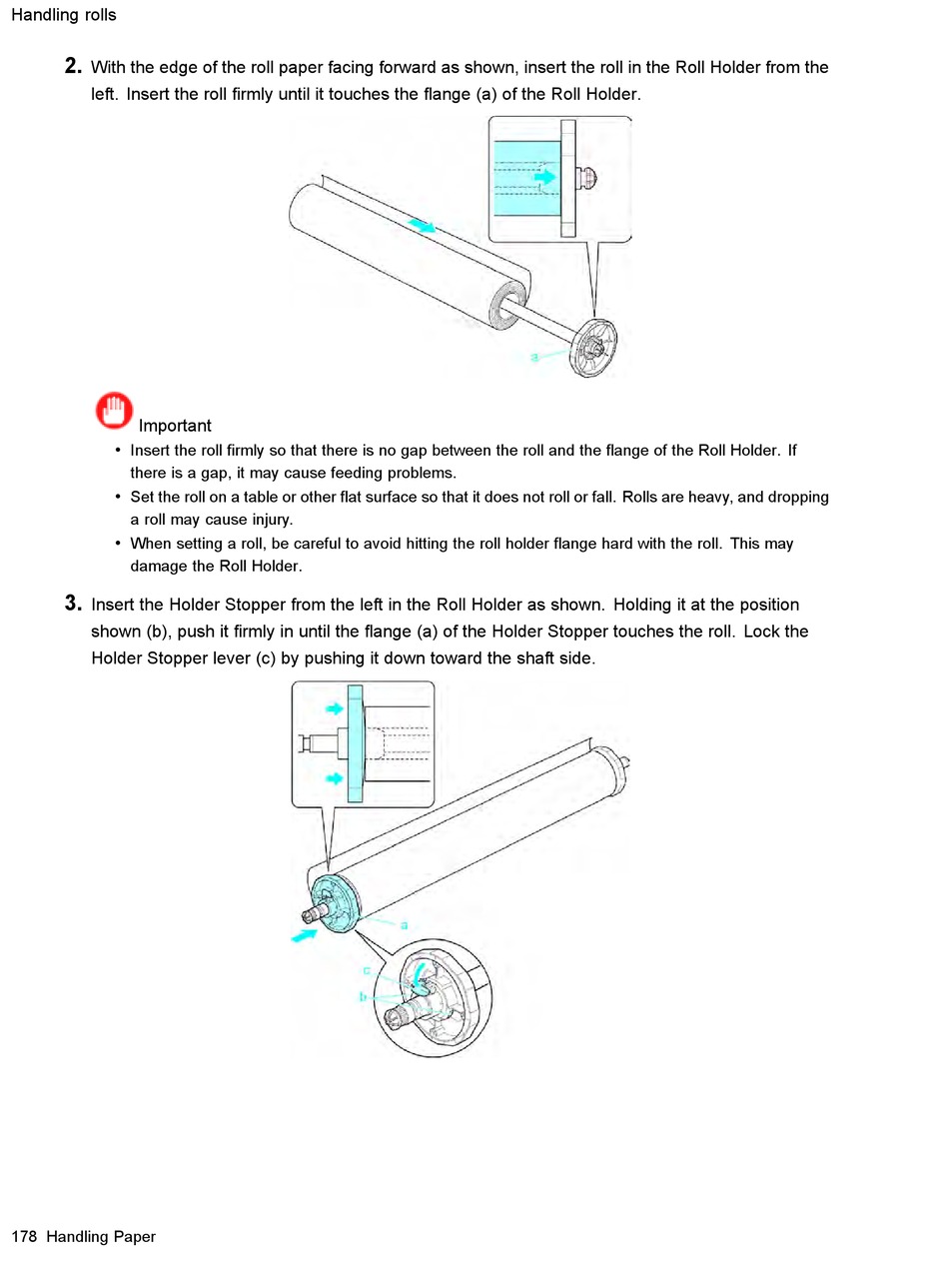

Handling rolls
2.
With the edge of the roll paper facing forward as shown, insert the roll in the Roll Holder from the
left. Insert the roll rmly until it touches the ange (a) of the Roll Holder.
Important
•
Insert the roll rmly so that there is no gap between the roll and the ange of the Roll Holder. If
there is a gap, it may cause feeding problems.
•
Set the roll on a table or other at surface so that it does not roll or fall. Rolls are heavy, and dropping
a roll may cause injury.
•
When setting a roll, be careful to avoid hitting the roll holder ange hard with the roll. This may
damage the Roll Holder.
3.
Insert the Holder Stopper from the left in the Roll Holder as shown. Holding it at the position
shown (b), push it rmly in until the ange (a) of the Holder Stopper touches the roll. Lock the
Holder Stopper lever (c) by pushing it down toward the shaft side.
178 Handling Paper
