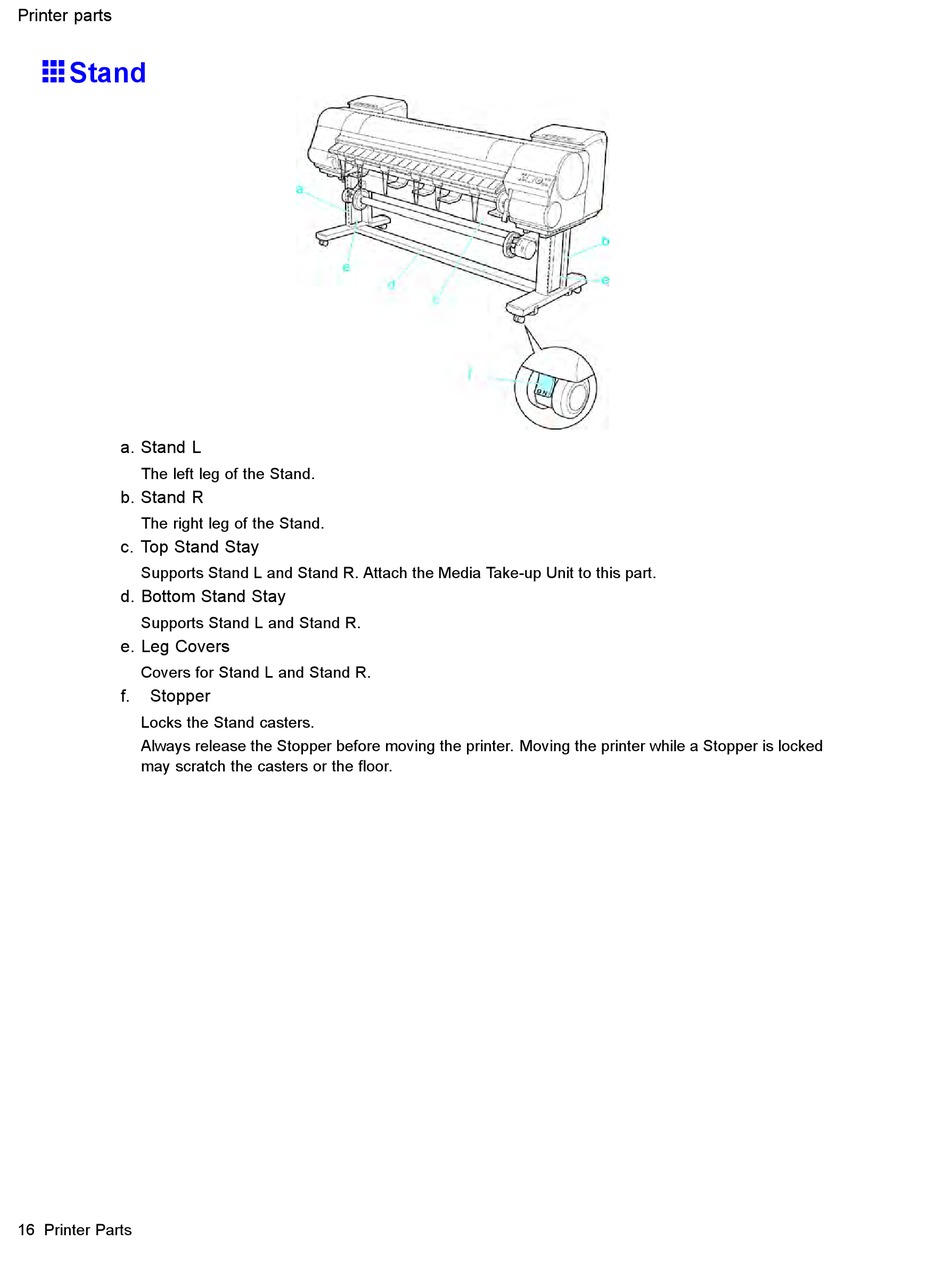

Printer parts

Stand

a. Stand L
The left leg of the Stand.
b. Stand R
The right leg of the Stand.
c. Top Stand Stay
Supports Stand L and Stand R. Attach the Media Take-up Unit to this part.
d. Bottom Stand Stay
Supports Stand L and Stand R.
e. Leg Covers
Covers for Stand L and Stand R.
f. Stopper
Locks the Stand casters.
Always release the Stopper before moving the printer. Moving the printer while a Stopper is locked
may scratch the casters or the oor.
