7.9. Control panel (rear side) connectors pin-out

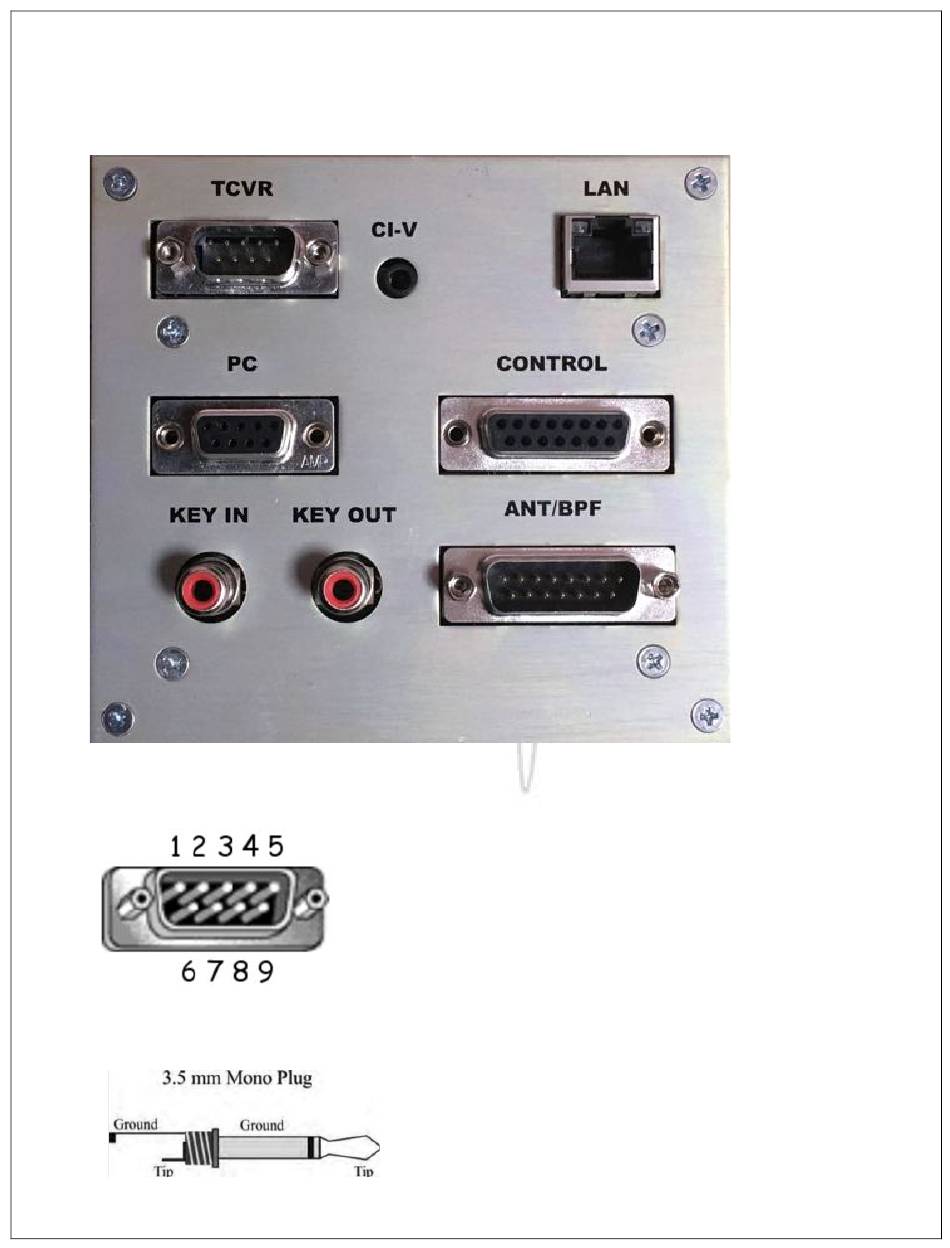

TCVR connector DB 9 male
CI-V connector
RS232 connection with TCVR. For CAT communication connect pin 2
RX-D, pin 3 TX-D and pin 5 GROUND
Use CI-V connection for communication with ICOM type
transceiver. Signal CI-V is connected to the Tip.
