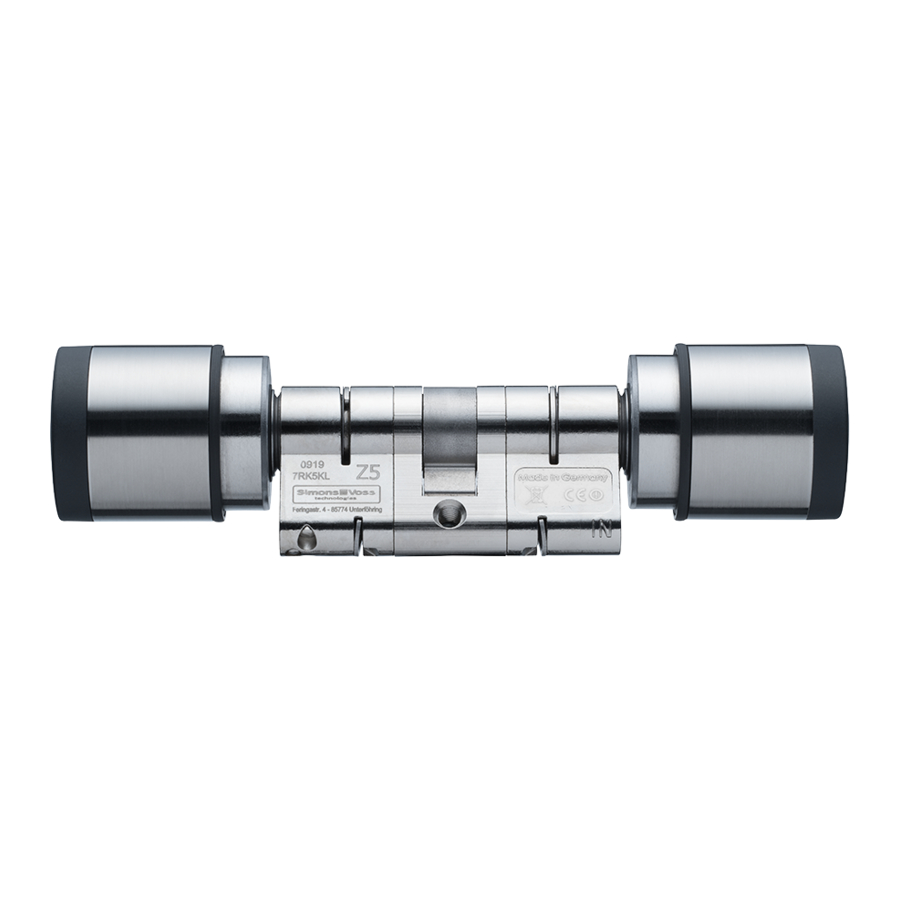

Simons Voss Technologies SmartIntego Cylinder AX Modularity Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SmartIntego Cylinder AX
Modularity
Manual
23.06.2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartIntego Cylinder AX Modularity and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simons Voss Technologies SmartIntego Cylinder AX Modularity

Summary of Contents for Simons Voss Technologies SmartIntego Cylinder AX Modularity

  • Page 1 SmartIntego Cylinder AX Modularity Manual 23.06.2021...

  • Page 2: Table Of Contents

    SmartIntego Cylinder AX Modularity Contents (Manual) 2 / 62 Contents General safety instructions........................ 3 Product-specific safety instructions.................... 5 Accessories and tools.......................... 6 Extend Cylinder AX ............................ 8 Shorten Cylinder AX .......................... 20 Combine CO cylinders to FD......................... 32 Reduce CO cylinders to HZ ........................ 48...

  • Page 3: General Safety Instructions

    SmartIntego Cylinder AX Modularity 1. General safety instructions (Manual) 3 / 62 1 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION...
  • Page 4 SmartIntego Cylinder AX Modularity 1. General safety instructions (Manual) 4 / 62 Incorrect installation SimonsVoss Technologies GmbH accepts no liability for damage caused to doors or compon- ents due to incorrect fitting or installation. Modifications or further technical developments cannot be excluded and may be implemented without notice.

  • Page 5: Product-Specific Safety Instructions

    SmartIntego Cylinder AX Modularity 2. Product-specific safety instructions (Manual) 5 / 62 2 Product-specific safety instructions WARNING Malfunction of the anti-panic function due to unauthorised manipulation The length of the Cylinder AX can be modified. If the AP side is removed, the anti-panic unit may be damaged.

  • Page 6: Accessories And Tools

    SmartIntego Cylinder AX Modularity 3. Accessories and tools (Manual) 6 / 62 3 Accessories and tools The profile cylinder can be extended and shortened with the following parts: Core extension of the Extension bolt Profile extension profile Z5.PROFILE.05:  5 mm Z5.CORE.05: 5 mm...
  • Page 7 SmartIntego Cylinder AX Modularity 3. Accessories and tools (Manual) 7 / 62...

  • Page 8: Extend Cylinder Ax

    SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 8 / 62 4 Extend Cylinder AX The core extension and profile extension must be the same length. You also need an extension bolt for the desired length. ü Extractor for releasing the clamp Spacer for aligning the extension bolt ü...
  • Page 9 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 9 / 62 2. Hook the tip of the extractor into the clamp. 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 10 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 10 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 11 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 11 / 62 5. Disassemble the two cylinder halves.
  • Page 12 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 12 / 62 6. Use the extractor to unscrew the extension bolt. 7. Insert suitable core extensions.
  • Page 13 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 13 / 62 8. Attach suitable profile extensions. 9. Place the spacer.
  • Page 14 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 14 / 62 10. Screw in a suitable extension bolt with the extractor until it rests on the spacer. NOTE Length on bolt head You will find a number on the bolt head. This number is the length of the...
  • Page 15 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 15 / 62 11. Reassemble the two cylinder halves. Extension bolt is protected against twisting.
  • Page 16 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 16 / 62 12. Pull the spacer off again.
  • Page 17 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 17 / 62 13. Push the halves together completely.
  • Page 18 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 18 / 62 14. Place the clip back into the slot of the profile cylinder with its lug facing the fastening screw and press the clamp with your thumb so that it can no longer fall out.
  • Page 19 SmartIntego Cylinder AX Modularity 4. Extend Cylinder AX (Manual) 19 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate. 16. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.

  • Page 20: Shorten Cylinder Ax

    SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 20 / 62 5 Shorten Cylinder AX You need a bolt for the desired length. ü Extractor for releasing the clamp ü Spacer for aligning the bolt Clamp block for pressing in the clamp ü...
  • Page 21 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 21 / 62 2. Hook the tip of the extractor into the clamp. 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 22 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 22 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 23 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 23 / 62 5. Disassemble the two cylinder halves.
  • Page 24 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 24 / 62 6. Unscrew the bolt with the extractor. 7. Remove the profile extension.
  • Page 25 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 25 / 62 8. Remove the core extension. 9. Place the spacer.
  • Page 26 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 26 / 62 10. Screw in a suitable bolt with the extractor until it rests on the spacer. NOTE Length on bolt head You will find a number on the bolt head. This number is the length of the...
  • Page 27 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 27 / 62 11. Reassemble the two cylinder halves. Bolt is protected against twisting.
  • Page 28 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 28 / 62 12. Pull the spacer off again.
  • Page 29 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 29 / 62 13. Push the halves together completely.
  • Page 30 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 30 / 62 14. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw. 15. Insert the cylinder into the clamping block so that the profile cylinder...
  • Page 31 SmartIntego Cylinder AX Modularity 5. Shorten Cylinder AX (Manual) 31 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate. 16. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.

  • Page 32: Combine Co Cylinders To Fd

    SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 32 / 62 6 Combine CO cylinders to FD You can assemble a freely rotating AX cylinder from two AX comfort cylinders. Extractor for releasing the clamp ü Spacer for aligning the extension bolt ü...
  • Page 33 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 33 / 62 2. Hook the tip of the extractor into the clamp.
  • Page 34 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 34 / 62 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 35 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 35 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 36 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 36 / 62 5. Disassemble the two cylinder halves. First cylinder half prepared with centre piece and tappet piece.
  • Page 37 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 37 / 62...
  • Page 38 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 38 / 62 6. Place the second comfort cylinder AX in the thumb-turn assembly tool with the electronic thumb-turn facing upwards.
  • Page 39 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 39 / 62 7. Hook the tip of the extractor into the clamp.
  • Page 40 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 40 / 62 8. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 41 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 41 / 62 9. Pull the clamp completely out of the profile cylinder.
  • Page 42 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 42 / 62 10. Disassemble the two cylinder halves. Second cylinder half prepared without centre piece.
  • Page 43 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 43 / 62...
  • Page 44 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 44 / 62 11. Place the first cylinder half on the second cylinder half.
  • Page 45 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 45 / 62 12. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw. 13. Insert the cylinder into the clamping block so that the profile cylinder...
  • Page 46 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 46 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate.
  • Page 47 SmartIntego Cylinder AX Modularity 6. Combine CO cylinders to FD (Manual) 47 / 62 NOTE Freely rotating active/hybrid Digital Cylinder AX only with shortened range With freely rotating cylinders, the reader knobs may not have sufficient clearance at low cylinder lengths. Due to the range of the active techno- logy, the radio signal can also be unintentionally received by the second reader knob.

  • Page 48: Reduce Co Cylinders To Hz

    SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 48 / 62 7 Reduce CO cylinders to HZ You can use a special centre piece to assemble a half cylinder from an AX comfort cylinder or a freely rotating cylinder.
  • Page 49 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 49 / 62 2. Hook the tip of the extractor into the clamp.
  • Page 50 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 50 / 62 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 51 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 51 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 52 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 52 / 62 5. Disassemble the two cylinder halves. First cylinder half prepared without centre piece.
  • Page 53 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 53 / 62 6. Place the spacer on the half-cylinder centre piece.
  • Page 54 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 54 / 62 7. Screw in a suitable extension bolt with the extractor until it rests on the spacer. 8. Place the prepared cylinder half in the thumb-turn assembly tool.
  • Page 55 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 55 / 62 9. Place the half cylinder centre piece on the prepared cylinder half. Extension bolt is protected against twisting.
  • Page 56 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 56 / 62 10. Pull the spacer off again.
  • Page 57 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 57 / 62 11. Push the cylinder parts together completely.
  • Page 58 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 58 / 62 12. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw. 13. Insert the cylinder into the clamping block so that the profile cylinder...
  • Page 59 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 59 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate.
  • Page 60 SmartIntego Cylinder AX Modularity 7. Reduce CO cylinders to HZ (Manual) 60 / 62...

  • Page 61: Help And Other Information

    SmartIntego Cylinder AX Modularity 8. Help and other information (Manual) 61 / 62 8 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents on the website: www.smartintego.com/int/home/infocenter/documentation Declarations of conformity You will find declarations of conformity and other certificates on the website: www.simons-voss.com/en/certificates.html...
  • Page 62 This is SimonsVoss SimonsVoss is a technology leader in digital locking systems. The pioneer in wirelessly controlled, cable-free locking technology delivers system solutions with an extensive product range for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems unite intelligent functions, optimum quality and award-winning German-made design.
