3. Using needle-nosed pliers, disconnect the plug of the cable below the
circuit board.
4. Disassemble the reader and engine block.

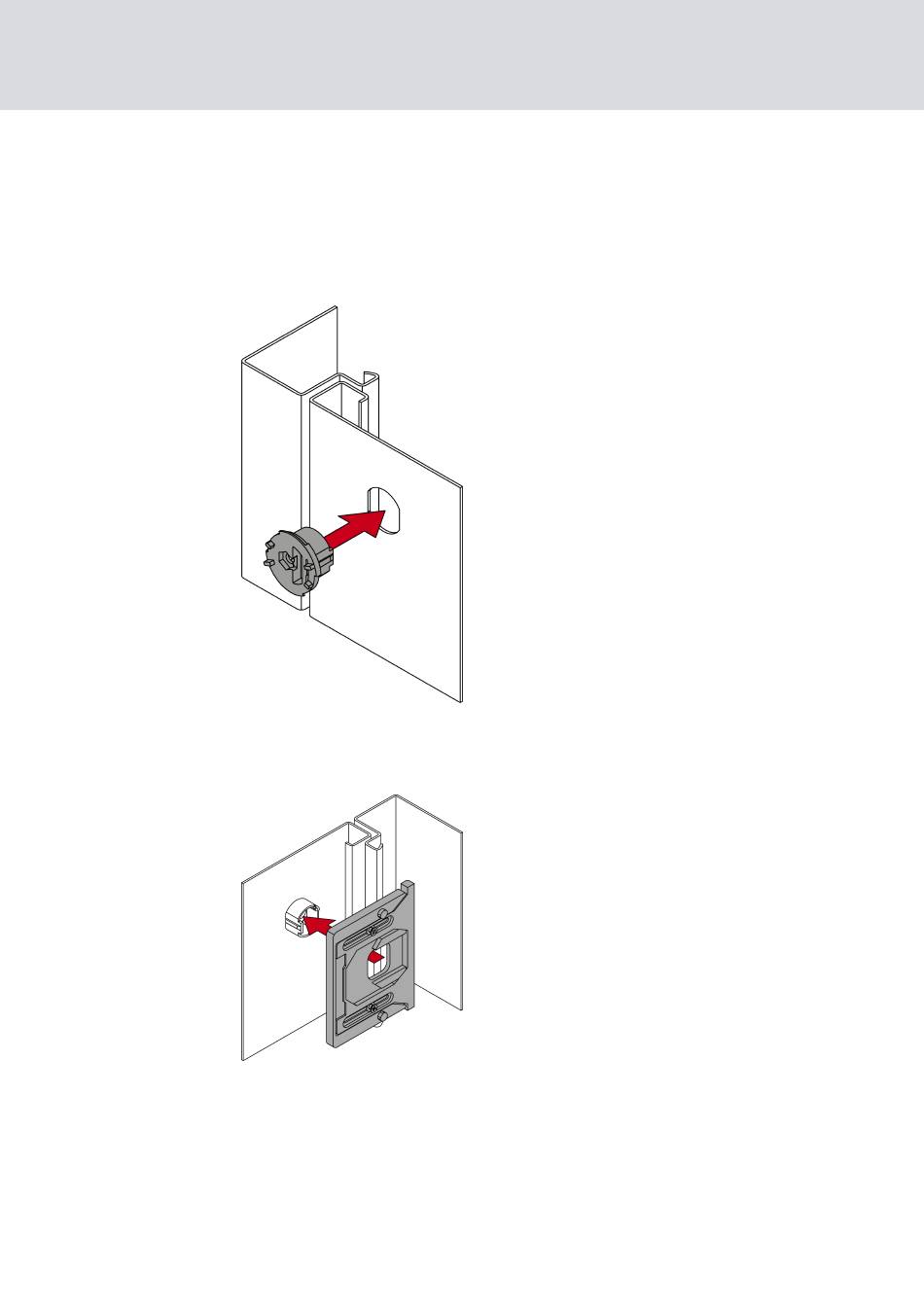

5. Insert the socket into the D-hole (mount for nut pointing towards the
edge of the door).
6. Insert the adapter plate with the parallel forced guide onto the socket
from the rear.
4. Initial operation
