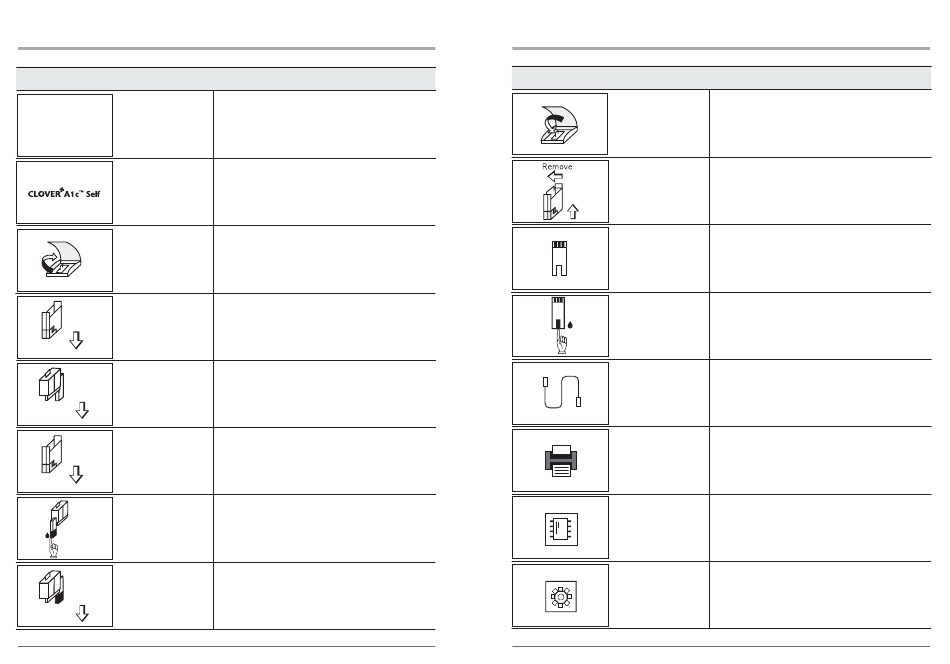

7. LIST OF ICONS

Icon Name
Warming up Warming up
Power Save mode
Open the cover
Insert
Check Cartridge
CHECK
Insert
Check Reagent
Pack
CHECK
Insert
Test Cartridge
Apply sample to
capillary tip
Insert Reagent
Pack
CLOVER A1c Self • 8 •
Function
It is displayed on the analyzer LCD
once it is powered on.
Analyzer is under 'Power Save Mode'
Open the cover of the analyzer.
Analyzer is under "Check Mode".
Insert daily check cartridge or monthly
check cartridge into the analyzer.
Insert monthly check reagent pack into the
analyzer. In case of daily check cartridge,
the iconwill not be shown up.
Insert Test Cartridge into the analyzer.
Apply blood sample to sample collecting
area.
Insert reagent pack with blood sample
into the analyzer.
7. LIST OF ICONS
Icon Name
Close the cover
Remove cartridge
Insert strip
Apply sample to
glucose test strip
PC Connection
Printer
Memory
Set up
CLOVER A1c Self • 9 •
Function
Close the cover of the analyzer.
Remove the cartridge from the
analyzer.
Insert the blood glucose test strip into the
glucose module.
Apply blood sample to the blood glucose
test strip.
Indicates that the analyzer is connected
to a PC.
Indicates that the thermal printer use
is active.
Select this icon to view the test results
in memory.
Select this icon to set up the analyzer.
