When used in conjunction with SmartStart

Disconnect power from the DS4+ before connecting the SmartStart module. Failing to do so could damage main module. To
enable D2D communication between the DS4+ and the SmartStart one of the following actions must be executed:

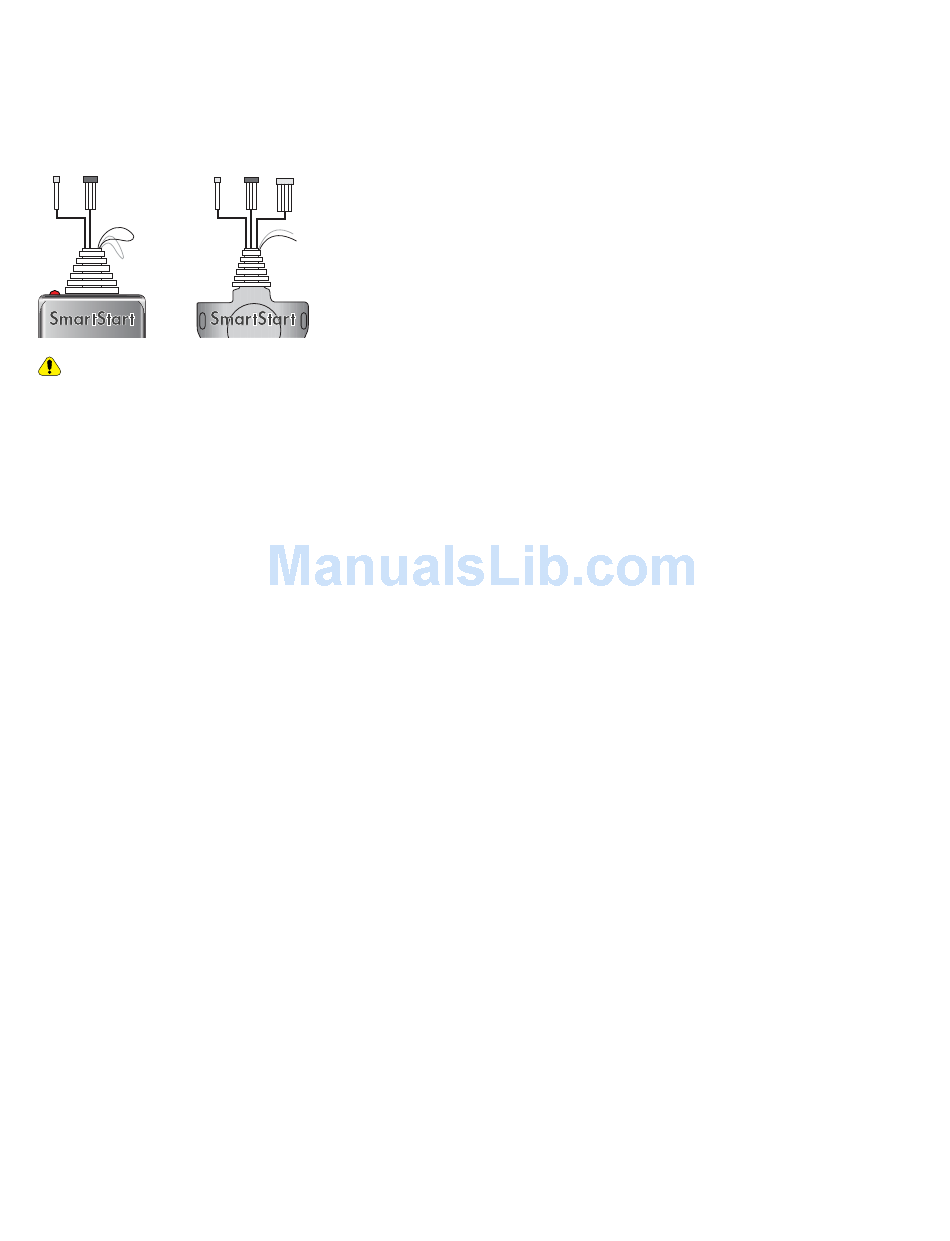

SmartStart with Loops – The brown loop must be cut.
•
SmartStart with Pigtails – The gray wire must be connected to a ground source.
•
Loops
DO NOT connect the SmartStart 2-pin power harness when using the DS4+. Power and ground will be provided by the D2D
connector on main module. Refer to the SmartStart documentation for further details.

D2D 1.0/2.0 port configuration

• The 3 D2D ports should be configured as follows:
• The 2 black D2D ports are internally protected and connected in parallel. Devices connected to both ports need to be
configured with the same communication protocol, which in this case is D2D 2.0. This is where the Control Center (antenna)
and 8504D Shock Sensor should be connected.
• The single white D2D port should be used for SmartStart and will require to be configured for D2D 1.0 functionality.
• All ports can be configured for D2D 1.0 and 2.0; however, if the device is not configured accordingly as well, it will not be
recognized.
• All ports need to be configured via the web, but the above is the recommended installation configuration.
26
Pigtails
DS4+ MA3
