5. INITIALIZING THE SETTINGS

G Set the DIP switch No. 2 to ON to turn on the power. In ten
seconds, all of the camera and network settings will be reset to the
factory settings.
After the power is turned OFF, set the DIP switch No. 2 to OFF.
Note: Set the DIP switch to OFF after initialization. If the power is turned
ON with the switch kept ON, all settings will be initialized each time
and will not be saved.
G Pin assignment
Pin No. Normal
1 OFF
2 OFF
3 OFF
4 OFF

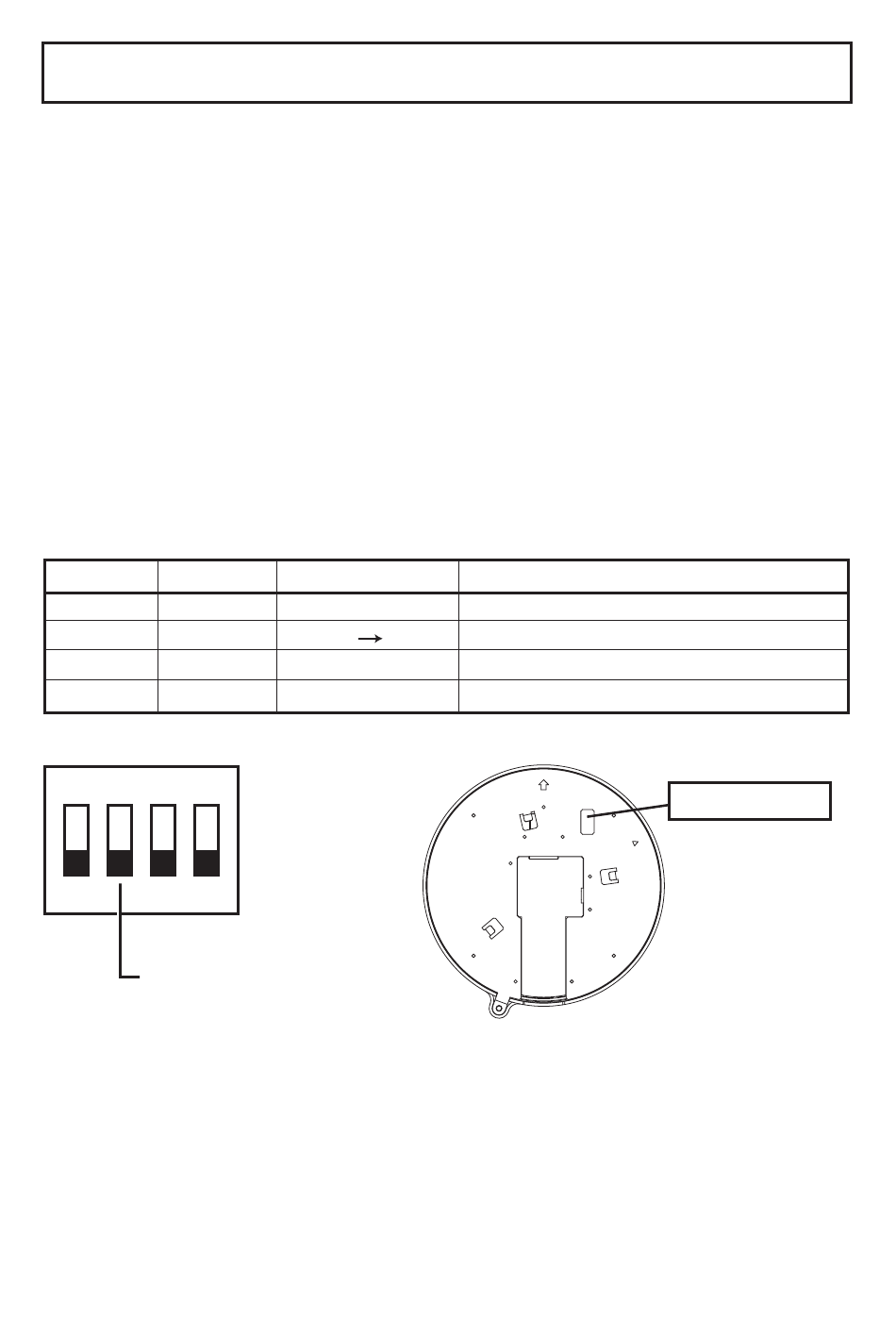

G 4-pin DIP switch
1 2 3 4
OFF
Setting Initialization
Operation
Leave in OFF
ON OFF
Leave in OFF
Leave in OFF
Bottom of Camera
- 17 -
Function
-
To initialize the settings
-
-
4-pin DIP switch
