[2] How to adjust the video

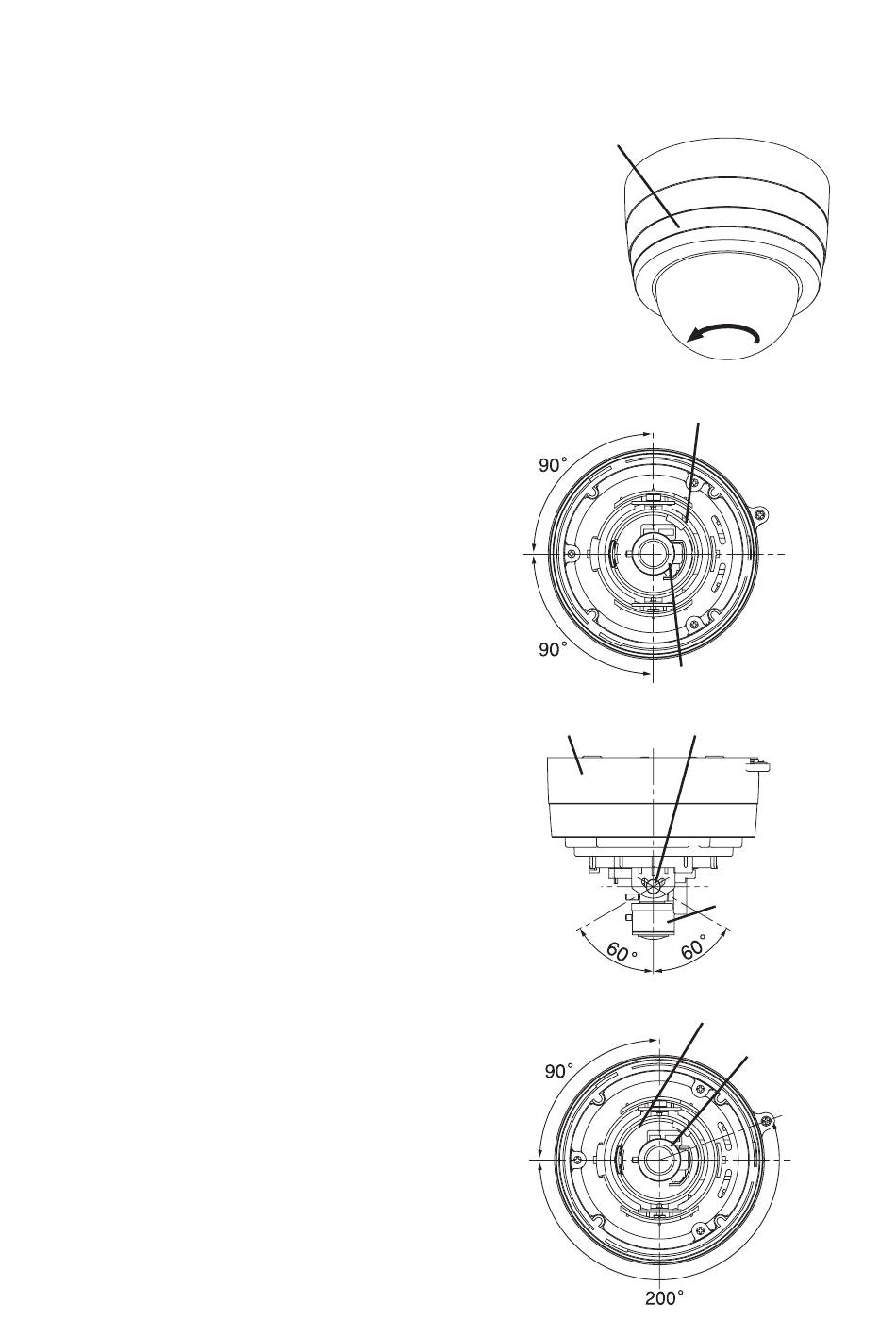

1. Turn the main unit cover counterclockwise
(in the direction indicated by arrows).
2. Watching the monitor, adjust the shooting
direction.
• Clockwise/counterclockwise direction
Turn the pan base clockwise/
counterclockwise to adjust the right/left
direction.
• Up/down direction
Loosen the tilt fixing screw to adjust the
up/down direction.
After adjusting the direction, fasten the tilt
fixing screw.
*Be careful not to drop the tilt fixing screw.
*Fasten the tilt fixing screw by hand.
Do not use nippers or the like, or the tilt
fixing screw could be broken.
3. Correct the tilt of the video.
*Be sure to hold the motor cover.
MAIN UNIT COVER
MAIN UNIT
- 12 -
PAN BASE
LENS UNIT
TILT FIXING SCREW
LENS UNIT
MOTOR COVER
LENS UNIT
