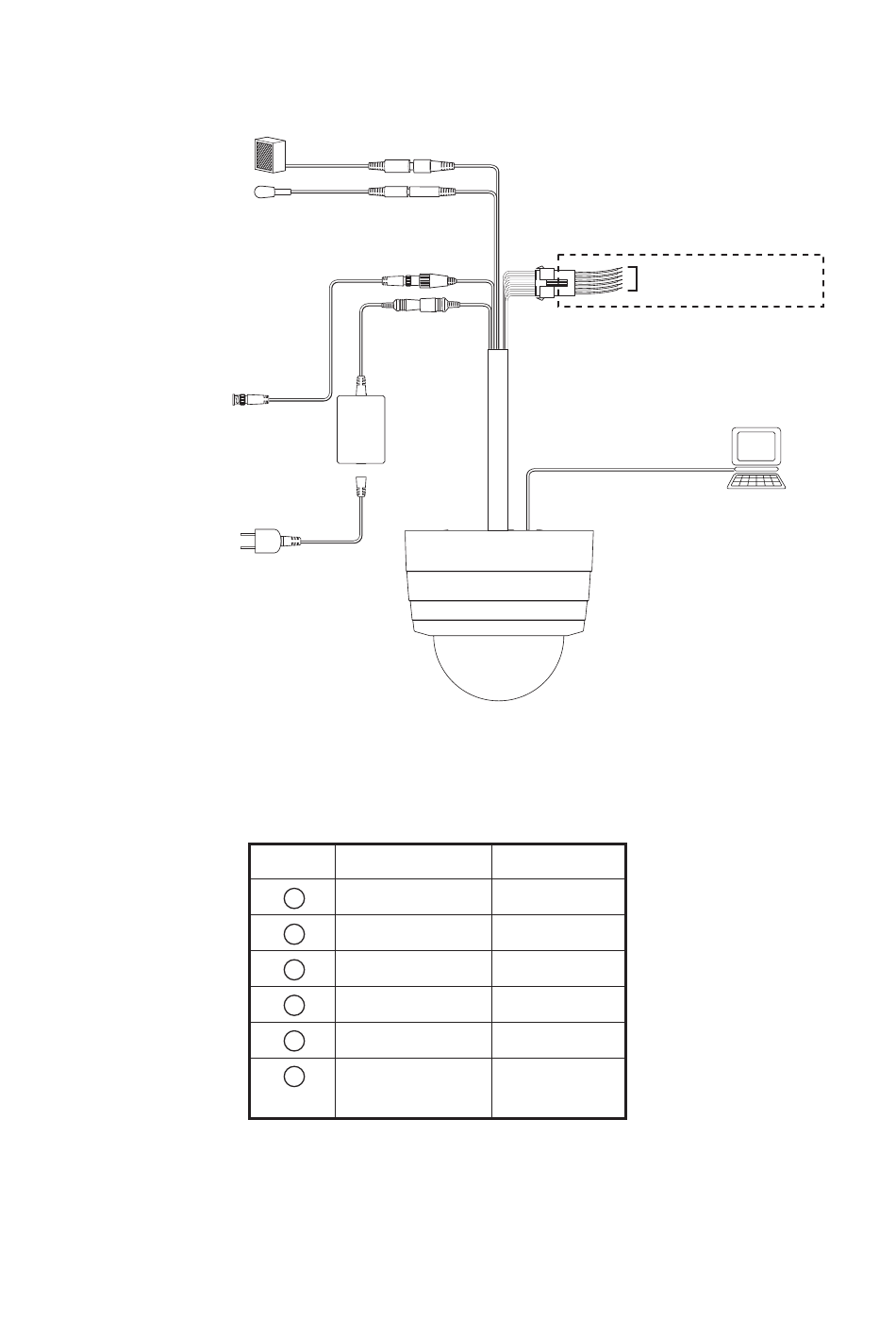

[4] Connection of the Camera

Speaker
with amplifier
Microphone
VIDEO CABLE
(commercial item,
BNC, co-axial)
To MONITOR
VIDEO IN
To OUTLET
(AC100-240V)
Note: When wiring, note the following:
• For the ALARM IN-OUT cable, insulate the bare conductor
part not to be exposed after wiring.
• For the video cable, keep the BNC connector (metal part) away
from any other metal material.
AUDIO OUTPUT (Green)
AUDIO INPUT (Blue)
VIDEO OUT
DC IN
AC adaptor
(supplied)
POWER
CABLE
(supplied)
ALARM IN-OUT terminal
(6P connector (black))
Pin No. Terminal Name
1 ALARM IN1
2 GND
3
ALARM IN2
4
GND
5
ALARM OUT
6
General-purpose
output
RELAY CABLE (supplied)
ALARM IN-OUT TERMINAL
(6P connector (black))
COMPOSITE CABLE
(part of the Camera)
Ethernet CROSS CABLE
(supplied)
Camera main unit
Cord Color
Blue
Purple
Gray
White
Black
Pink
- 14 -
To SENSOR and
EXTERNAL CONTROL
PC
