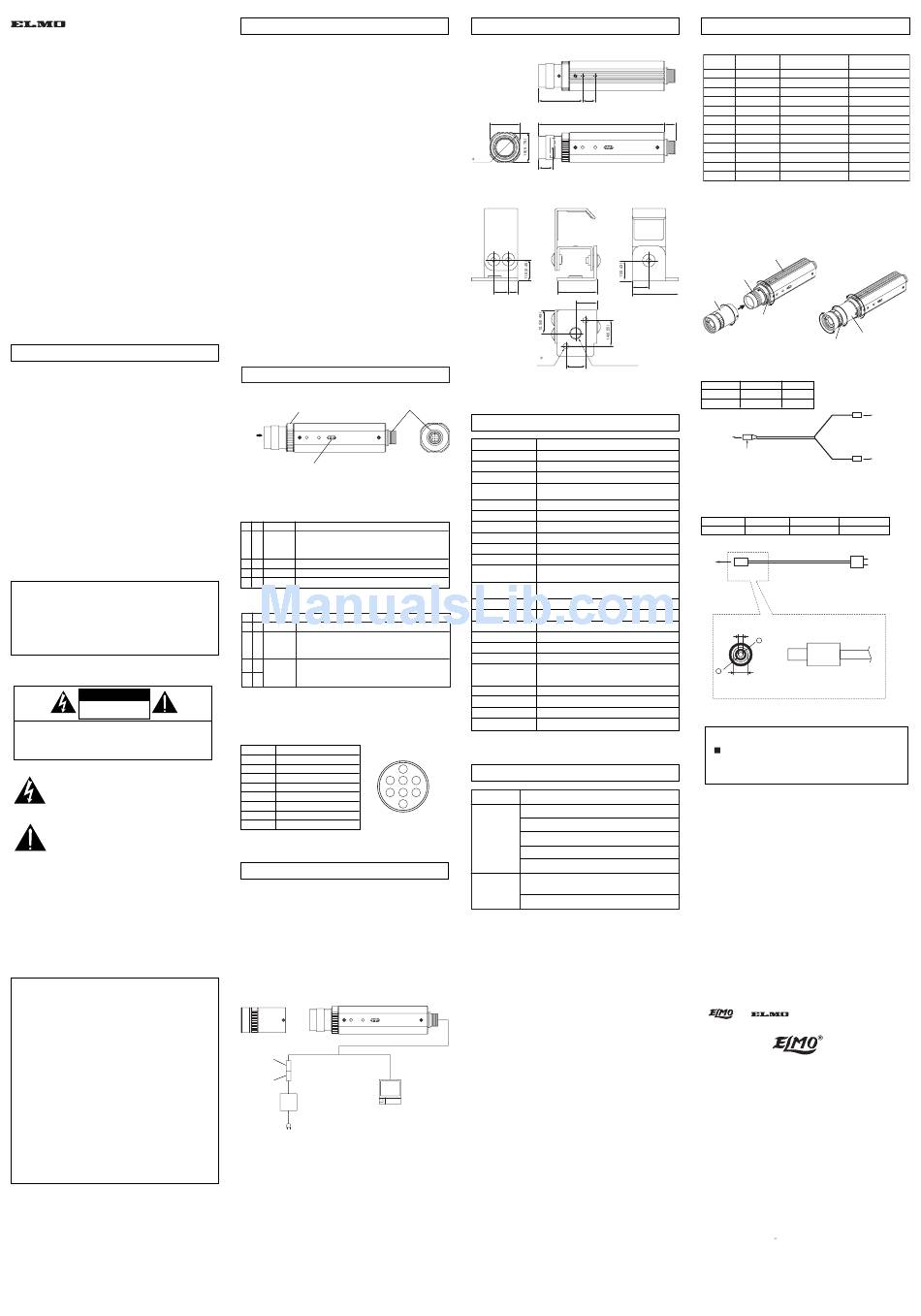

Elmo Color Camera Module

Instruction Manual

Slim Camera
Model
MN400

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not install near heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers) that
produce heat.
8. Do not touch this apparatus during lightning storms.
9. Unplug when unused for long periods of time.
10. Refer all servicing to qualified personnel. Servicing is required
when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled
or objects have been fallen onto the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING:
Handling the cord on this product or cords associated with
accessories sold with this product, will expose you to lead, a
chemical known to the State of California to cause birth defects
or other reproductive harm.
Wash hands after handling.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION
• Do not use any power supply other than specified.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
* The CAUTION label is attached on the base of product.
INFORMATION
This equipment has been tested and found to comply with the
limits for Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, use, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
USER-INSTALLER CAUTION:
Your authority to operate this
FCC verified equipment could be voided if you make changes or
modifications not expressly approved by the party responsible for
compliance to Part of the FCC Rules.
Precautions for Installation and Use
• Handle with care. - Do not drop, shock or vibrate this product
excessively, or the product could go out of order. Do not handle
the camera cable roughly, or the camera cable could be
disconnected.
• Do not aim at an intense light. - Do not allow an intense light,
such as a spotlight, to come into the camera screen, blooming
or smearing could occur. Do not direct the camera to the sun,
either, or an intense light could come into the camera and
vertical stripes could appear on the camera screen, though this
is not a symptom of failure.
• Install this product in a place free from noise into the
camera screen. - If the camera is installed or the camera cable
is wired near a lamp line or a TV set, the camera screen could
suffer noise. If this is the case, relocate the camera or cable
routing.
• Keep the camera head and the protective cap from the
reach of infants. - Do not place the camera head or the
protective cap within the reach of infants, or they could
dangerously put it into their mouth or swallow it. The protective
cap is used to protect the CCD image pickup surface; do not
throw it away but safekeep it.
• When leaving the camera unused for a long time - When the
camera is left unused for a long time, shut OFF the power
supply for the safety purpose.
• When maintaining the camera - Shut OFF the power supply to
the camera, and wipe the camera with a dry cloth. If the stain
will not come off, wipe it off with a cloth soaked with a diluted
neutral detergent. Do not use benzine, alcohol or thinner, or the
coating could fall off or the indication could degenerate. For
cleaning the lens, use a lens cleaning paper or the like.

Name and Function of Each Part

Connection terminal: Use Hirose
Focus lock ring: Locks the
HR25-7TP-8P (or equivalent).
focus of the lens.
CCD
pickup
surface
Function setting switch: Sets the white balance
and the shutter speed.
Setting the white balance
The white balance can be set to any of the following 4 modes
according to the imaging conditions (light source):
1 2
Mode
Contents
The camera checks the color temperature of the light
L L
ATW
source continuously, and adjusts the white balance
automatically.
H L
3200K
For electric bulb (fixed value)
L H
4200K
For fluorescent lamp (fixed value)
H H
6300K
For outdoor light (fixed value)
Setting the shutter speed
3 4
Mode
Contents
L L 1/60 sec
Factory-set.
Decreases flickers when the camera is used in the
L H 1/100 sec
illumination in an area with a power supply frequency
of 50Hz, but lowers the sensitivity.
Operates the electronic shutter automatically
H L
AES
according to the light intensity of the object and
H H
adjusts the exposure appropriately.
*Notes for the AES mode
- Adequate light intensity is required.
- Flickers may occur in the fluorescent illumination.
About the connection terminal
Pin No.
Contents
1
GND (VIDEO OUT)
2
VIDEO OUT
1
3
-
2
3
4
4
-
5
6
7
5
-
8
6
-
7
GND (DC IN)
8
DCIN

How to Connect

(1) Attach the lens (option) to the camera body.
(2) Attach the multi-cable (option) to the camera body and
connect the BNC connector of the multi-cable to the VIDEO IN
terminal of a monitor TV or the like.
(3) Connect the DC jack of the multi-cable to the DC plug of the
AC adaptor (option).
• For the information of the lens, multi-cable, AC adaptor,
etc., refer to "Option."
Lens (option)
Camera body
Multi-cable
DC jack
(option)
BNC connector
DC plug
Monitor TV
AC adaptor
(option)
Outside Drawing
Camera body
All dimensions in mm(inch)
28(1.10)
8(0.31)
80(3.15)
19(0.75)
21(0.83)
8.9(0.35)
CCD image pickup surface
(In air 6.9(0.27))
Camera holder
All dimensions in mm(inch)
9(0.35)
8(0.31)
5(0.20)
21.5(0.85)
11.6(0.46)
Three-leg screw
2- 3(0.12)
(1/4-20UNC)
hole
10.5(0.41)

Specifications

Model
MN400
Power input
12VDC (11VDC - 15VDC)
Power consumption Approx. 1.5W (at 12VDC input)
Image pickup device
Type 1/2 color interline transfer system CCD
Effective image
Horizontal 768, vertical 494
pickup pixels
Image pickup area
Horizontal 6.54mm, vertical 4.89mm
Scanning system
2:1 interlace
Scanning frequency Horizontal 15.734kHz, vertical 59.94Hz
Synchronous system Internal synchronization
Resolution
Horizontal 480TV, vertical 350TV
SN ratio
50dB or more
Standard object
60 lx (F1.6 incandescent lamp)
illuminance
Minimum object
2 lx (F1.6 incandescent lamp)
illuminance
White balance
ATW, 3200K, 4200K, 6300K
AGC
Built-in (always ON)
Electronic shutter
1/60 sec, 1/100 sec, AES
AES
1/60 sec - 1/100,000 sec
Power terminal
8P round connector
Video terminal
8P round connector, output VBS 1.0V (p-p), 75Ω
Dimensions
Width:19mm (0.75"), height:19mm (0.75"),
depth:80mm (3.15")
Weight
Approx. 50g
Ambient temperature -10℃- 40℃ (14° F- 104° F)
Ambient humidity
30 - 90%
Accessories
Instruction manual, camera holder
* The design, the specifications, etc. are subject to change
without notice due to continual improvements.

Troubleshooting

Symptom
Checking point
- Is the power being supplied normally?
Image does
- Is the lens aperture adjusted appropriately?
not appear.
- Is the cable connected appropriately?
- Is the monitor TV adjusted appropriately?
- Is the Function setting switch set appropriately?
- Is the lens aperture been adjusted
Image is dark.
appropriately?
- Is the shutter speed set appropriately?
Options
Lens
Max. relative aperture
CODE
Model
(f-number)
8771
T183
1.8
9264
T204D
2.0
9250
T1675F
1.6
9265
T2015D
2.0
9266
T3124
3.1
9819
T4536
4.5
6.8(0.27)
9267
T287P
2.8
8797
T3425M
*4.6 - 5.2
8797-1
T3425MB
*4.3 - 6.0
8797-2
T3425MC
*6.0 - 8.1
9271
T416MA
*8.4 - 12.2
9271-1
T416MB
*6.3 - 8.4
*The f-number represents effective f-number.
(1) Turn the lens to focus the camera, and then turn the focus lock
ring A counterclockwise to lock the lens.
(2) Turn the draw ring B to adjust the aperture.
Camera body
Lens mounting
thread portion
25(0.98)
Lens
Focus lock
ring A
Draw ring B
Multi-cable
CODE
Model
Length
9888
MNC-03A
3m
9888-1
MNC-10A
10m
To camera
connecting
terminal
Hirose HR25-7TP-8P
or equivalent
AC adaptor
CODE
Model
Input voltage
9894
GSU06-3-U
100-240V
To multi-cable DC jack
DC plug
<Specified plug>
All dimensions in mm(inch)
φ2.1(0.08)
+
0.03
-
+
0
φ5.5(0.22)
-0.03
-
Caution: Using any plug other than the specified could
cause intermittent contact.
WARNING:
Unauthorized recording of copyrighted, materials,
photographs, etc. may infringe on the rights of copyright
owners and be contrary to copyright laws.
and
are registered trademarks of
ELMO COMPANY, LIMITED.
ELMO CO., LTD.
6-14, Meizen-cho, Mizuho-ku,
Nagoya, 467-8567 Japan
E-mail : foreign-div@elmo.co.jp
OVERSEAS SUBSIDIARY COMPANIES
ELMO Mfg. Corp.
1478 Old Country Road, Plainview, NY 11803-5034 U.S.A.
Tel. 516-501-1400 Fax. 516-501-0429
E-mail:elmo@elmousa.com
Web:http://www.elmousa.com/
ELMO Canada Mfg. Corp.
44 West Drive, Brampton, Ontario, L6T 3T6, Canada
Tel. 905-453-7880 Fax. 905-453-2391
E-mail:info@elmocanada.com
Web:http://www.elmocanada.com/
ELMO (Europe) G.m.b.H.
Neanderstr. 18, 40233 Dusseldorf, Germany
Tel. 0211-376051-53 Fax. 0211-376630
E-mail:info@elmo.de
Web:http://www.elmo.de/
Focal length f
f=3.0mm
f=4.0mm
f=7.5mm
f=15mm
f=24mm
f=36mm
f=7mm
f=25mm close-up
f=25mm close-up
f=25mm close-up
f=16mm close-up
f=16mm close-up
(Focus unit)
To VIDEO IN
terminal of a
BNC
monitor TV or
connector
the like
To AC
adaptor
DC jack
Rated output
DC12V 0.5A
To AC outlet
Printed on recycled paper
6X1MCCB01

Advertisement

loading
