3. Alarm

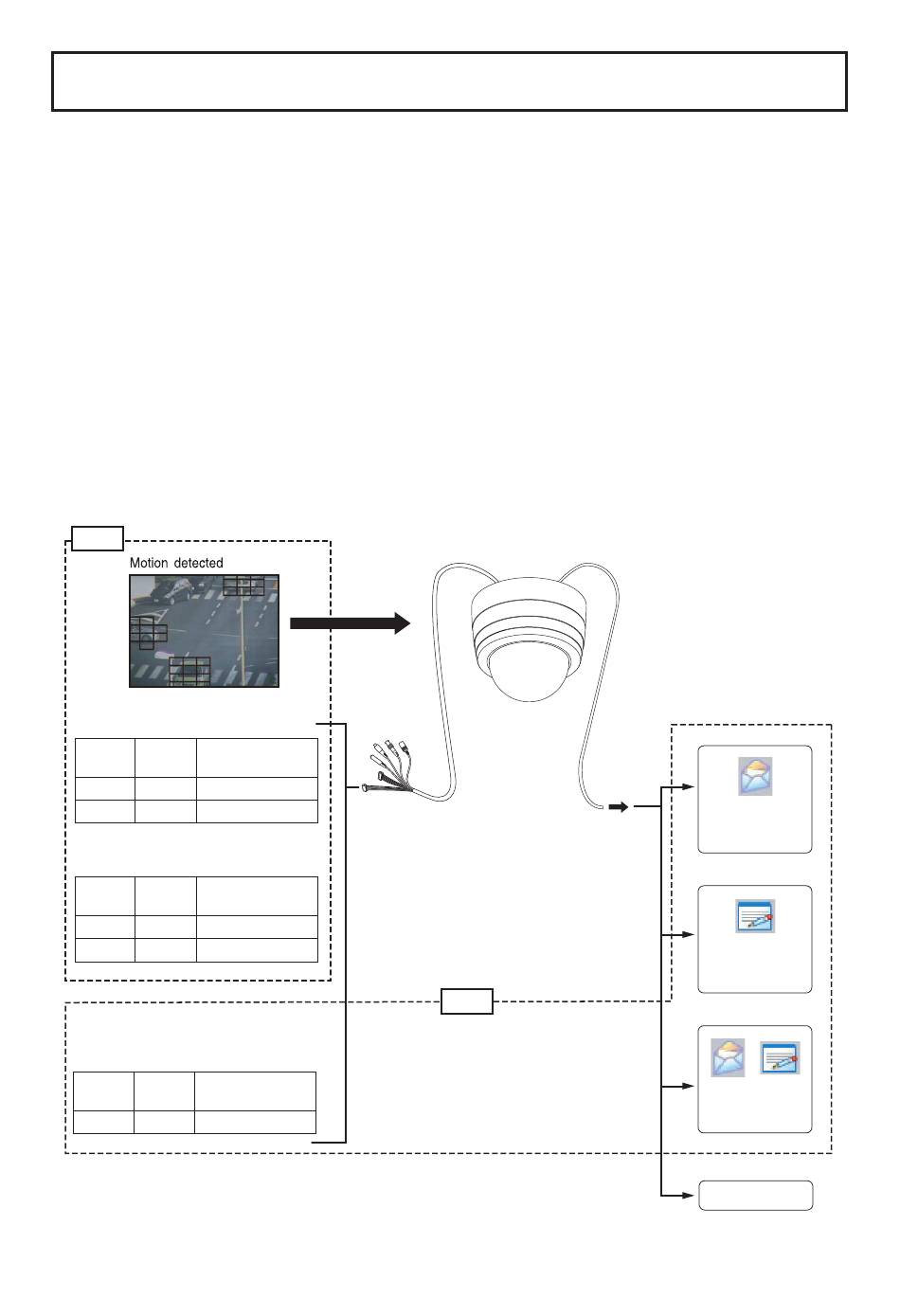

Alarms are caused by "alarm 1", "alarm 2", and "motion detection".
You can set an alarm action for each cause. "With/Without alarm", "Send e-mail/Send
FTP/Both/None" are available.
Note: An alarm remains output from the alarm output terminal for ten
seconds. The alarm output period is fixed.
Specifications of the alarm output terminal: Open collector output,
maximum rating: DC12 V, 30 mA
Note: The next alarm input can work normally three seconds after the
current alarm is input. If the alarm input is active again within three
seconds, the alarm input may not work normally depending on the
equipment status.
Input
Alarm input 1
(non-voltage make contact input)
Pin Code
Signal name
No. color
1 Blue Alarm input 1
2 Violet
Alarm input 2
(non-voltage make contact input)
Pin Code
Signal name
No. color
3 Gray Alarm input 2
4 White
Alarm output
(open collector output)
Pin Code
Signal name
No. color
5 Black Alarm output
GND
6P connector
(black)
GND
Connected
to
network
Output
- 15 -
Send e-mail
(See page 35, 57
for setting)
Send FTP
(See page 37, 58
for setting)
Both
(See page 35, 37,
57 and 58 for setting)
None
