2. SETTING UP

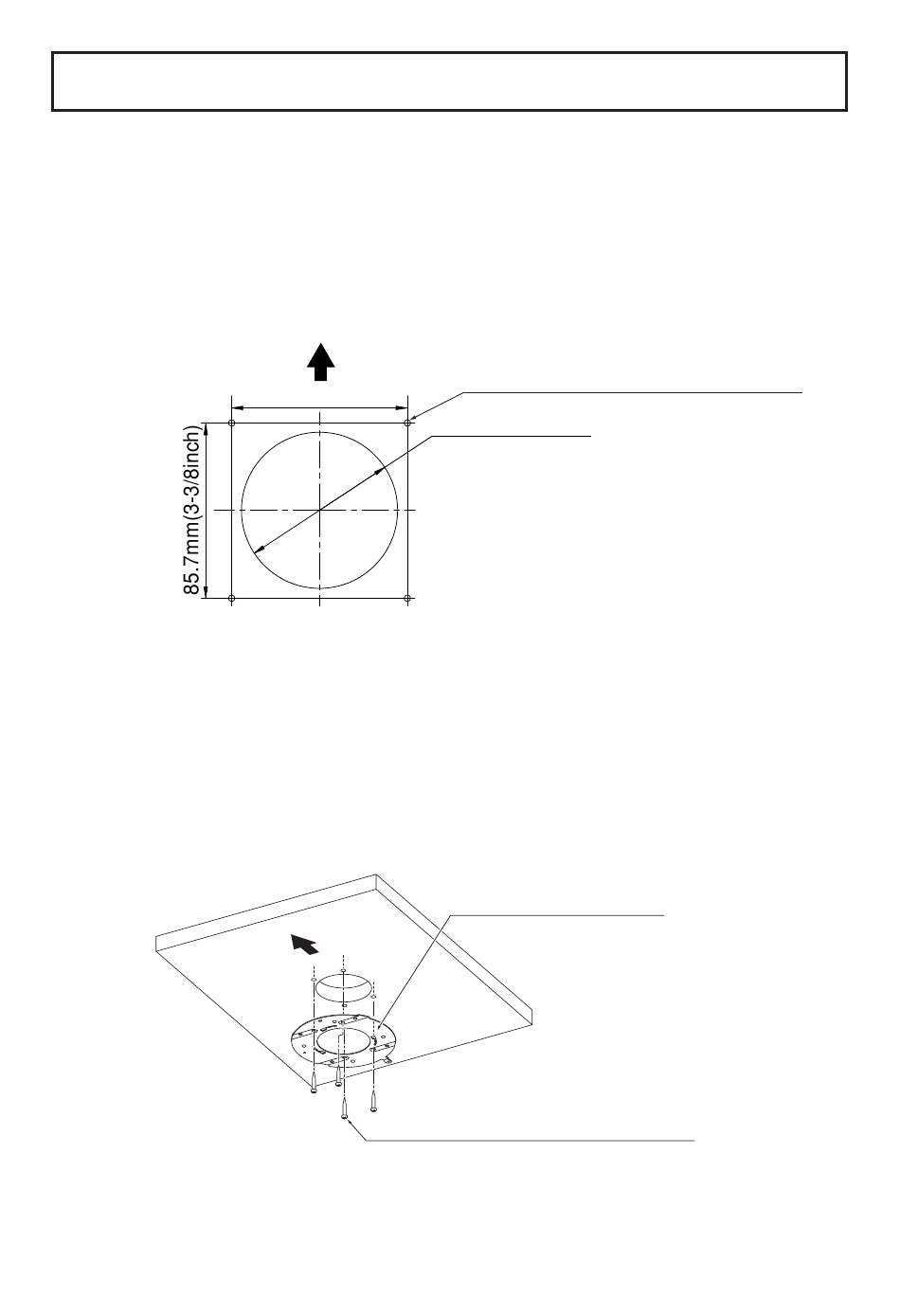

(1) Mounting the Fixing Plate

1.Make mounting holes and a cord hole in the place (ceiling) to which this Camera is

installed.

WARNING:The total mass of the main unit and fixing plate is approx. 1,000g.

Check whether the ceiling to which the Camera is installed is strong

enough to hold the total mass of the main unit and fixing plate.

If not, the Camera could fall, causing injury.

2.Lock the fixing plate (supplied) firmly with 4 fixing screws (supplied).

WARNING:Fasten the fixing screws of the fixing plate firmly, or the Camera could

fall, causing injury.

FRONT

85.7mm(3-3/8inch)

FIXING SCREW M4 × 40 (supplied),

4PCS

MOUNTING HOLE (prepared hole)

for FIXING PLATE, 4 locations

ø72 (cord hole)

FIXING PLATE (supplied)

- 9 -
