PANEL DESCRIPTION

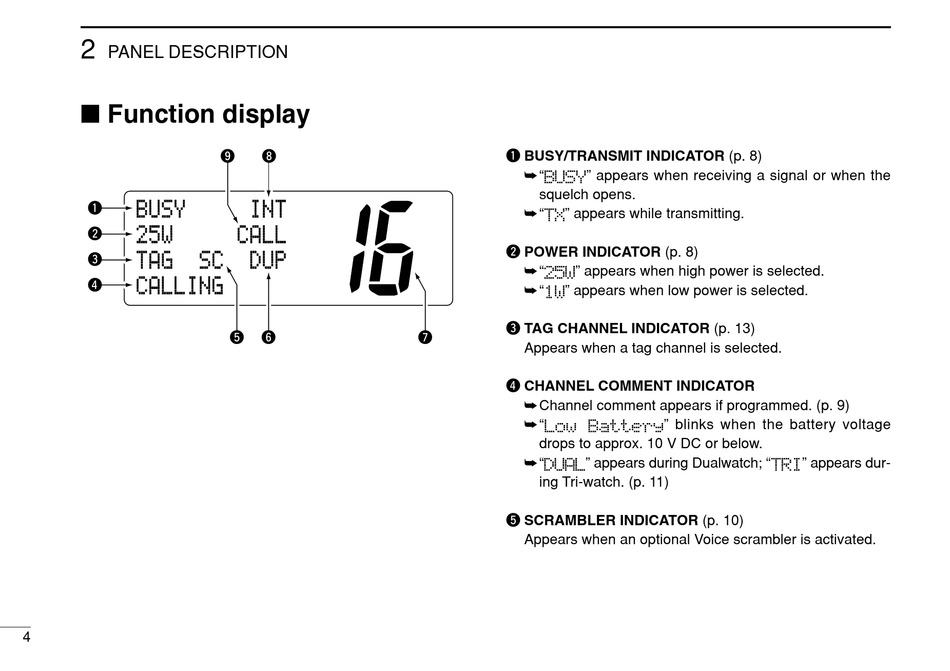

I Function display

BUSY
q
25W
w
TAG SC
e
CALLING
r
4
o i
INT
CALL
DUP
t y
q BUSY/TRANSMIT INDICATOR (p. 8)
➥ "BUSY" appears when receiving a signal or when the
squelch opens.
➥ "TX" appears while transmitting.
w POWER INDICATOR (p. 8)
➥ "25W" appears when high power is selected.
➥ "1W" appears when low power is selected.
e TAG CHANNEL INDICATOR (p. 13)
u
Appears when a tag channel is selected.
r CHANNEL COMMENT INDICATOR
➥ Channel comment appears if programmed. (p. 9)
➥ "Low Battery" blinks when the battery voltage
drops to approx. 10 V DC or below.
➥ "DUAL" appears during Dualwatch; "TRI" appears dur-
ing Tri-watch. (p. 11)
t SCRAMBLER INDICATOR (p. 10)
Appears when an optional Voice scrambler is activated.
