8

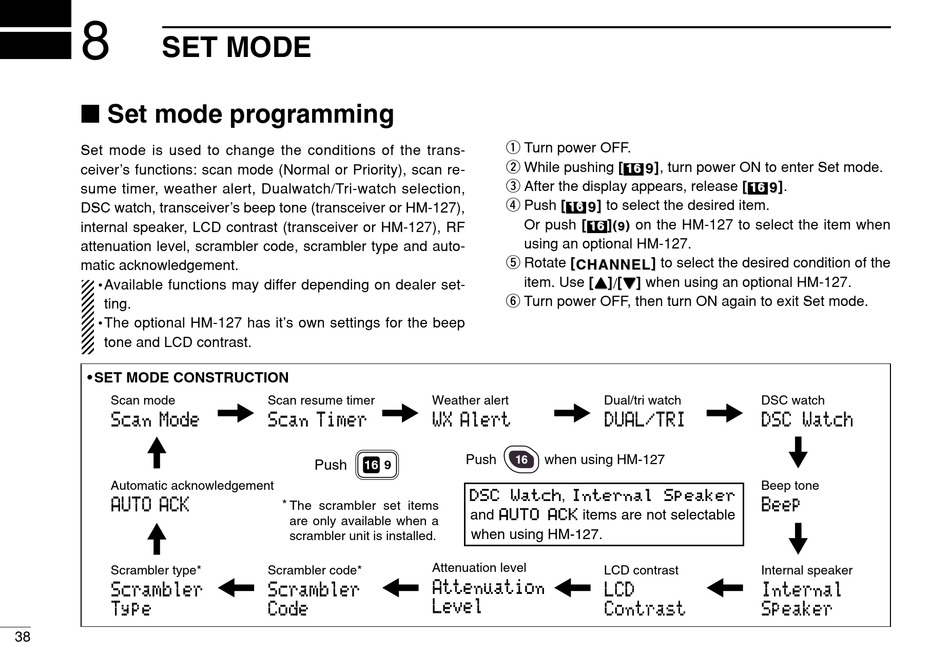

SET MODE
I Set mode programming
Set mode is used to change the conditions of the trans-
ceiver's functions: scan mode (Normal or Priority), scan re-
sume timer, weather alert, Dualwatch/Tri-watch selection,
DSC watch, transceiver's beep tone (transceiver or HM-127),
internal speaker, LCD contrast (transceiver or HM-127), RF
attenuation level, scrambler code, scrambler type and auto-
matic acknowledgement.
Available functions may differ depending on dealer set-
•
ting.
The optional HM-127 has it's own settings for the beep
•
tone and LCD contrast.
• SET MODE CONSTRUCTION
Scan mode
Scan Mode
Automatic acknowledgement
AUTO ACK
Scrambler type*
Scrambler
Type
38
Scan resume timer
Weather alert
Scan Timer
WX Alert
Push
16
9
* The scrambler set items
are only available when a
scrambler unit is installed.
Attenuation level
Scrambler code*
Attenuation
Scrambler
Level
Code
q Turn power OFF.
w While pushing
[
[
16
16
e After the display appears, release
r Push
[
[
] to select the desired item.
]
16
9
16
9
Or push
[
[
]
]
on the HM-127 to select the item when
16
(
)
16
(
9
)
9
using an optional HM-127.
t Rotate
[
[
CHANNEL
CHANNEL
item. Use
[
Y Y
] /
[
Z Z
] when using an optional HM-127.
[
Y Y
]
[
Z Z
]
y Turn power OFF, then turn ON again to exit Set mode.
Dual/tri watch
DUAL/TRI
Push
when using HM-127
DSC Watch, Internal Speaker
and AUTO ACK items are not selectable
when using HM-127.
LCD contrast
LCD
Contrast
] , turn power ON to enter Set mode.
]
9
9
[
] .
[
]
16
9
16
9
] to select the desired condition of the
]
DSC watch
DSC Watch
Beep tone
Beep
Internal speaker
Internal
Speaker
