CONNECTIONS AND MAINTENANCE
I Mounting the transceiver
D D Using the supplied mounting bracket
The universal mounting bracket supplied with your transceiver
allows overhead or onboard mounting.
• Mount the transceiver securely with the 4 supplied screws
(M5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90° to your line of sight when operating it.
CAUTION:
KEEP the transceiver and microphone at
least 1 meter away from your vessel's magnetic navigation
compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
44

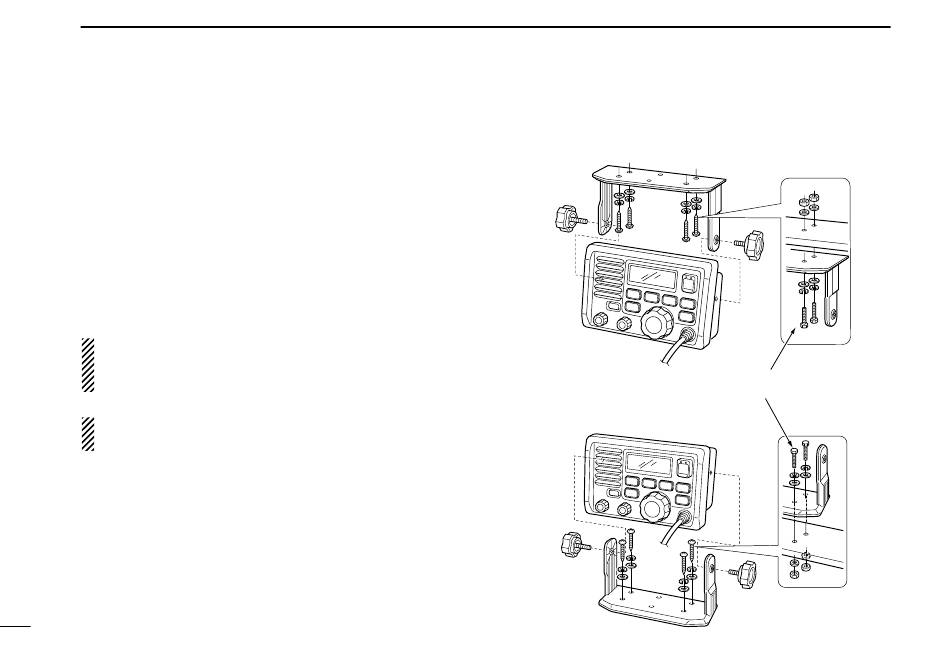

• OVERHEAD MOUNTING
These screws are shown as mounting example only.
Not supplied with accessories.
• MOUNTING ON THE BOARD
