User's Manual
4. Installation and wiring information
4.1 Identification of the unit
Before to install the CD3000S unit examine for damages or deficiencies. If any is
found, notify the carrier immediately. Check that the product features shown on
CD3000S identification label corresponds to that ordered.

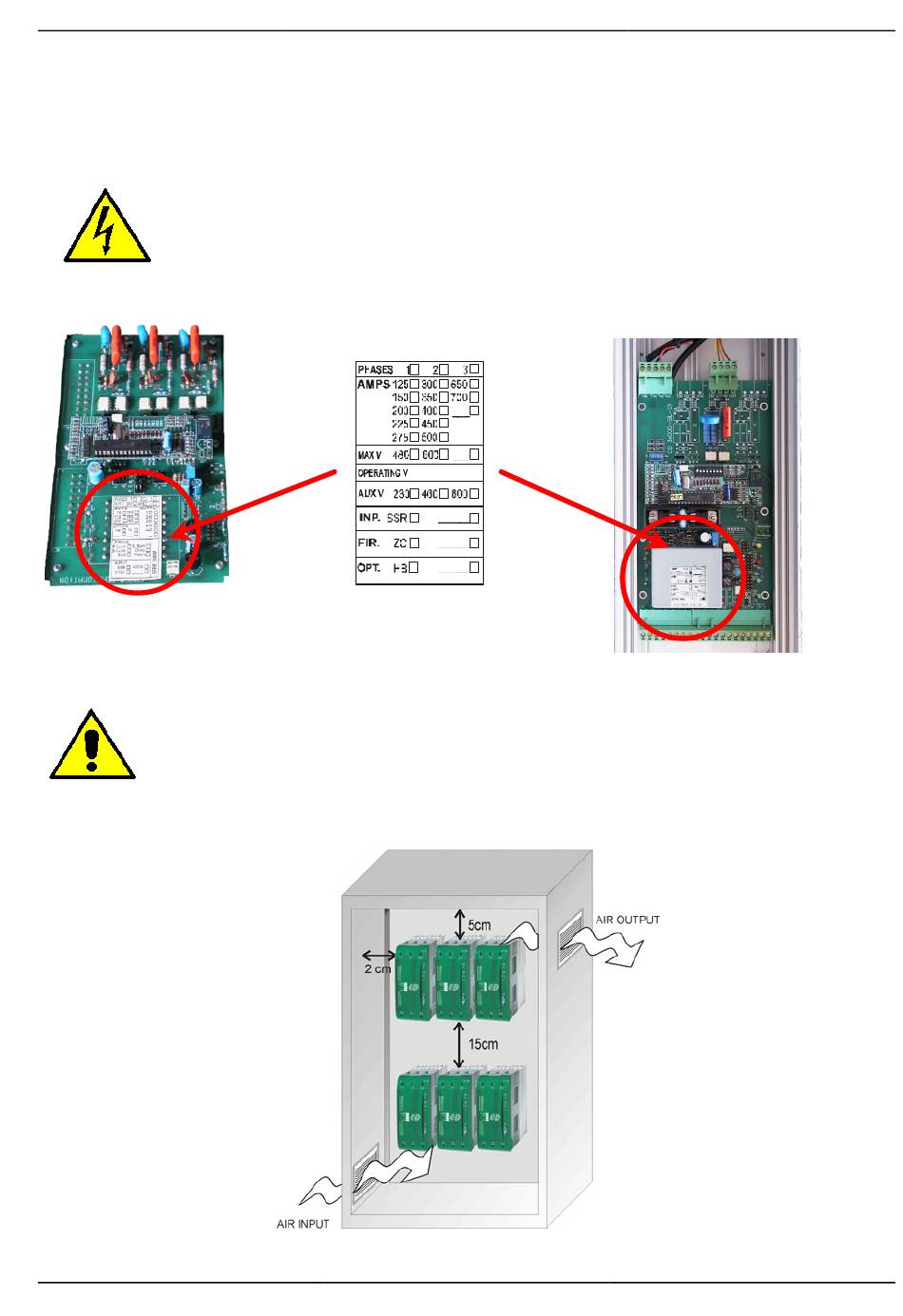

An identification label provide all the informations regarding the factory settings of the unit. This
label is on the board inside the unit, as represented below:
4.2 Installation
CD3000S unit should be always mounted in vertical position to improve air cooling on
heatsink. Maintain minimum distances in vertical and in horizontal as below represented.
Don't install in proximity of hot elements and near units generating electromagnetic
interferences.
When more units are mounted inside a cubicle provide air circulation as below represented.
Sometimes it is necessary to provide a fan to have better air circulation.
www.cdautomation.com
CD3000S-2PH from 125A to 700A
Identification label
8
C.D. Automation Srl
