Wire the Communicator

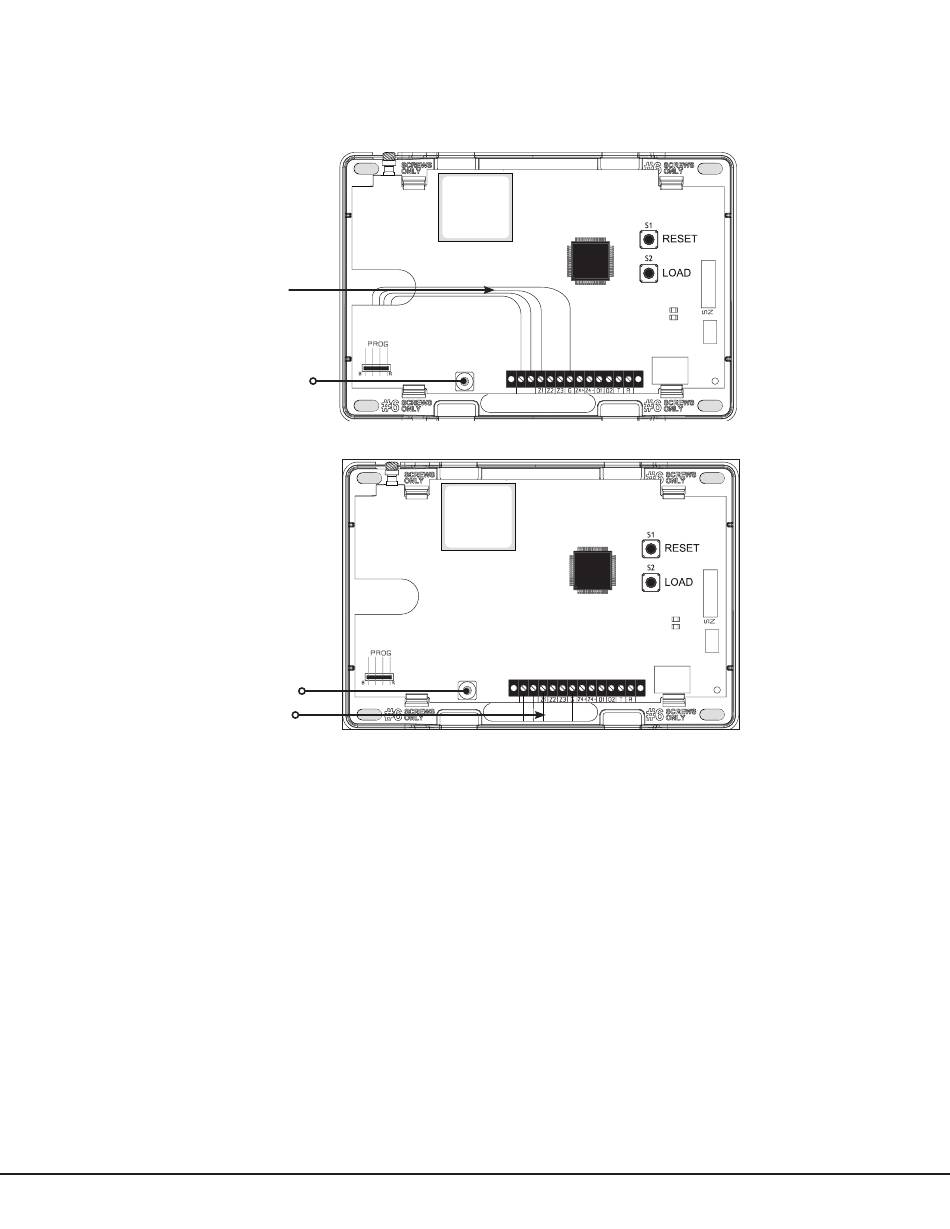

When connecting component wires, route all wires so they will not interfere with the tamper switch. See Figures 2
and 3 for wire routing options.
Wiring
Tamper
+DC-
Figure 2: Wire Routing Option One
Tamper
+DC-
Wiring
Connect the Antenna
Place the antenna onto the SMA connector. Refer back to Figure 1. Twist the antenna until it is securely tightened.
Replace the housing cover on the mounted base. Be sure to not damage any PCB components when removing or
replacing the housing cover.
CellCom‑LTE‑V Programming and Installation Guide
Digital Monitoring Products
5
