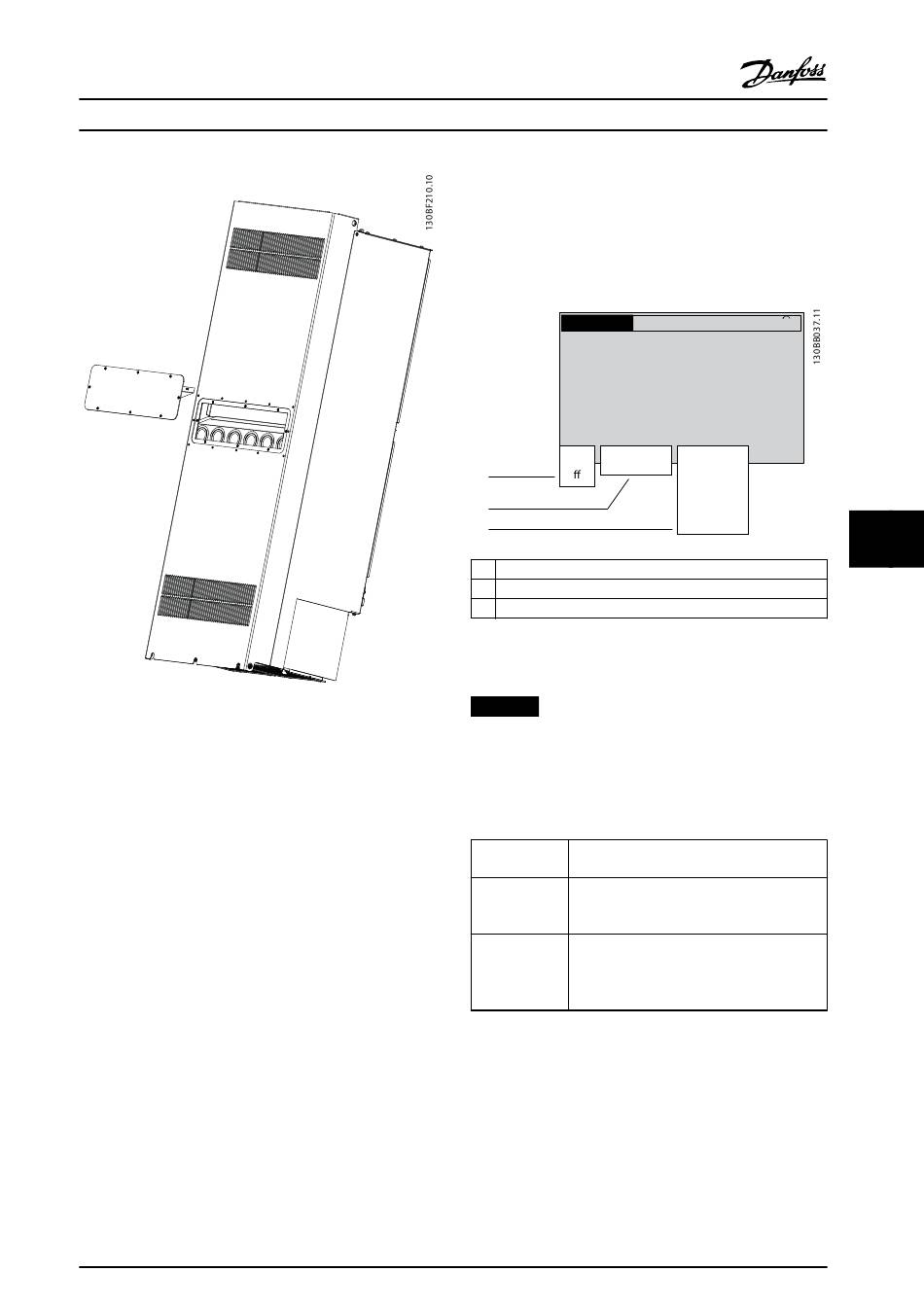

Illustration 8.1 Heat Sink Access Panel Removed from the Rear
of the Drive
MG16P222
Operating Guide

8.3 Status Messages

When the drive is in status mode, status messages
automatically appear in the bottom line of the LCP display.
Refer to Illustration 8.2. Status messages are defined in
Table 8.1 – Table 8.3.
1
2
3
1 Where the stop/start command originates. Refer to Table 8.1.
2 Where the speed control originates. Refer to Table 8.2.
3 Provides the drive status. Refer to Table 8.3.
Illustration 8.2 Status Display
NOTICE
In auto/remote mode, the drive requires external
commands to execute functions.
Table 8.1 to Table 8.3 define the meaning of the shown
status messages.
Off
Auto
Hand
Table 8.1 Operating Mode
Danfoss A/S © 04/2018 All rights reserved.
Status
799RPM 7.83A
0.000
53.2%
Auto Remote Ramping
Local
Hand Stop
O Running
Jogging
.
.
.
Stand-by
The drive does not react to any control signal
until [Auto On] or [Hand On] is pressed.
The start/stop commands are sent via the
control terminals and/or the serial communi-
cation.
The navigation keys on the LCP can be used
to control the drive. Stop commands, reset,
reversing, DC brake, and other signals applied
to the control terminals override local control.
1(1)
36.4kW
8 8
63
