Specifications
558
(22.0)
75
A
22 (0.8)
137
(5.4)
1
22 (0.8)
1
Gland plate

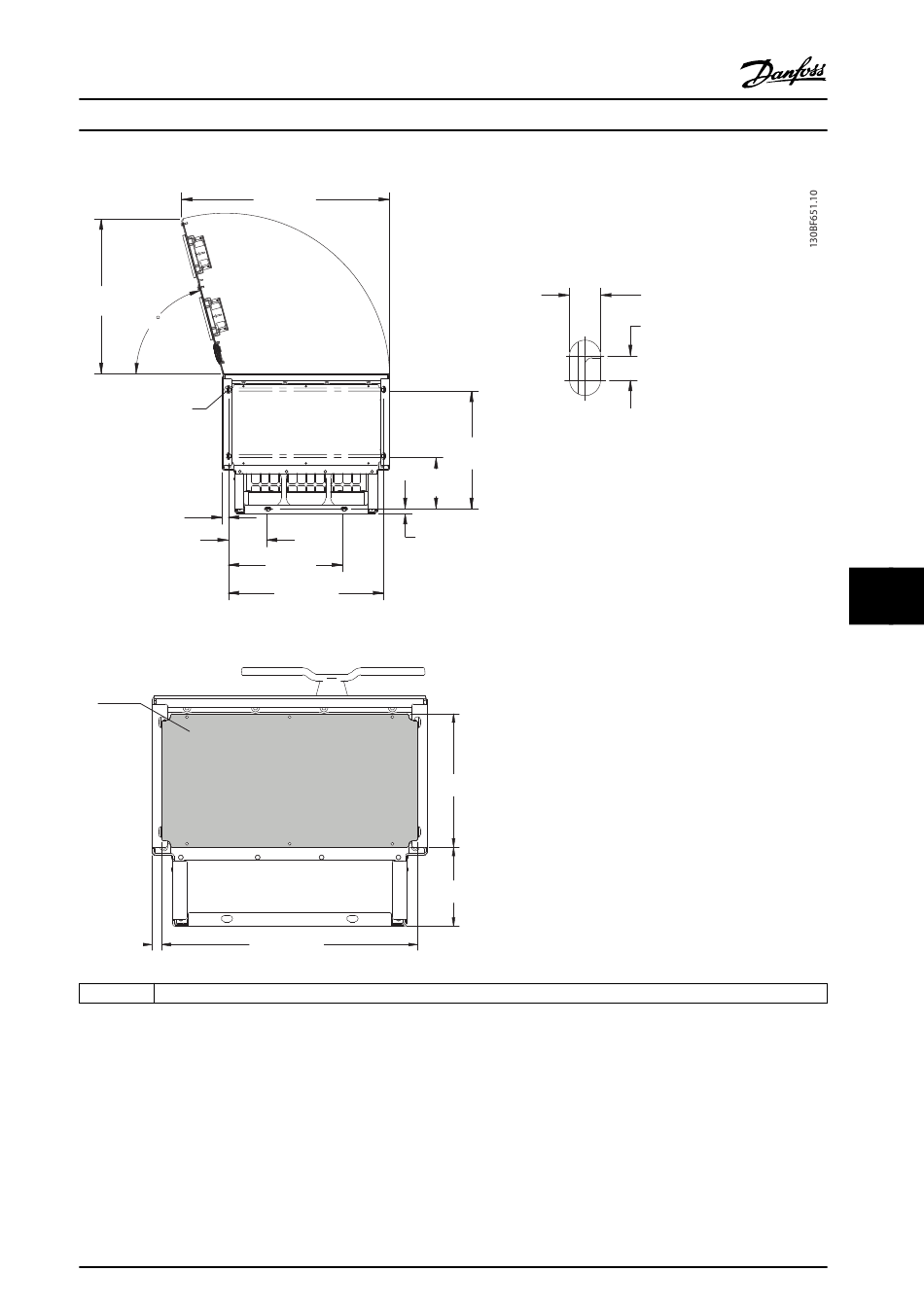

Illustration 9.5 Door Clearance and Gland Plate Dimensions for E1h
MG16P222
Operating Guide
750 (29.5)
184
(7.3)
17 (0.7)
412 (16.2)
560 (22.0)
293 (11.5)
173 (6.8)
560 (22.0)
