Product Overview

3.4 Interior View of Enclosures E3h and E4h

1
2
3
4
5
6
7
8
1 Load share/regeneration terminals (optional)
2 Control shelf (see Illustration 3.3)
3 Local control panel (LCP) cradle
4 RFI filter (optional)
5 Mains fuses (optional)
6 Mains terminals
7 Ground terminals

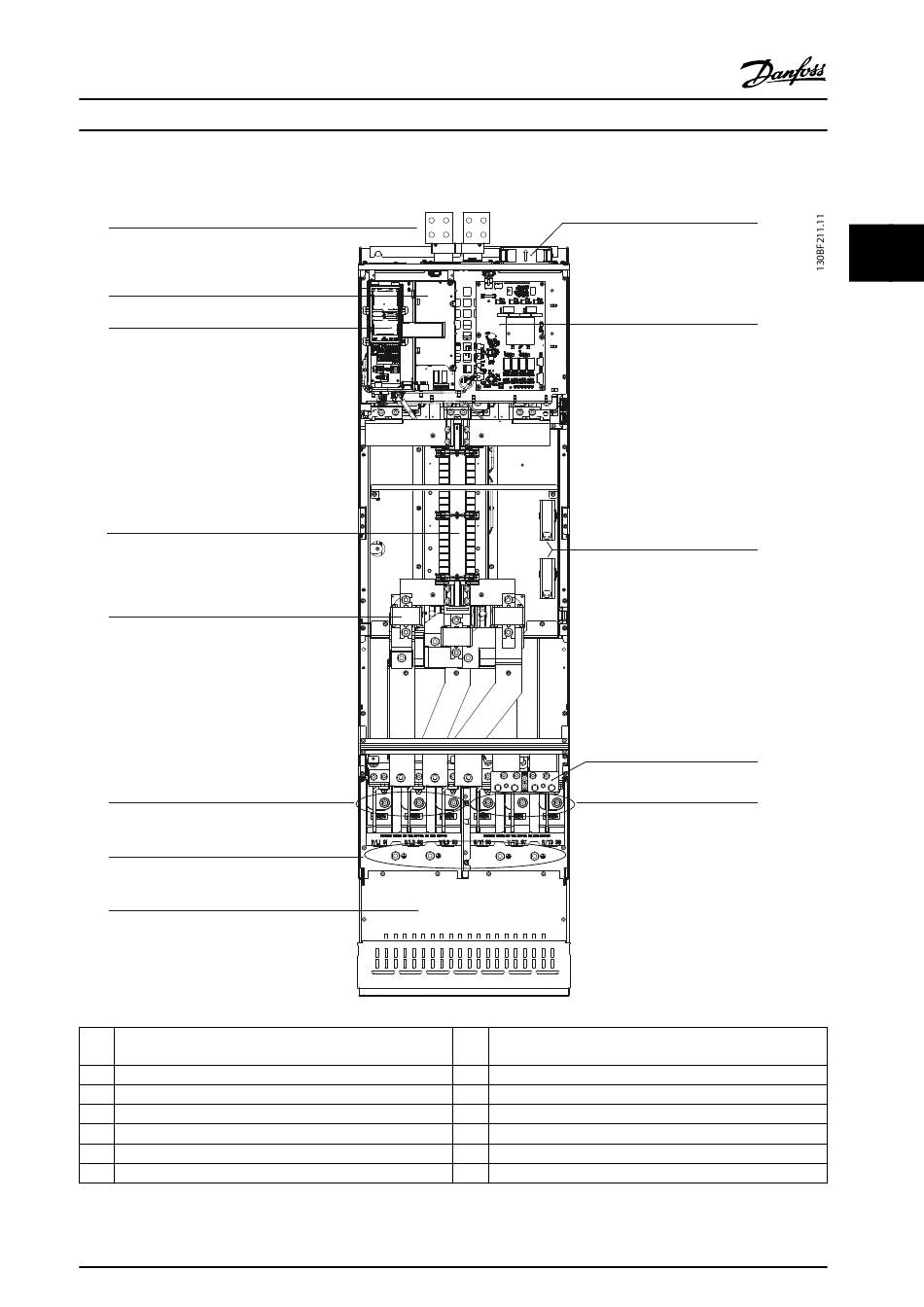

Illustration 3.2 Interior View of Enclosure E3h (Enclosure E4h is Similar)
MG16P222
Operating Guide
+ DC 89 - DC 88
FASTENER TORQUE: FASTENER TORQUE:
M10 19Nm (14FT-LB) M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
M12 35Nm (26FT-LB)
+ BRAKE 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
8 RFI shield termination (optional, but is standard when RFI
filter is ordered)
9 Fans (used to cool the front section of enclosure)
10 Fan power card
11 Space heater (optional)
12 Brake terminals (optional)
13 Motor terminals
– –
Danfoss A/S © 04/2018 All rights reserved.
- BRAKE 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
9
3 3
10
11
12
13
9
