9.8 Enclosure Dimensions

9.8.1 E1h Exterior Dimensions
2043
(80.4)
2002
(78.8)
9 9

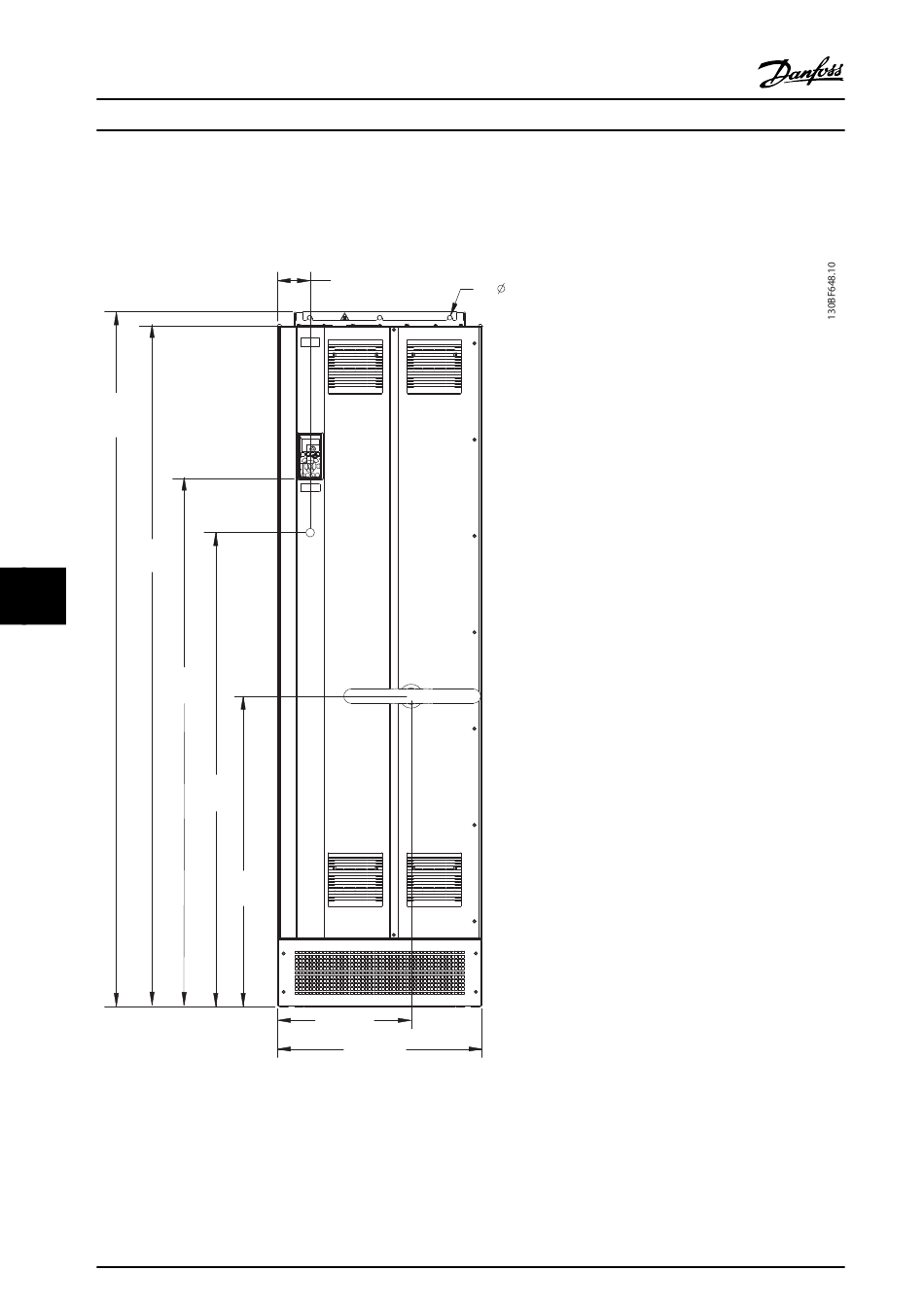

Illustration 9.2 Front View of E1h
88
22 (0.8)
1553
(61.1)
1393
(54.9)
912
(35.9)
393 (15.5)
