Mechanical Installation
4.8.2 Creating Cable Openings
The gland plate covers the bottom part of the drive
enclosure and must be installed to maintain the IP20/
Chassis protection rating. The gland plate consists of
plastic squares that can be cut out to provide cable access
to the terminals. See Illustration 4.7.
1. Remove the bottom panel and terminal cover.
See Illustration 4.8.
1a Detach the bottom panel by removing 4
T25 screws.
1b Remove 5 T20 screws that secure the
bottom of the drive to the top of the
terminal cover, and then pull the
terminal cover straight out.
2. Determine the size and position of the motor,
mains, and ground cables. Note their position and
measurements.
3. Based on the measurement and positions of the
cables, create openings in the plastic gland plate
by cutting out the necessary squares.
4. Slide the plastic gland plate (7) onto the bottom
rails of the terminal cover.
5. Tilt the front of the terminal cover downward
until the fastener points (8) rest on the slotted
drive brackets (6).
6. Make sure the side panels of the terminal cover
are on the outside track guide (5).
MG16P222
Operating Guide
7.
8.
9.
1
2

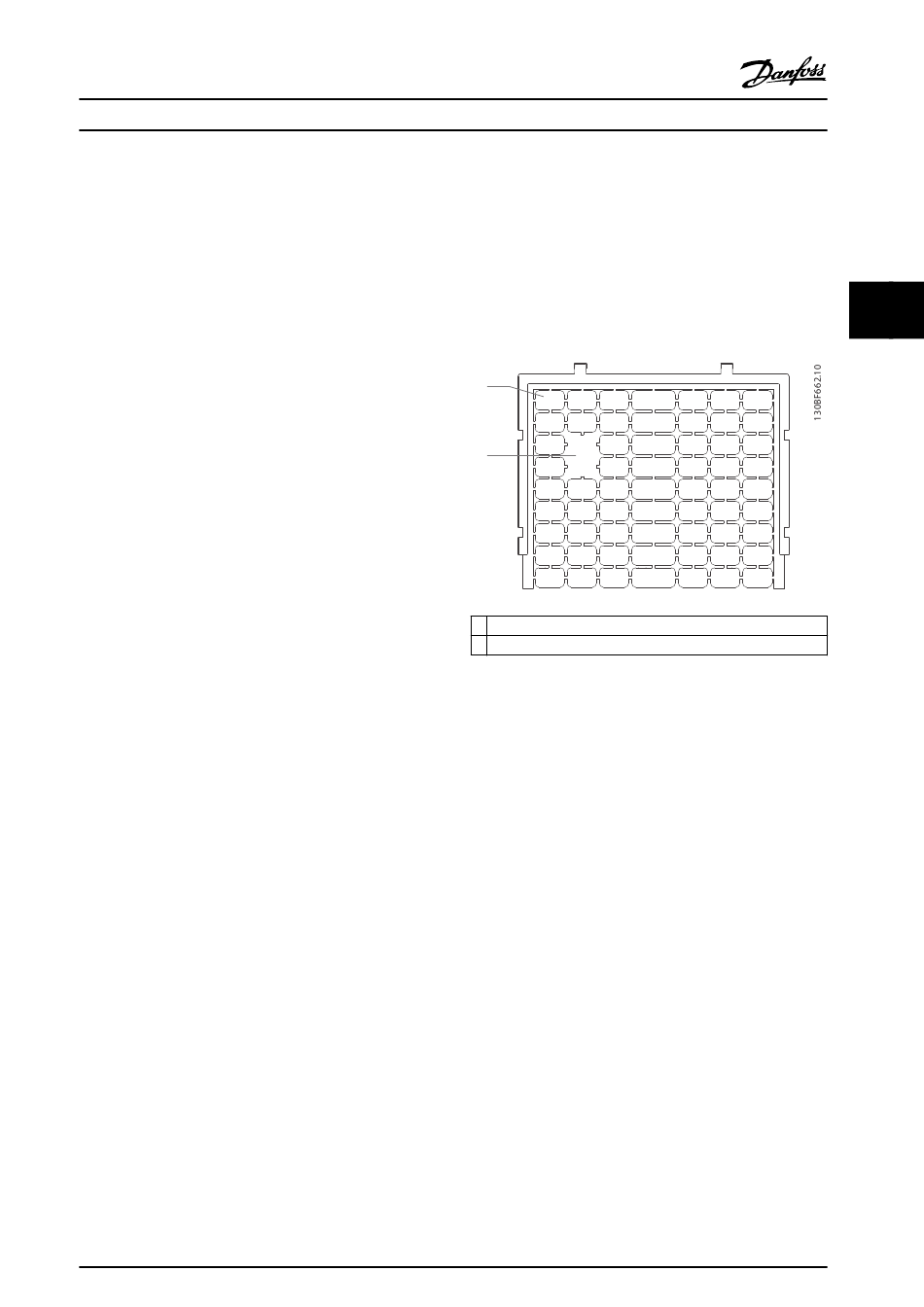

1 Plastic square
2 Squares removed for cable access
Illustration 4.7 Plastic Gland Plate
Danfoss A/S © 04/2018 All rights reserved.
Push the terminal cover until it is up against the
slotted drive bracket.
Tilt the front of the terminal cover upward until
the fastener hole in the bottom of the drive
aligns with the keyhole opening (9) in the
terminal. Secure with 2 T25 screws and torque to
2.3 Nm (20 in-lb).
Secure the bottom panel with 3 T25 screws and
torque to 2.3 Nm (20 in-lb).
