Product Overview

3.3 Interior View of Enclosures E1h and E2h

3 3
1
2
3
4
5
6
1 Control shelf (see Illustration 3.3)
2 Local control panel (LCP) cradle
3 RFI filter (optional)
4 Mains fuses (required for UL compliance, but otherwise
optional)
5 Mains terminals
6 RFI shield termination

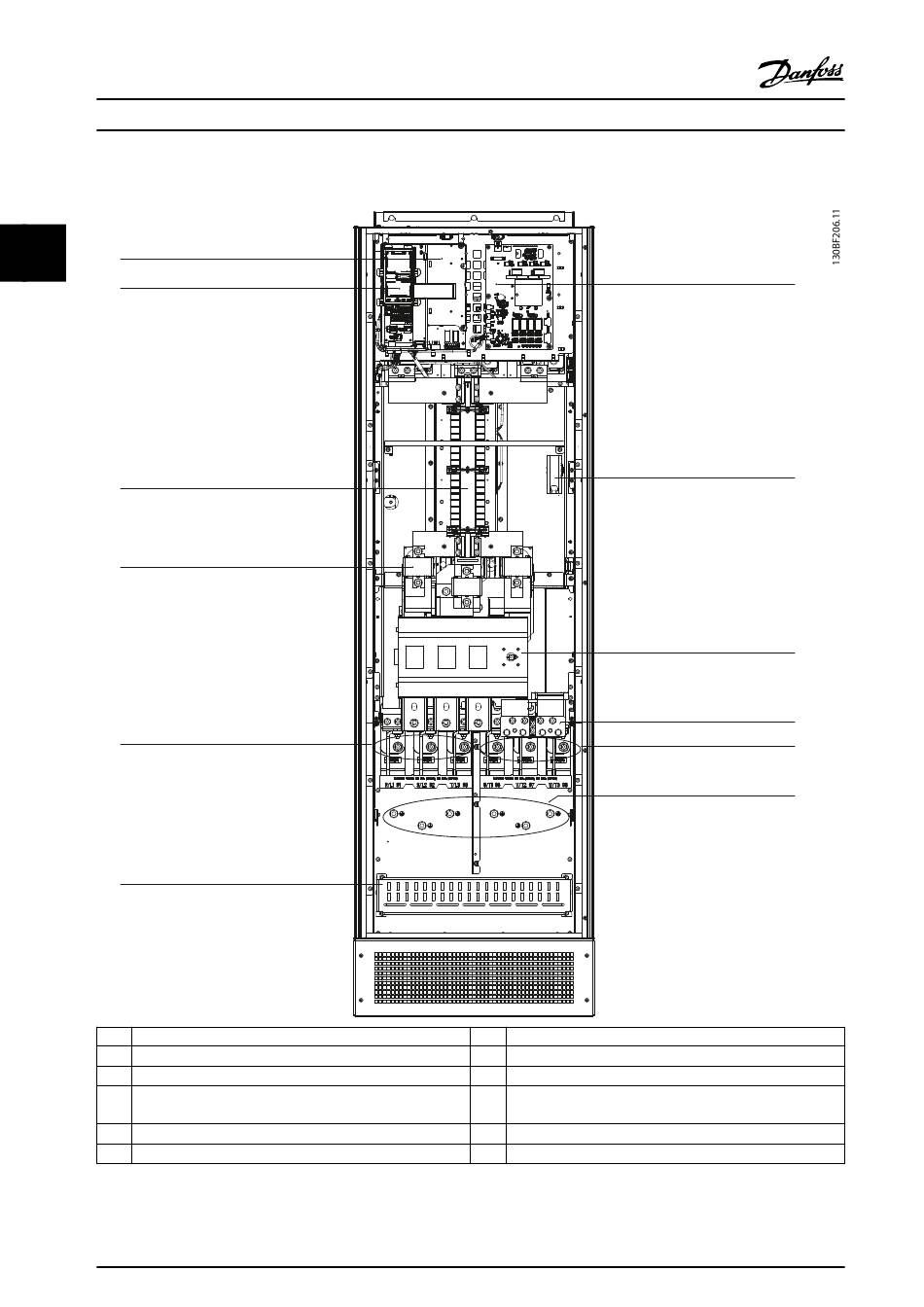

Illustration 3.1 Interior View of Enclosure E1h (Enclosure E2h is Similar)
8
VLT® Refrigeration Drive FC 103
+ REGEN 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
7 Fan power card
8 Space heater (optional)
9 Mains disconnect (optional)
10 Brake/regeneration terminals (optional)
11 Motor terminals
12 Ground terminals
Danfoss A/S © 04/2018 All rights reserved.
- REGEN 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
7
8
9
10
11
12
MG16P222
